ComfoAir Q600, comfoairq600, ST, CAQ600ST, CAST
Article no. 471502015

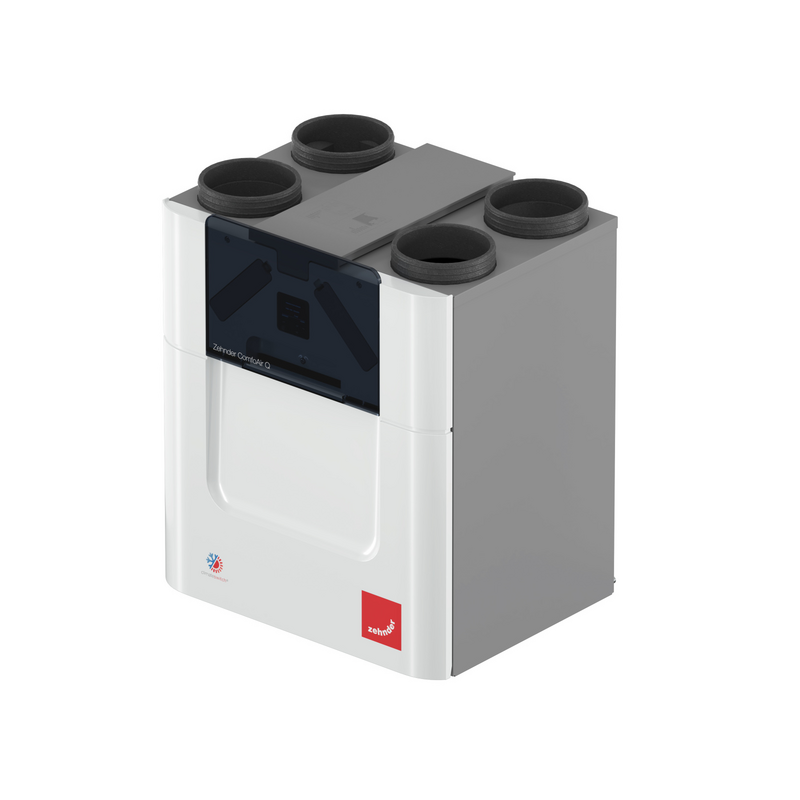

Zehnder ComfoAir Q350

    Declaration

    Modellkennung LLArtikel-Nr. LLLeistungserklärung LL
    CAQ350-STT-GB - Zehnder ComfoAir Q350471502015 1603044Q35010.pdf(47 KB)

    Steuerung LLEnergieeffizienzklasse LLEnergieeffizienz-Label LL
    Energy Label – Central demand control EU-label_CAQ350_471502015_A+.pdf(97 KB)
    Energy Label – Manual control EU-label_CAQ350_471502015_A.pdf(95 KB)
    Energy Label – Local demand control EU-label_CAQ350_471502015_A+.pdf(97 KB)
    Energy Label – Clock control EU-label_CAQ350_471502015_A.pdf(95 KB)

    Data Table

    LabelValue
    Catalogue number 471502015
    GTIN 8717573874359
    Production model COMFOAIR Q350 GB ST
    Air flow rate 350 m³/h
    Amperage 1.5 A
    Supply voltage 230 V
    Frequency 50 Hz
    Noise/Sound Level 40
    Energy class I A
    Energy class II A+
    Suitable for (extra) humidity (RH) sensor
    Frequency 50 Hz
    Connections residential side Insert-/duct end
    Energy efficiency class A+
    Voltage 230 V
    Frequency 50 Hz
    Energy efficiency class according to 1253/2014/EU A+
    Type of speed control Other
    Max. air volume at 100 Pa 350 m³/h
    Nominal duct diameter 160-190 mm
    Suitable for wall mounting
    With thermal overload protection
    Nominal duct diameter 160-190 mm
    Height 850 mm
    Suitable for zone controller
    With bypass
    Efficiency supply filter according to ISO 16890-1:2016 65 %
    Housing material Steel coated
    Suitable for ceiling mounting
    Max. air volume at 50 Pa 245 m³/h
    Number of phases 1
    Suitable for floor mounting
    Exhaust filter according to ISO 16890-1:2016 ISO Coarse
    With constant volume flow control
    With heating element
    Degree of protection (IP) IP40
    Width 725 mm
    Suitable for wired control unit
    Weight 46 kg
    Heat recovery by Cross-counter-flow unit
    Material heat exchanger Other
    Electrical connection Connecting cord with plug with protective contact
    Type of motor Electronically commutated (EC)
    Suitable for extra VOC sensor
    Suitable for central heating boiler connection
    Electrical connection Connecting cable with plug with protective contact
    Roof connection, top
    Depth 570 mm
    Roof connection, side
    Weight 46 kg
    With constant pressure control
    Type of frost protection Other
    Connections outdoor air side Insert-/duct end
    Max. air volume at 200 Pa 350 m³/h
    With wired control unit
    With internal humidity (RH) sensor
    Max. air volume at 150 Pa 350 m³/h
    Fuse size of the device 10 A
    Residential connection, left side
    With zone controller
    Residential connection, underside
    Thermal efficiency at 70 % air volume at 50 Pa 94 %
    Residential connection, top
    Suitable for (extra) carbon dioxide (CO2) sensor
    Residential connection, right side
    Efficiency exhaust filter according to ISO 16890-1:2016 65 %
    Suitable for wireless remote control
    Housing material Steel
    Voltage 230 V
    Width 725 mm
    Left/right orientation reversible
    Cos phi according to EPN standard 0.42
    Power consumption at max. air volume at 100 Pa 0.101 kW
    With digital display
    Type of motor Electronically commutated (EC)
    Depth 570 mm
    Housing material quality Other
    Height 850 mm
    Electrical connection Connecting cord with plug with protective contact
    With internal carbon dioxide (CO2) sensor
    Thermal efficiency according to EPN standard 94 %
    With volatile organic compound (VOC) sensor
    Power input according to EPN standard 0.086 kW
    Supporting protocol for Modbus
    Nominal duct diameter 160-190 mm
    Supply filter according to ISO 16890-1:2016 ISO Coarse
    Operation by app
    Voltage 230 V
    Fuse size of the device 10 A
