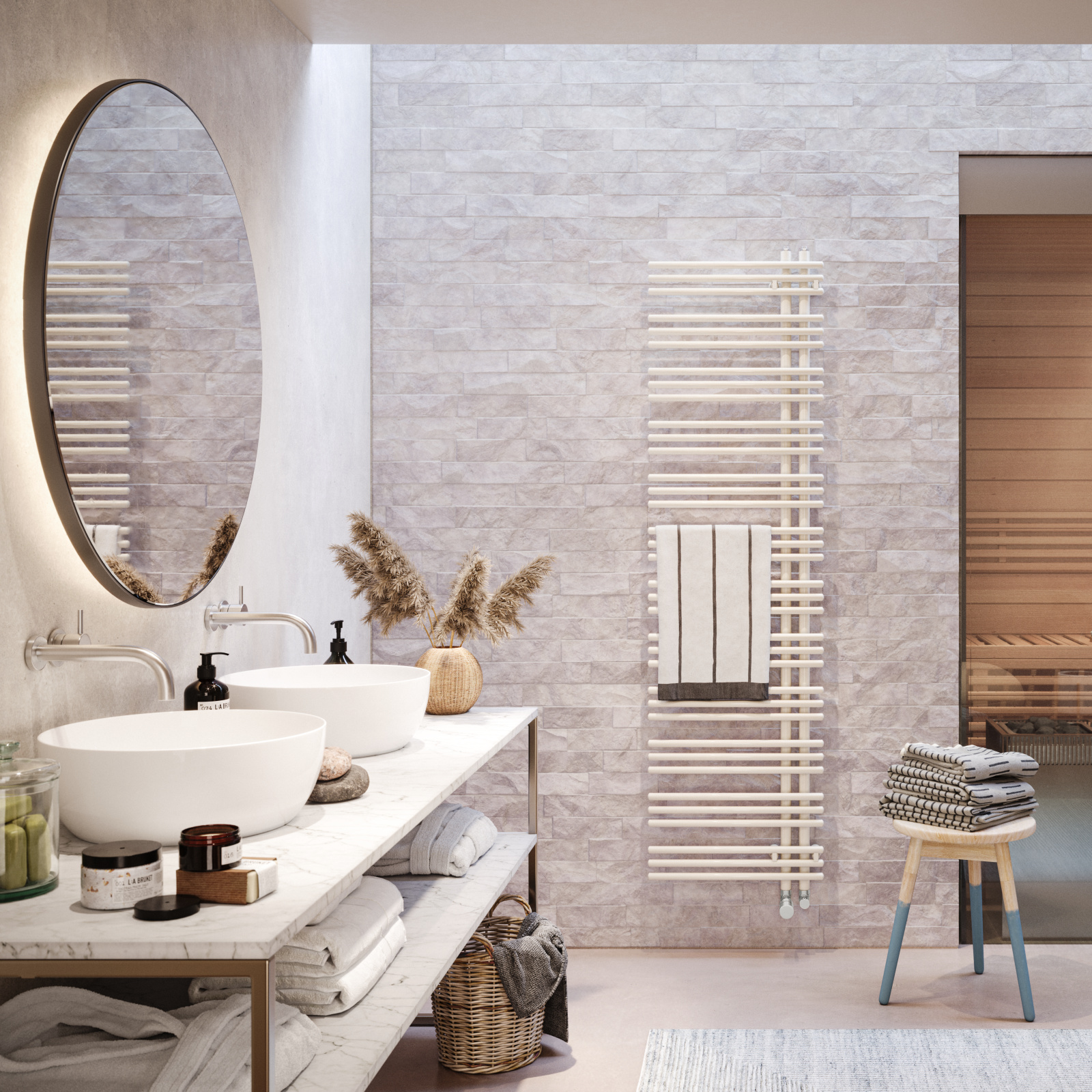

Yucca Asym,170-50,
YA, valve unit XE angle version chrome, thermostat SH chrome, wall mounting, bathroom, cut-out, cut-out, laterally open pipe arrangement, right, single layer, right hand version

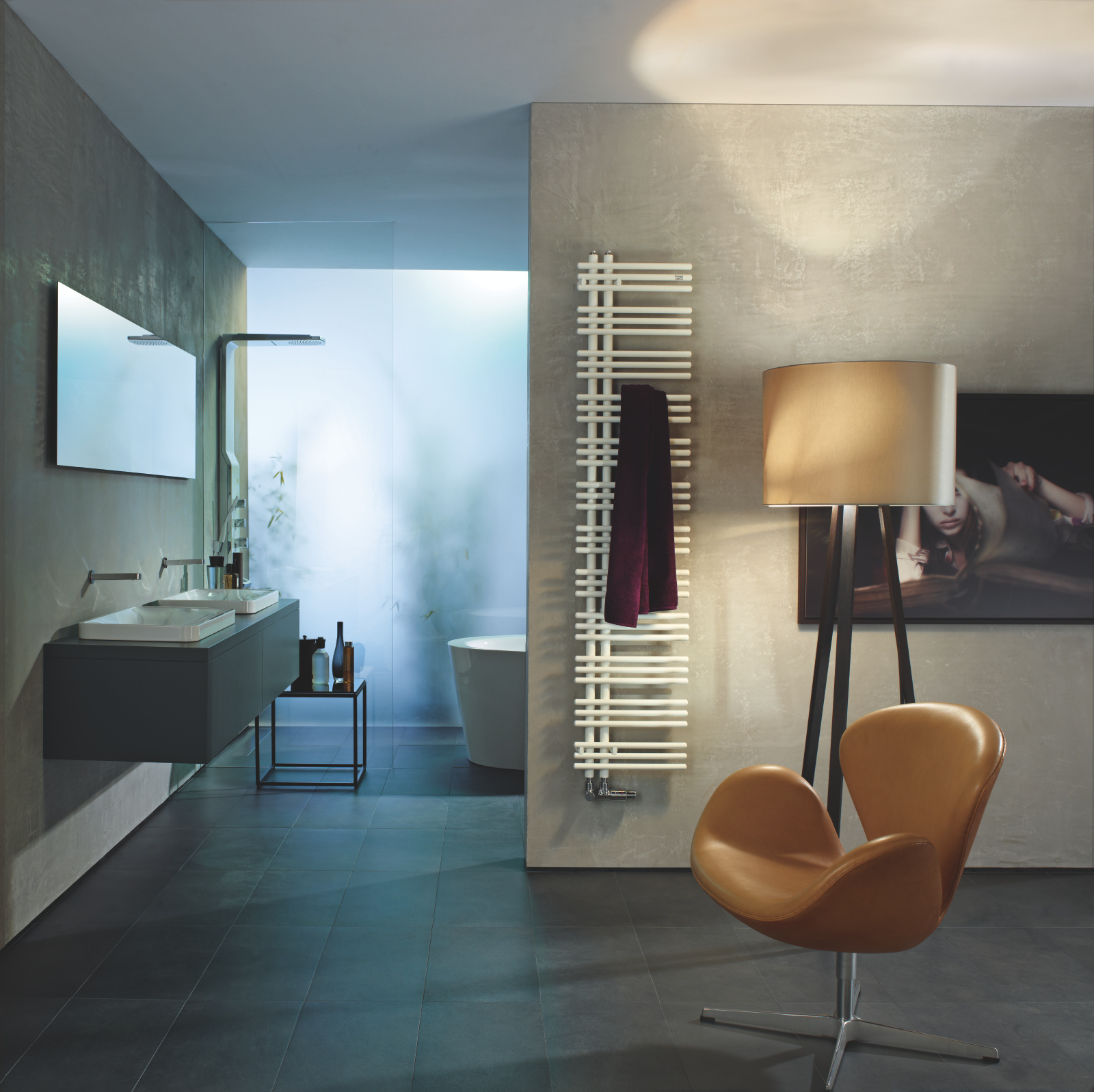

1700, YA, bathroom, urban, chair, towel, cut-out, laterally open pipe arrangement, right, single layer, right hand version

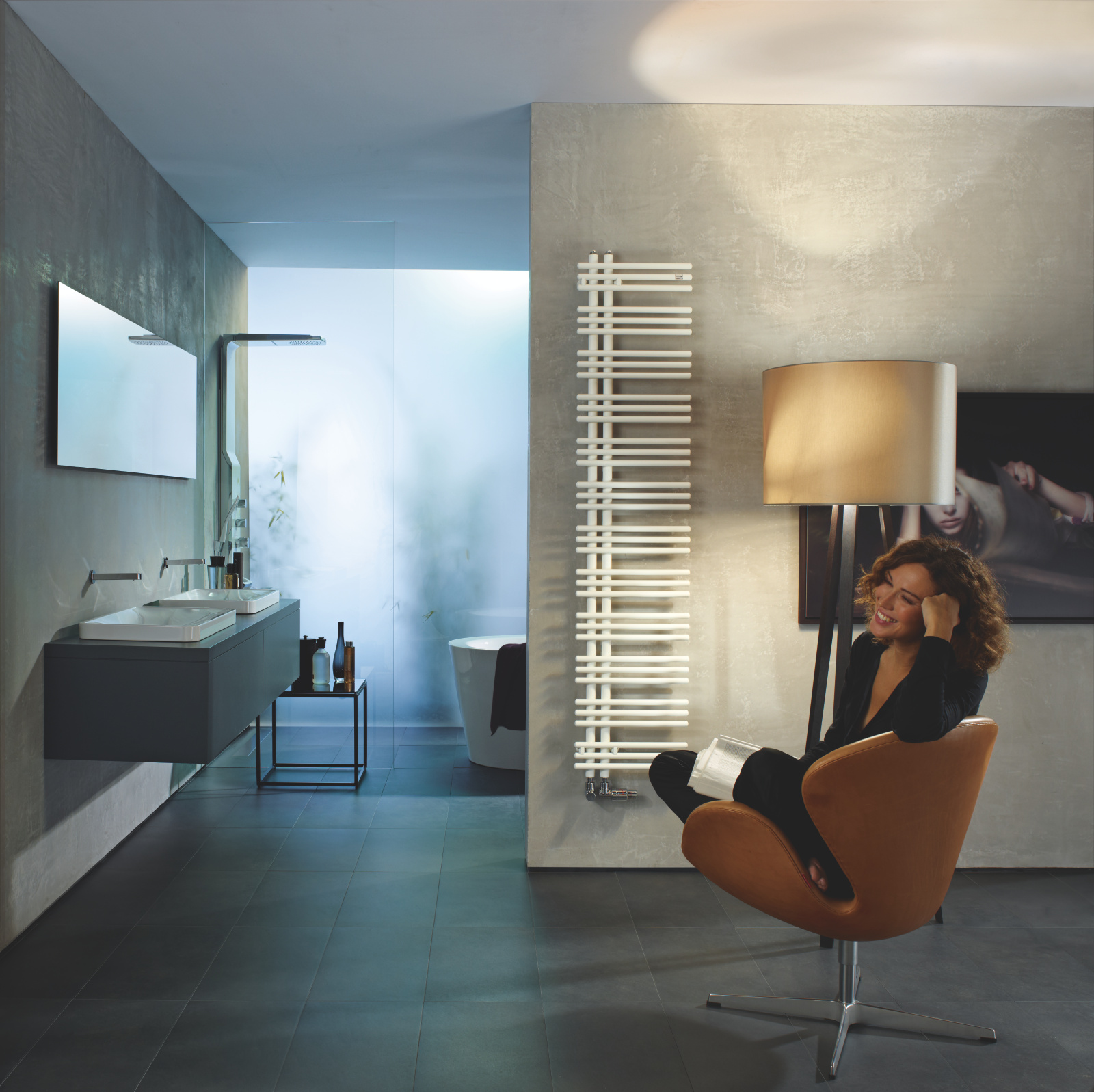

1700, YA, bathroom, urban, chair, woman, cut-out, laterally open pipe arrangement, right, single layer, right hand version
Decorative Radiators

Zehnder
Yucca Asym

Hydronic operation

    The best quality in both design and function. With its vertical tubes, which can be positioned left or right, Zehnder Yucca Asym creates a relaxed bathroom environment. Large towels can be conveniently hung from one side. The decorative radiator is also suitable as a room divider. Available in almost any colour and finish from the Zehnder colour chart.

    Benefits

    • Small radiator depth ideal for narrow rooms
    • Special solutions support a wide range of application, such as room divider
    • Light and seamless design enhances any room
    • Easy cleaning with the lambswool cleaning brush from Zehnder
    • Rounded edges offer added safety
    • Diverse range of models with header tubes as a left- or right-hand arrangement
    • Maximum surface temperature of 65 °C ensures increased safety (chrome-plated version)

    Colour System

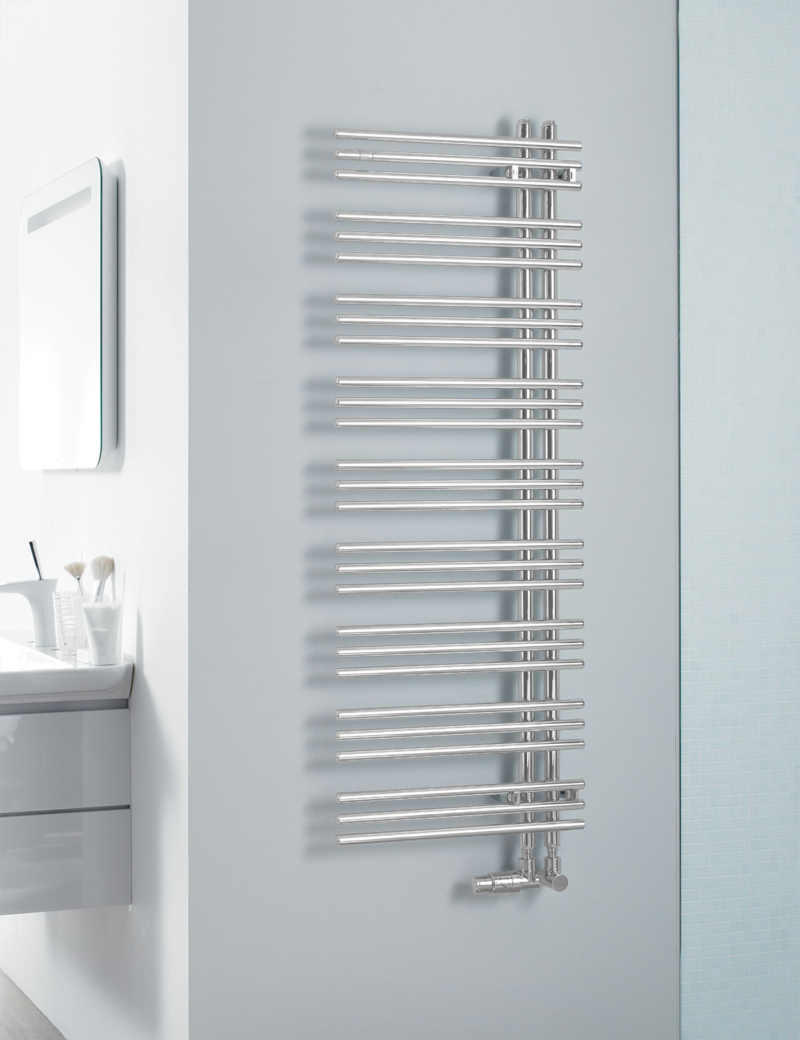

    Zehnder Yucca Asym - Hydronic operation
    Traffic White (9016* / RAL 9016)
    * These colours / surfaces are glossy, all others matt.
    Despite extreme care in the painting process of our radiators, slight colour deviations are possible, depending on the production series and compared to other colour carriers (ceramic, paper, metal, ...) as well as screen display.
    RAL and NCS are manufacturer's designations.

    Technical data

    Connection to hot water central heating system

    Painted version
    Model H L Heat output Power electric heating element
    75/65/20 °C 70/55/24 °C 55/45/24 °C 55/45/20 °C
    mm mm Watts Watts Watts Watts Watts
    Single-layer version
    YA-130-040 1304 378 430 305 185 223 300
    YA-170-040 1736 378 571 405 246 296 300
    YA-090-050 872 478 351 250 152 183 300
    YA-130-050 1304 478 517 367 223 268 300
    YA-170-050 1736 478 686 486 296 356 600
    YA-130-060 1304 578 599 425 258 311 600
    YA-170-060 1736 578 795 564 342 412 600
    Double-layer version
    YAD-130-040 1304 378 628 443 267 322 600
    YAD-170-040 1736 378 825 580 348 421 600
    YAD-130-050 1304 478 763 538 324 392 600
    YAD-170-050 1736 478 1002 705 423 512 900
    YAD-130-060 1304 578 893 630 380 458 600
    YAD-170-060 1736 578 1173 825 495 599 900
    H = height, L = length
    75/65/20 = Nominal heat output according to EN 442 ΔT 50
    Chrome-plated version
    Model H L Heat output Power electric heating element
    75/65/20 °C 70/55/24 °C 55/45/24 °C 55/45/20 °C
    mm mm Watts Watts Watts Watts Watts
    Single-layer version
    YAC-130-040 1304 378 308 217 130 157 300
    YAC-170-040 1736 378 408 286 171 207 300
    YAC-090-050 872 478 254 179 108 130 300
    YAC-130-050 1304 478 371 261 157 189 300
    YAC-170-050 1736 478 492 345 206 250 300
    YAC-130-060 1304 578 432 304 182 221 300
    YAC-170-060 1736 578 572 401 240 291 600
    H = height, L = length
    75/65/20 = Nominal heat output according to EN 442 ΔT 50
