Ribbon Hydronic,  RB-170-060, Anthracite , bathroom
Coloured valves, coloured valve, 50 mm valve, New Colour World
Decorative Radiators

Zehnder
Ribbon

Hydronic operation

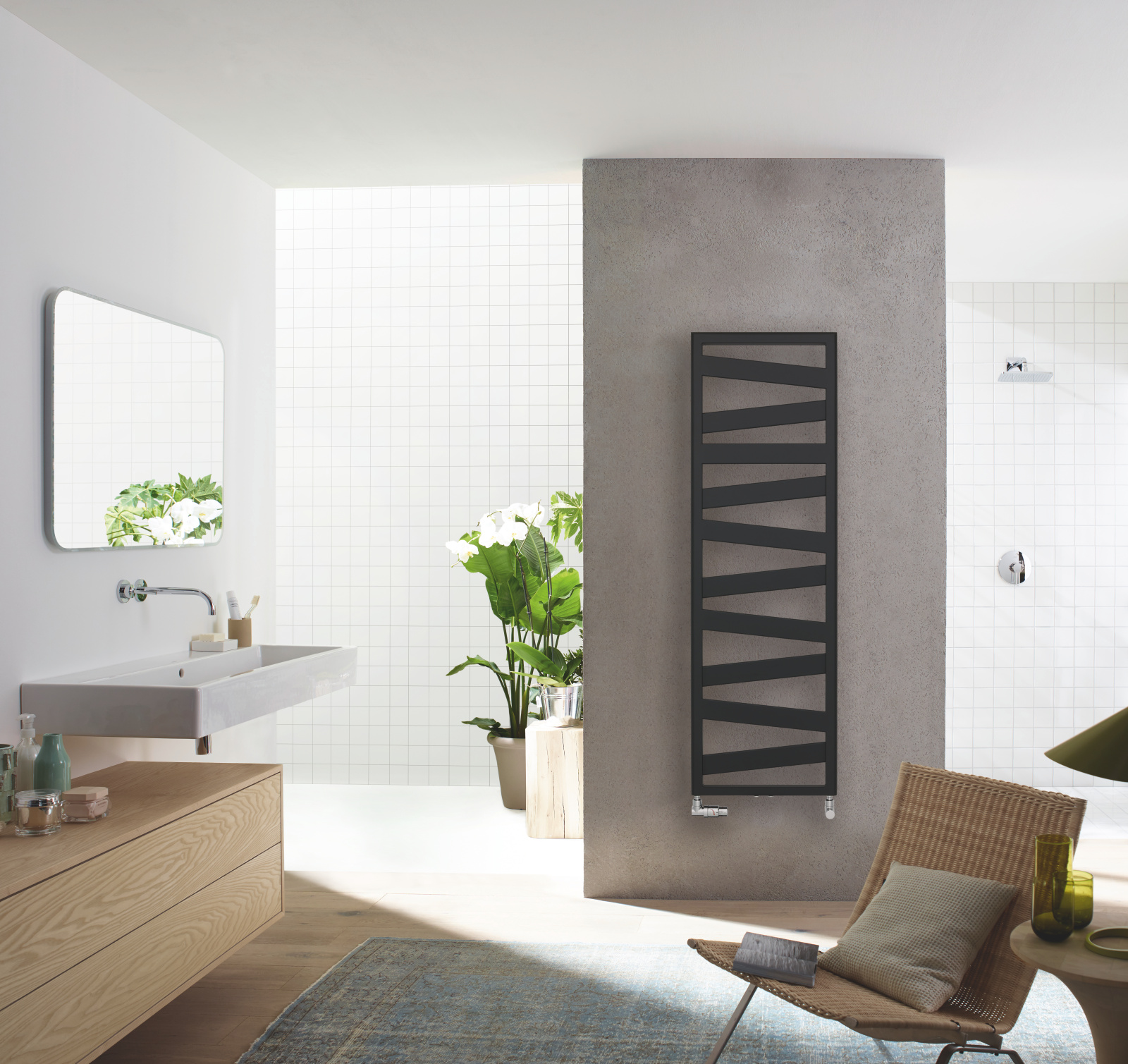

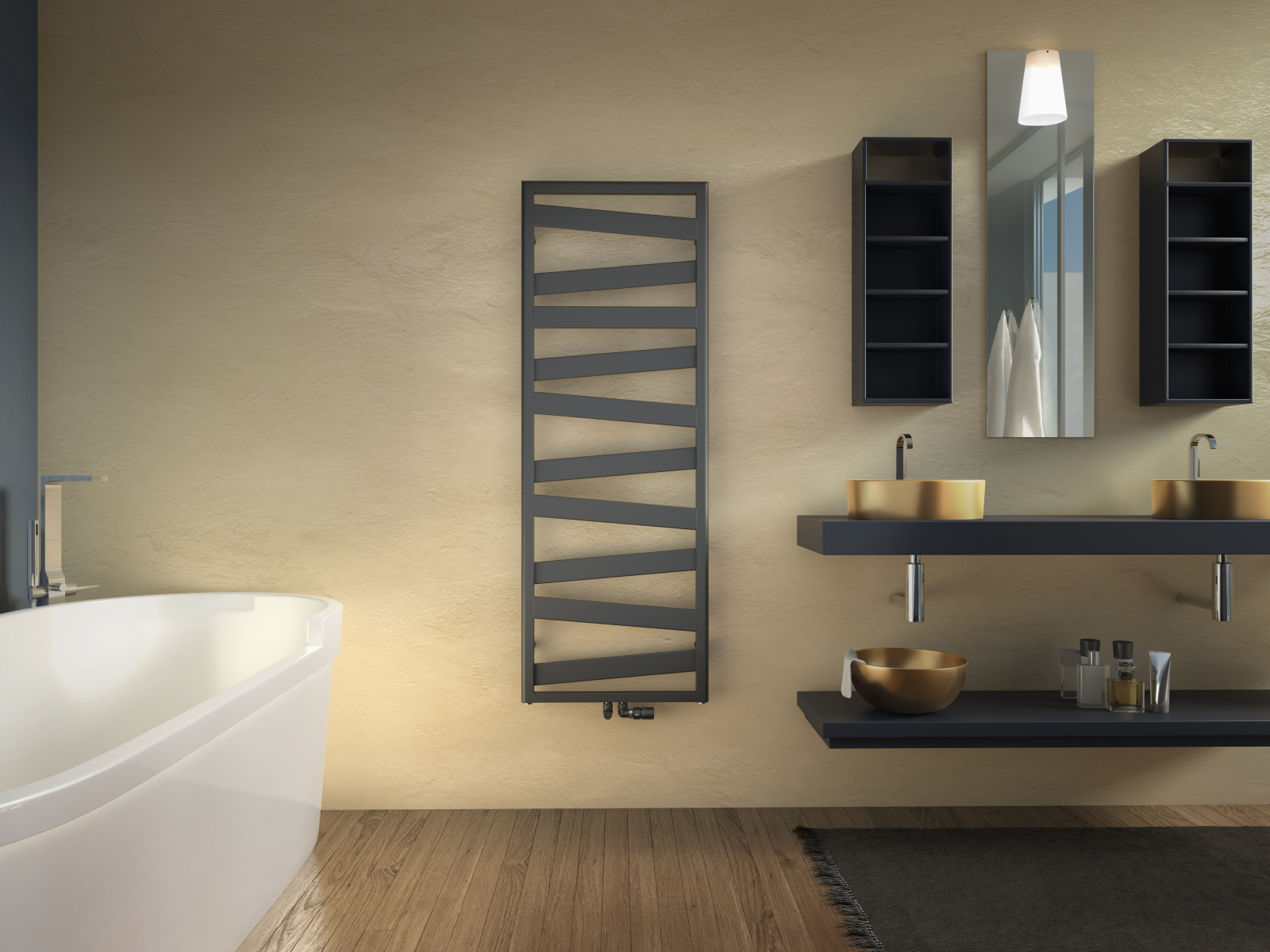

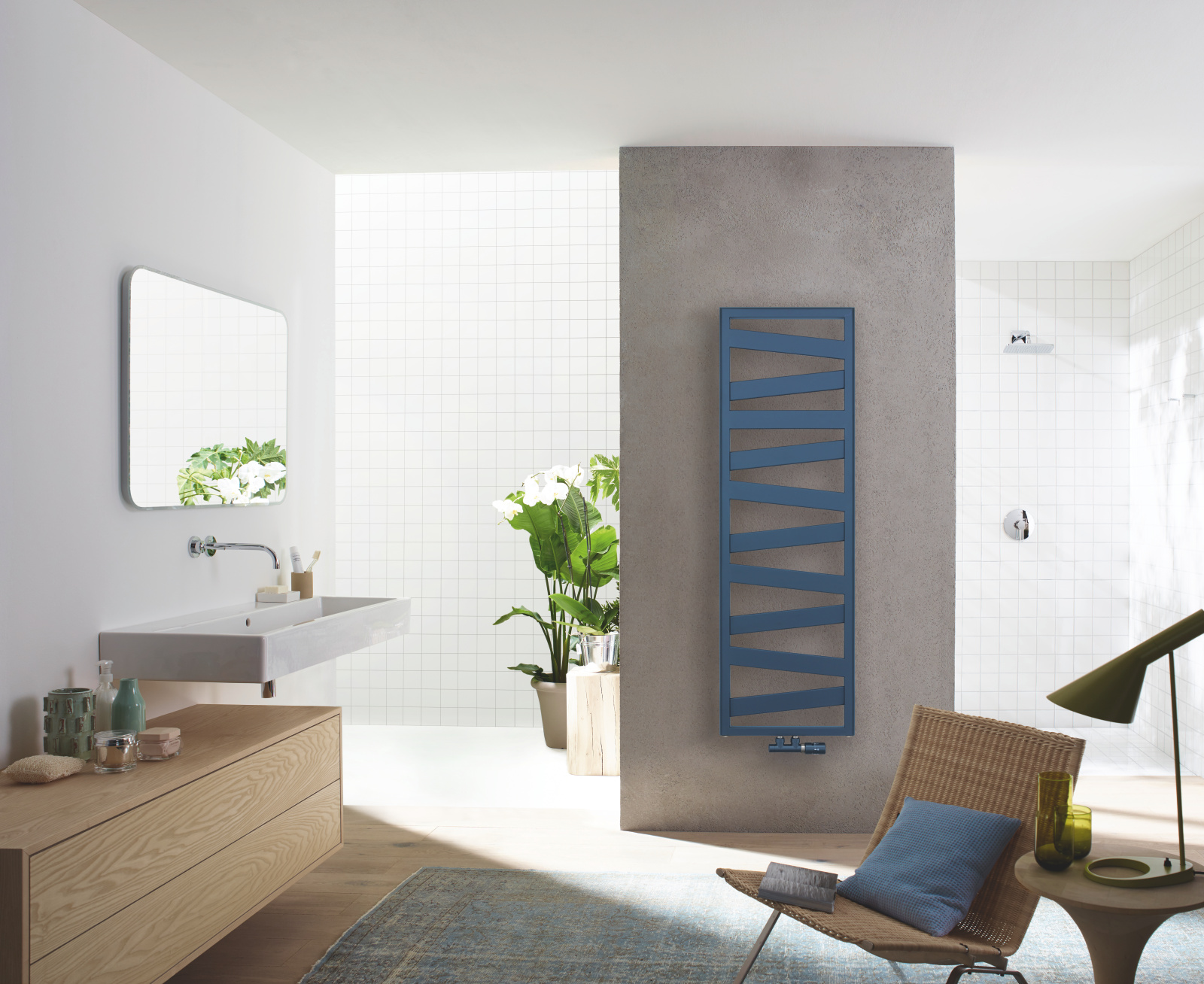

    Like a steel band that wraps around the bathroom radiator, Zehnder Ribbon impresses with its modern design and practicality. Its oblique rungs are inspired by architectural structures with multiple levels. Large spaces provide the whole family with plenty of room to hang several towels. This linking of form and function transforms Zehnder Ribbon into a radiator that invites comfort and class into the bathroom. Available in any colour and finish from the Zehnder colour chart.

    Decorative Radiators

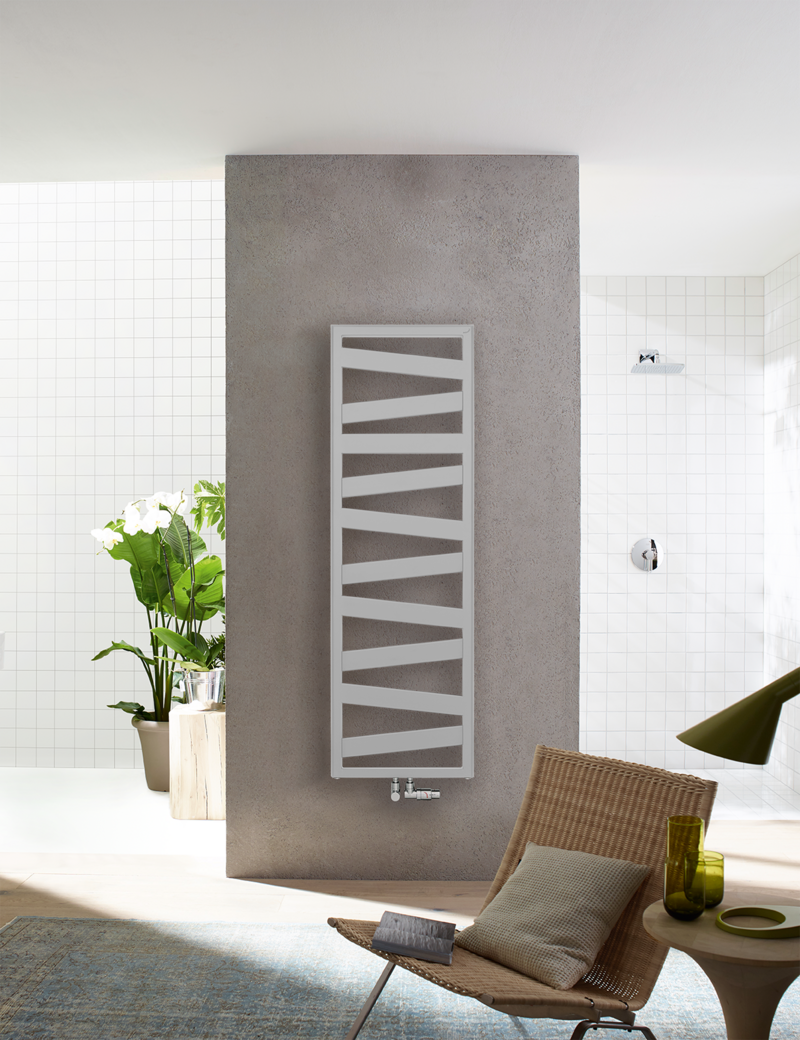

    Zehnder Ribbon - Hydronic operation

    We also offer the following technologies

    Electric operation

    Benefits

    • Modern design with diagonal flat tubes
    • Perfect for drying several towels – ideal for families
    • Ample spaces between tubes make cleaning easy

    Hydronic operation

    • Flexible installation due to 50 mm centre connections
    • Flexible installation through right and left connections

    Colour System

    Zehnder Ribbon - Hydronic operation
    Traffic White (9016* / RAL 9016)
    * These colours / surfaces are glossy, all others matt.
    Despite extreme care in the painting process of our radiators, slight colour deviations are possible, depending on the production series and compared to other colour carriers (ceramic, paper, metal, ...) as well as screen display.
    RAL and NCS are manufacturer's designations.

    Technical data

    Connection to hot water central heating system

    Chrome-plated version
    Model H L Heat output
    75/65/20 °C 70/55/24 °C 55/45/24 °C 55/45/20 °C
    mm mm Watts Watts Watts Watts
    RBC-100-050 965 500 261 187 114 137
    RBC-130-050 1266 500 327 235 142 171
    RBC-160-050 1567 500 393 282 171 205
    RBC-180-050 1823 500 461 330 199 240
    H = height, L = length
    75/65/20 = Nominal heat output according to EN 442
    Painted version
    Model H L Heat output Power electric heating element
    75/65/20 °C 70/55/24 °C 55/45/24 °C 55/45/20 °C
    mm mm Watts Watts Watts Watts Watts
    RB-100-050 965 500 398 288 177 211 300
    RB-130-050 1266 500 509 368 227 271 300
    RB-160-050 1567 500 621 450 277 330 600
    RB-180-050 1823 500 723 522 320 383 600
    H = height, L = length
    75/65/20 = Nominal heat output according to EN 442
