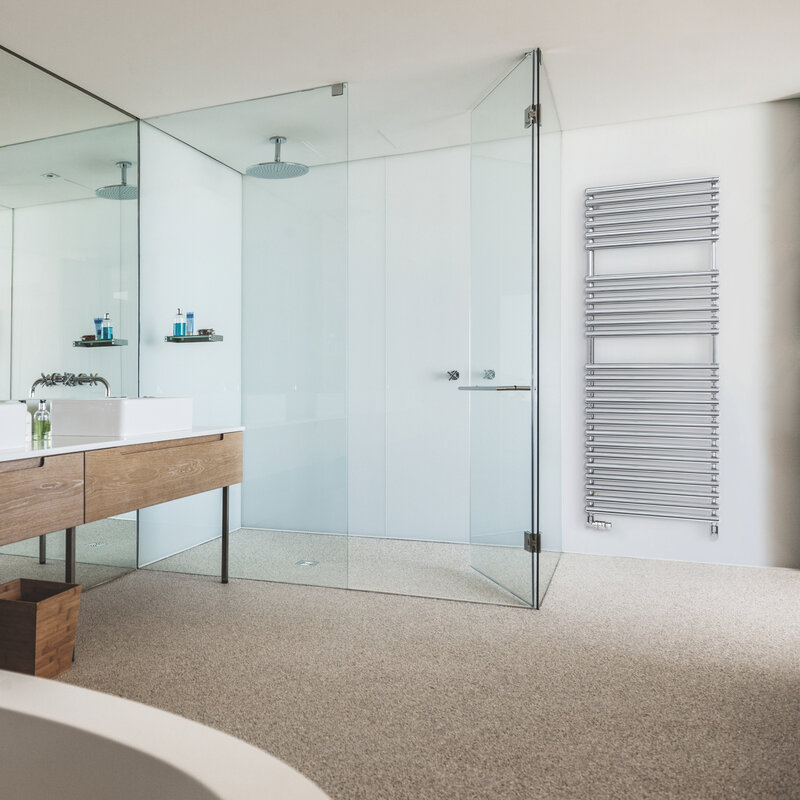

Rendering Zehnder Ovida Decorative radiator
Decorative Radiators

Zehnder
Ovida

Hydronic operation

    Cosy warmth meets modern design. The generous spaces between the sets of tubes of Zehnder Ovida make it easy to hang towels and create more comfort. Sophisticated tube-on-tube construction creates a relaxed feel. Available in almost any colour and finish from the Zehnder colour chart.

    Benefits

    • Cross-connected tubes lend relaxed look

    • Available as single or double-layered versions, offering the right solution for different output requirements

    • Generous spaces between tubes in the single-layer model convenient for hanging towels

    • Ample spaces between the tubes make cleaning easy

    • Brushed stainless steel version ensures resistance to corrosion

    Hydronic operation

    • Flexible installation through right and left connections

    • Flexible installation due to 50 mm centre connections

    • Available with Zehnder Vario fitting for an unobtrusive and elegantly hidden connection system

    Technical data

    Connection to hot water central heating system

    Painted version
    Model H L Heat output
    75/65/20 °C 70/55/24 °C 55/45/20 °C 55/45/24 °C
    mm mm W W W W
    Double-layer version
    OVSD-080-045 796 446 509 366 268 224
    OVSD-120-045 1196 446 745 534 389 325
    OVSD-150-045 1556 446 954 685 499 416
    OVSD-080-050 796 496 566 408 299 250
    OVSD-120-050 1196 496 829 597 436 364
    OVSD-150-050 1556 496 1061 765 560 468
    OVSD-185-050 1876 496 1264 911 666 557
    OVSD-080-060 796 596 681 494 363 305
    OVSD-120-060 1196 596 996 721 530 444
    OVSD-150-060 1556 596 1276 929 686 576
    OVSD-185-060 1876 596 1522 1109 819 689
    OVSD-080-075 796 746 853 623 462 389
    OVSD-120-075 1196 746 1248 912 676 569
    H = height, L = length
    75/65/20 = Nominal heat output according to EN 442
    Chrome-plated version
    Model H L Heat output
    75/65/20 °C 70/55/24 °C 55/45/20 °C 55/45/24 °C
    mm mm W W W W
    Single-layer version
    OVSC-080-045 796 446 248 177 128 107
    OVSC-120-045 1196 446 366 262 190 158
    OVSC-150-045 1556 446 475 338 244 202
    OVSC-080-050 796 496 273 195 141 117
    OVSC-120-050 1196 496 402 288 209 174
    OVSC-150-050 1556 496 523 372 269 223
    OVSC-185-050 1876 496 635 454 330 274
    OVSC-080-060 796 596 322 230 167 139
    OVSC-120-060 1196 596 475 341 248 207
    OVSC-150-060 1556 596 617 439 318 264
    OVSC-185-060 1876 596 749 536 390 324
    OVSC-080-075 796 746 394 282 204 170
    OVSC-120-075 1196 746 581 417 304 254
    H = height, L = length
    75/65/20 = Nominal heat output according to EN 442
