Decorative Radiators

Zehnder
Folio

Hydronic operation

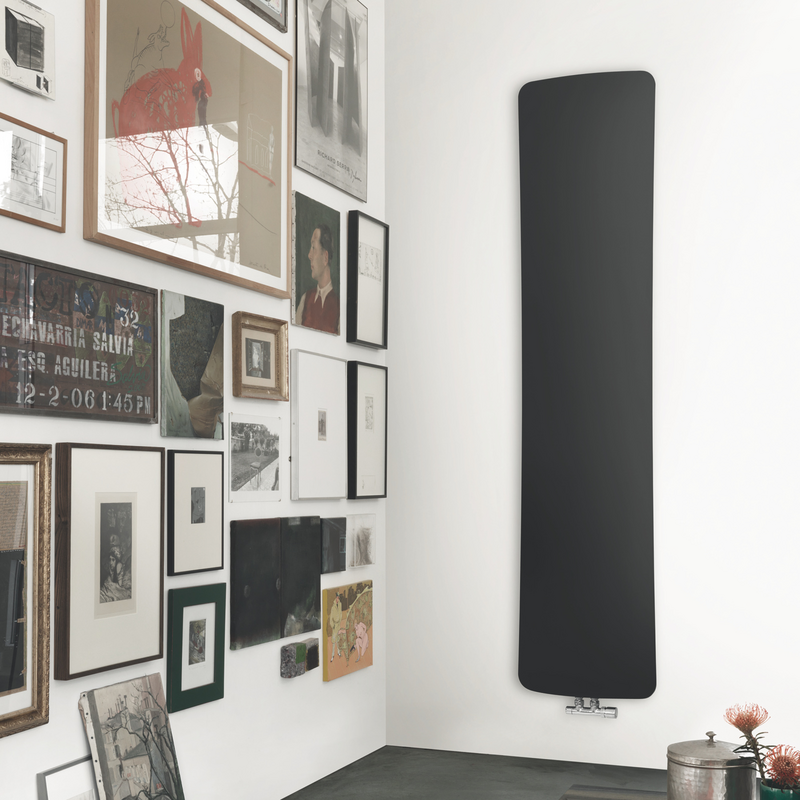

    With an impressive flat surface, full closed edging and gently tapered silhouette – Folio from the Zehnder Studio Collection is highly appealing with its unsually light appearance. The design of this radiator, which has a projection of only 16 millimetres, has only been made possible by the development of innovative design elements and materials. The striking flat shape of Zehnder Folio is a result of innovative heating technology. The material and colour can be selected to make the radiator harmoniously blend into or create a pleasing contrast to your interior design concept. The oak, wenge, high-grade Macassar ebony or anodised aluminium finishes allow the heat to flow into the room elegantly and efficiently. The Zehnder Folio Belt version comes with one or two towel rails, whilst also providing maximum style and comfort to any bathroom.

    Decorative Radiators

    Zehnder Folio - Hydronic operation

    We also offer the following technologies

    Electric operation

    Benefits

    • Compact design and closed edge all round
    • Vertical model suitable for living areas
    • Folio Belt bathroom version with one or two chrome-plated towel rails, depending on the height
    • Available either with conventional connections or with a completely revised and newly a developed integrated valve design
    • Available in the full range of colours in the Zehnder colour chart or with chrome plating
    • Optionally available with exclusive special surfaces
    • Available with programmable remote control for operation on either central heating system or electric only operation

    Technical data

    Connection to hot water central heating system

    Vertical version
    Model H L Heat output
    75/65/20 °C 70/55/24 °C 55/45/24 °C 55/45/20 °C
    mm mm Watts Watts Watts Watts
    FZV-180-042 1796 441 614 449 281 333
    FZV-180-052 1796 540 762 556 347 412
    FZV-180-062 1796 640 912 664 413 491
    FZV-180-072 1796 740 1064 773 479 571
    FZV-200-042 1956 445 651 478 300 356
    FZV-200-052 1956 545 807 591 370 439
    FZV-200-062 1956 644 964 704 440 522
    FZV-200-072 1956 744 1123 819 509 605
    H = height, L = length
    75/65/20 = Nominal heat output according to EN 442
