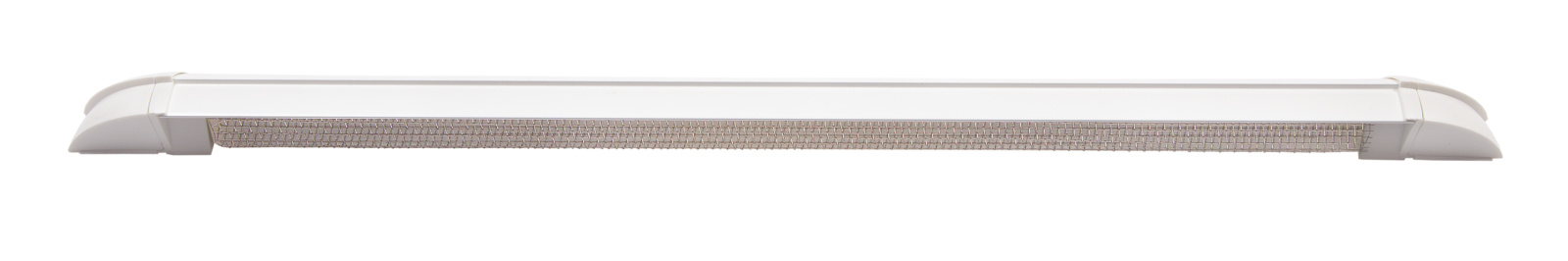

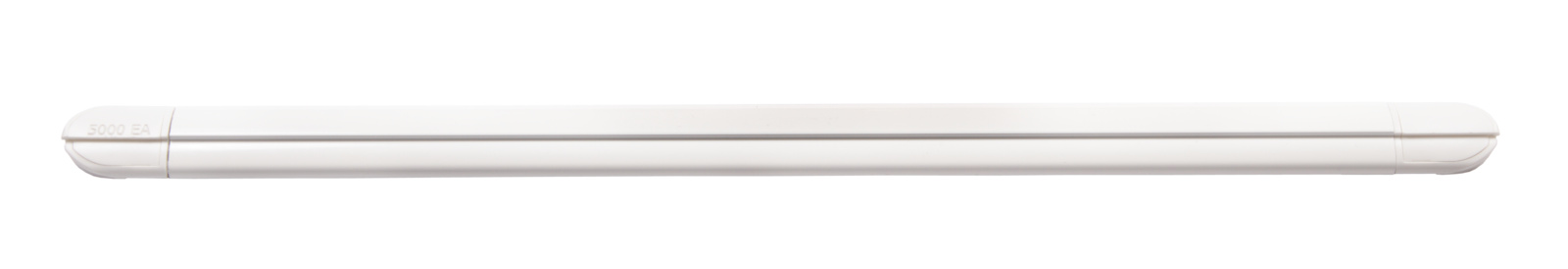

Cut-Out Zehnder EA Acoustic Vent Comfortable indoor ventilation Front view
Cut-Out Zehnder EA Acoustic Vent Comfortable indoor ventilation Front view
Cut-Out Zehnder EA Acoustic Vent Comfortable indoor ventilation Front view
Acoustic

Zehnder
EA Acoustic Vent

    The EA Acoustic Vent is the smallest through frame acoustic window ventilator on the market with performances up to 45dB, making it an ideal solution for both new build and refurbishment projects where dwellings have external noise issues or planning restrictions.



    Installation is designed to be simple and efficient. Begin by preparing the window frame, ensuring the slot sizes are correctly set. The acoustic components can then be securely fixed in place using the provided self-tapping screws, before completing the process by installing the canopy and vent with standard pyramid vent screws.

    Benefits

    • Available in two sizes offering a range of performances from 2500mm2 - 5000mm² EA.

    • Installation routing of only 13mm.

    • Modular acoustic components offer a range of acoustic performances and flexible installation options.

    • Excellent sound attenuation ranging from Dn,e,w 39dB to 45dB when in the open position.

    • Aesthetically pleasing, easy to open / control design, provides excellent airtightness with its upward air deflection, reducing the risk of draughts.

    • Manufactured from Aluminium Alloy.

    • Readily available in white or anthracite grey, they can also be provided in any RAL colour via request.

    • Fully accredited - The EA Acoustic Vent has been independently tested at a third-party accredited test house.
