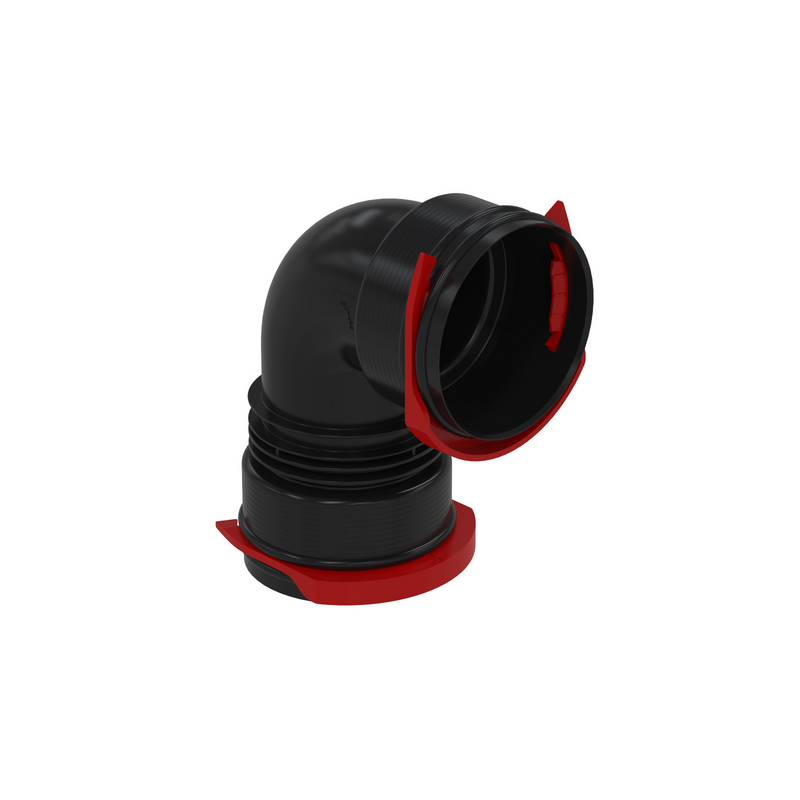

ComfoFit bend DN90, RapidLock Connector, for ComfoTube 90, 90°, black, polymer
Article no. 990322153

Zehnder ComfoTube ø 90mm, 90° bend

  • Rapid installation with Zehnder RapidLock®
  • Compact 90° bend for flexible design
  • Designed for prefab efficiency

Data Table

LabelValue
Catalogue number 990322153
GTIN 7613367052716
Material quality duct Polypropylene (PP)
Connection 2 Insert end
Insert length 50 mm
Anti-bacterial treatment
With push-on clamp
Model Uninsulated duct
Perforated inner wall
Outside colour Black
Air tightness class according to EN 1751 D
Antistatic version
Outer surface protection Untreated
With push-on profile
Production method Seamless
Working length connection 1 146 mm
Embeddable in concrete
Bend radius (number x D) 77
Nominal duct diameter 90 mm
With pre-mounted seal
Working length connection 2 105.5 mm
Connection 1 Insert end
Inner surface protection Untreated
Bend model Smooth bend
Bend angle 90 °
Material duct Plastic
