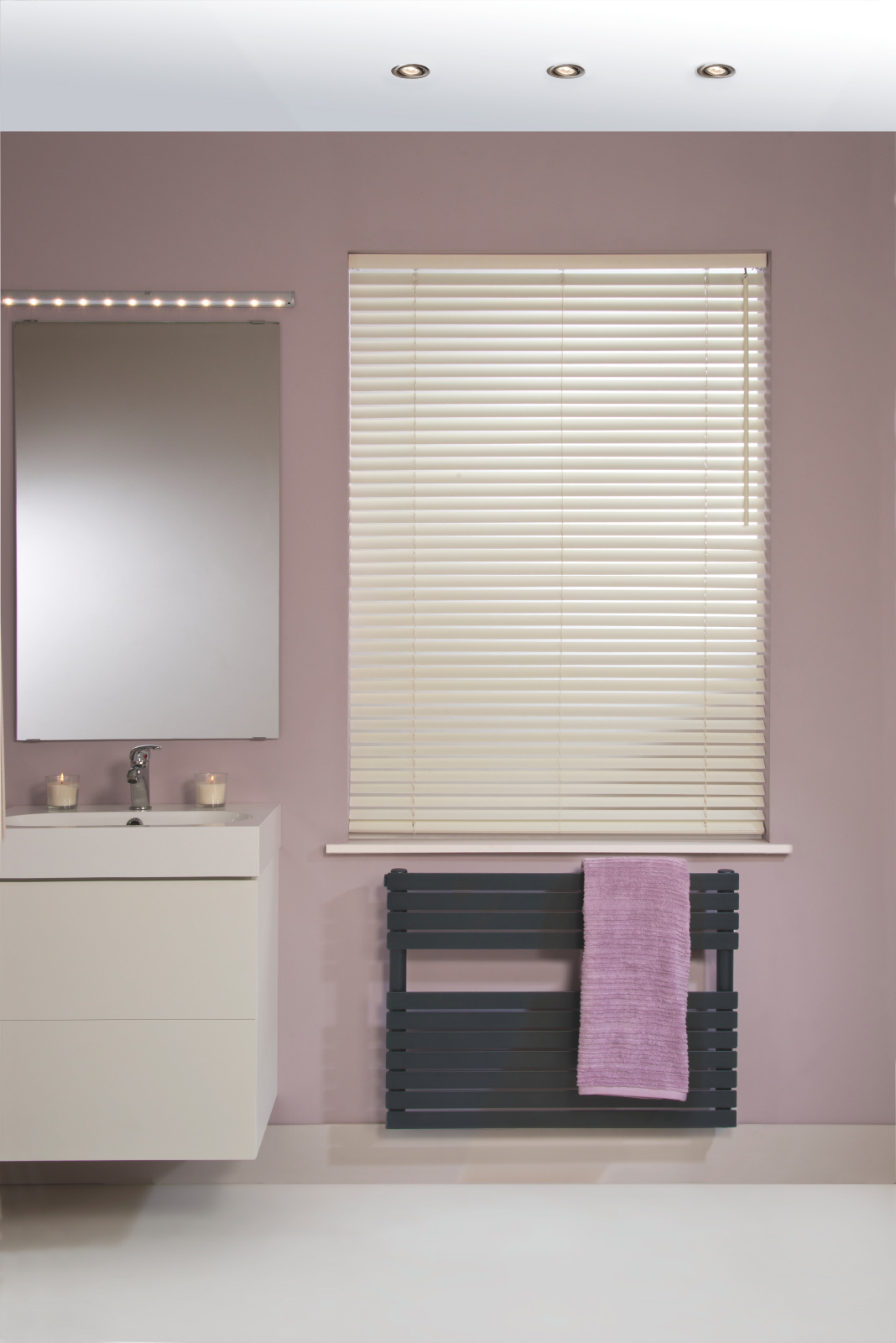

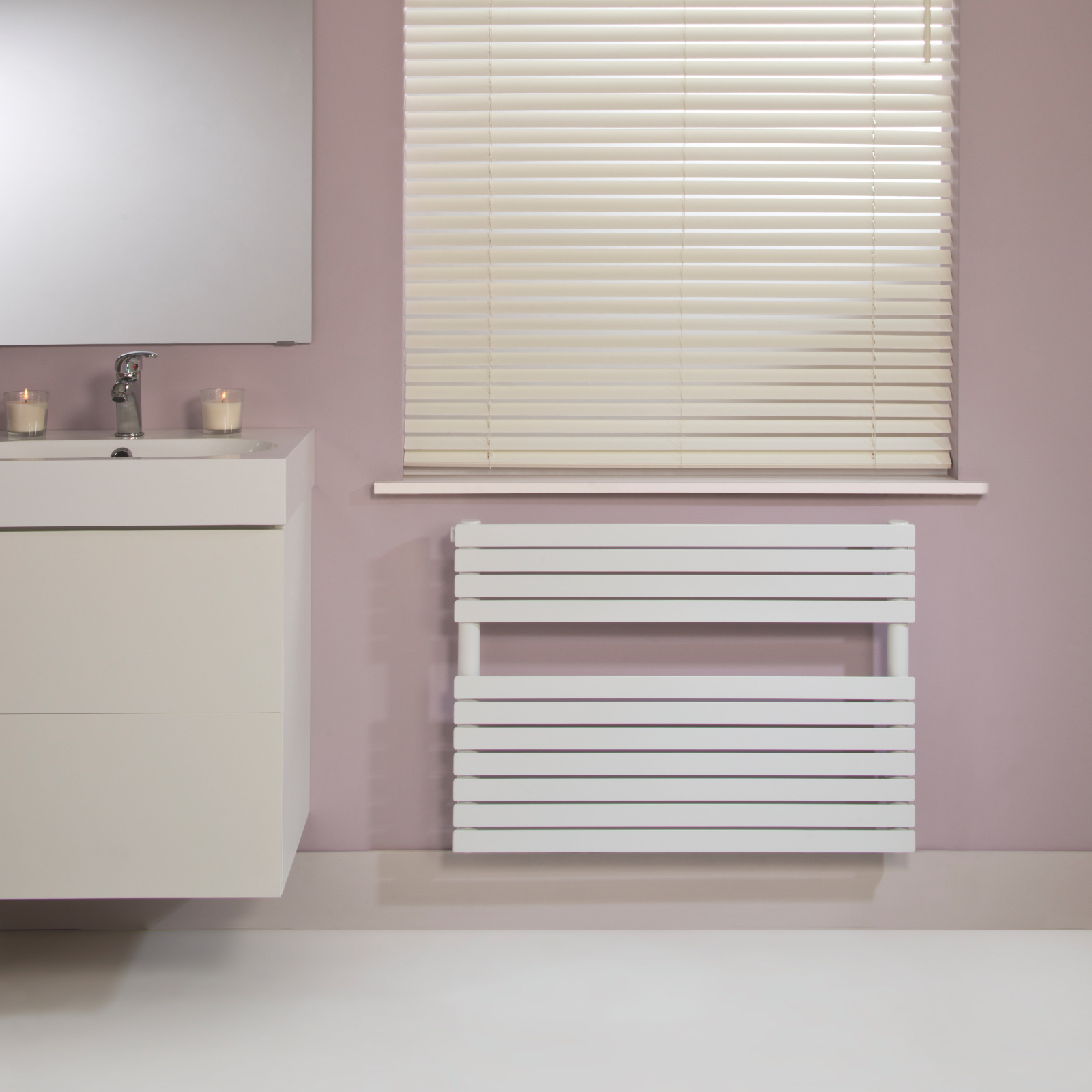

Ax Spa Decorative radiator Front view
Ax Spa Decorative radiator Front view
Decorative Radiators

Zehnder
AX Spa

Hydronic operation
    Get in touch

    Innovative solution with an elegant appearance – Zehnder AX Spa brings a feeling of well-being to any bathroom. With a range of different sizes available, this decorative radiator is even suitable for installation in small bathrooms. The generously sized cut-outs make it easy to warm and hang up towels. Available in all colours and finishes from the Zehnder colour chart.

    Show more

    Decorative Radiators

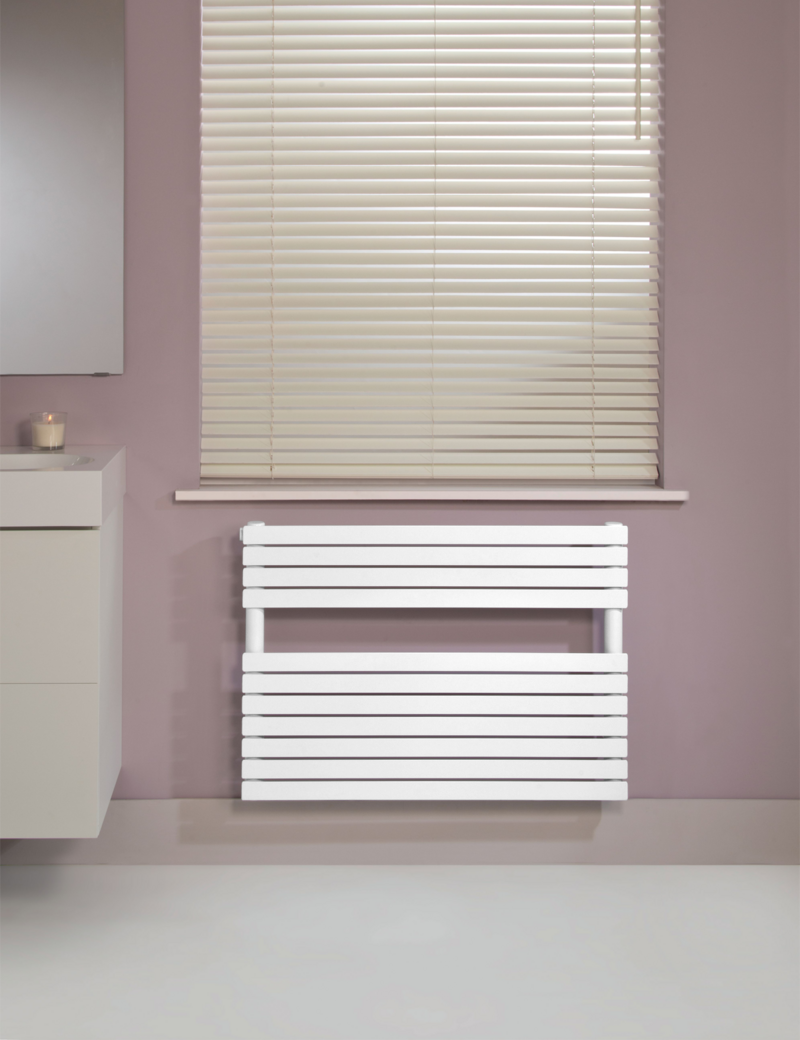

    Zehnder AX Spa - Hydronic operation

    We also offer the following technologies

    Electric operation

    Benefits

    • Modern and elegant design

    • The radiator boasts perfect proportions and can be installed under a window, enabling perfect integration into any bathroom

    • The right model for almost any connection possibility

    • Elegantly integrated valve on request, with hidden connection technology

    • Generous cut-outs make it ideal for warming towels

    Show more

    Colour System

    Zehnder AX Spa - Hydronic operation
    Traffic White (9016* / RAL 9016)
    Standard
    Traffic White (9016* / RAL 9016)
    Warm Colors Core
    White Quartz (0521*)
    Pure White (9010* / RAL 9010)
    Cement Grey (7233 / RAL 7033)
    Edelweiss (0067)
    Cream (9001* / RAL 9001)
    Telegrey 4 (7247 / RAL 7047)
    Beige Quartz (0523*)
    Golden Sand (0258)
    Yellow Grey (7234 / RAL 7034)
    Pearl Beige (1235 / RAL 1035)
    Beach Gold (0272)
    Concrete Grey (0265)
    Beige Grey (0267)
    Bronze (0276)
    Brown Quartz (0529*)
    Dark Brown (0270)
    Grey Aluminium (9007*)
    Anthracite (0346*)
    Umbra Grey (7222 / RAL 7022)
    Volcanic (0336*)
    Warm Colors Trends
    Pastel Green (6219 / RAL 6019)
    Reseda Green (6211 / RAL 6011)
    Olive Green (6203 / RAL 6003)
    Terracotta Faded (0299)
    Terracotta (0292)
    Ruby Red (3003* / RAL 3003)
    Cool Colors Core
    White Matt (0556)
    Light Beige (0253)
    Light Grey (0262)
    White Aluminium (9006*)
    Light Jeans (0264)
    Titane (0335*)
    Inox Look (0332*)
    Telegrey 2 (7246 / RAL 7046)
    Blue Grey (7231 / RAL 7031)
    Anthracite Grey (7016* / RAL 7016)
    Black Quartz (0550*)
    Black Matt (0557)
    Traffic Black (9217 / RAL 9017)
    Jet Black (9005* / RAL 9005)
    Cool Colors Trends
    Pastel Blue (5224 / RAL 5024)
    Pigeon Blue (5214 / RAL 5014)
    Gentian Blue (5210 / RAL 5010)
    Sapphire Blue (5203 / RAL 5003)
    Blue Night (0289)
    Surfaces
    Technoline (0325)
    Chrome (0008*)
    Traffic White (9016* / RAL 9016)
    White Quartz (0521*)
    Pure White (9010* / RAL 9010)
    Cement Grey (7233 / RAL 7033)
    Edelweiss (0067)
    Cream (9001* / RAL 9001)
    Telegrey 4 (7247 / RAL 7047)
    Beige Quartz (0523*)
    Golden Sand (0258)
    Yellow Grey (7234 / RAL 7034)
    Pearl Beige (1235 / RAL 1035)
    Beach Gold (0272)
    Concrete Grey (0265)
    Beige Grey (0267)
    Bronze (0276)
    Brown Quartz (0529*)
    Dark Brown (0270)
    Grey Aluminium (9007*)
    Anthracite (0346*)
    Umbra Grey (7222 / RAL 7022)
    Volcanic (0336*)
    Pastel Green (6219 / RAL 6019)
    Reseda Green (6211 / RAL 6011)
    Olive Green (6203 / RAL 6003)
    Terracotta Faded (0299)
    Terracotta (0292)
    Ruby Red (3003* / RAL 3003)
    White Matt (0556)
    Light Beige (0253)
    Light Grey (0262)
    White Aluminium (9006*)
    Light Jeans (0264)
    Titane (0335*)
    Inox Look (0332*)
    Telegrey 2 (7246 / RAL 7046)
    Blue Grey (7231 / RAL 7031)
    Anthracite Grey (7016* / RAL 7016)
    Black Quartz (0550*)
    Black Matt (0557)
    Traffic Black (9217 / RAL 9017)
    Jet Black (9005* / RAL 9005)
    Pastel Blue (5224 / RAL 5024)
    Pigeon Blue (5214 / RAL 5014)
    Gentian Blue (5210 / RAL 5010)
    Sapphire Blue (5203 / RAL 5003)
    Blue Night (0289)
    Technoline (0325)
    Chrome (0008*)
    * These colours / surfaces are glossy, all others matt.
    Despite extreme care in the painting process of our radiators, slight colour deviations are possible, depending on the production series and compared to other colour carriers (ceramic, paper, metal, ...) as well as screen display.
    RAL and NCS are manufacturer's designations.

    Technical data

    Connection to hot water central heating system

    Model H L Heat output
    75/65/20 °C 70/55/24 °C 55/45/20 °C 55/45/24 °C
    mm mm W W W W
    Single-layer version
    ZAC-080-040 836 400 250 – – –
    ZAC-080-050 836 500 300 217 159 133
    ZAC-120-040 1188 400 340 – – –
    ZAC-120-050 1188 500 410 296 217 182
    ZAC-120-060 1188 600 480 351 260 219
    ZAC-150-050 1540 500 520 376 276 231
    ZAC-150-060 1540 600 605 – – –
    ZAC-180-050 1804 500 620 449 330 277
    ZAC-180-060 1804 600 725 526 387 324
    H = height, L = length
    75/65/20 = Nominal heat output according to EN 442
    Model H L Heat output
    75/65/20 °C 70/55/24 °C 55/45/20 °C 55/45/24 °C
    mm mm W W W W
    Single-layer version
    ZA-048-040 484 400 230 163 117 97
    ZA-060-080 575 800 458 325 235 195
    ZA-060-090 575 900 515 366 264 219
    ZA-060-100 575 1000 573 407 294 243
    ZA-060-120 575 1200 687 488 352 292
    ZA-150-040 1540 400 614 444 325 272
    ZA-150-050 1540 500 738 534 392 328
    ZA-150-060 1540 600 862 625 460 386
    ZA-180-050 1804 500 884 640 471 395
    ZA-180-060 1804 600 1032 748 551 462
    H = height, L = length
    75/65/20 = Nominal heat output according to EN 442
    Model H L Heat output
    75/65/20 °C 70/55/24 °C 55/45/20 °C 55/45/24 °C
    mm mm W W W W
    Double-layer version
    ZAD-120-050 1188 500 844 – – –
    ZAD-150-050 1540 500 1049 752 547 456
    ZAD-180-050 1804 500 1262 902 654 544
    ZAD-180-060 1804 600 1485 1062 771 641
    H = height, L = length
    75/65/20 = Nominal heat output according to EN 442
