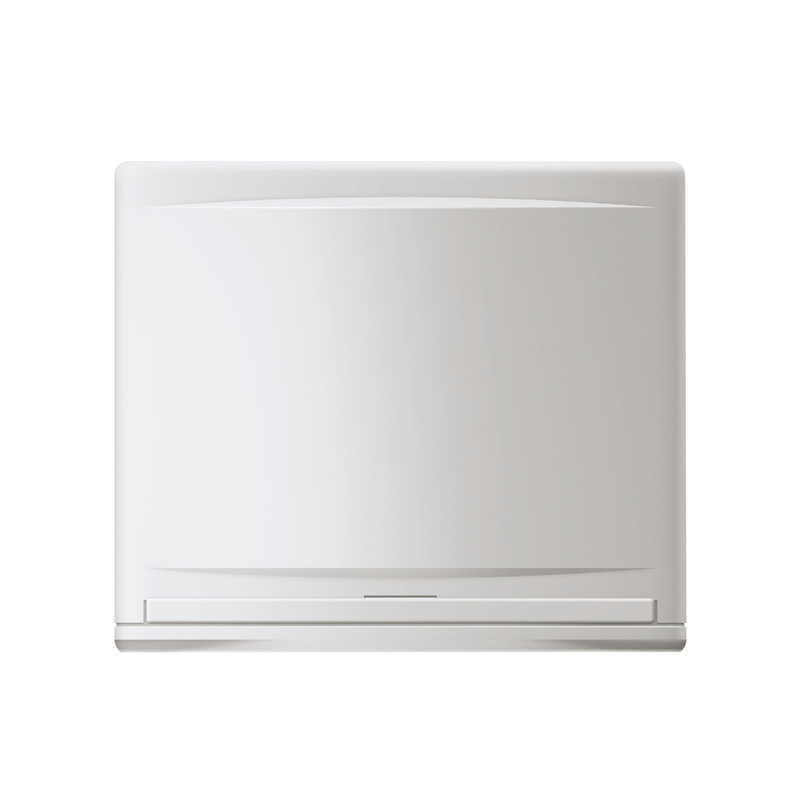

Cut-Out Select SF90 Comfortable indoor ventilation Front view
Article no. SF90T

SF90 100mm Fan, with Pullcord & Overrun Timer

    Data Table

    LabelValue
    Catalogue number SF90T
    GTIN 5030216358775
    Production model SF90T
    Colour White
    Impeller diameter 90 mm
    Max. air temperature 40 °C
    Width 186.5 mm
    Suitable for transformer control
    Air volume at pressure 2 54 m³/h
    Operation Pull cord
    Impeller diameter 90 mm
    With non-return valve
    With thermal overload protection
    Louver None
    Connection voltage 230 V
    Hygrostat None
    Connection voltage 230 V
    Air volume, unloaded 75 m³/h
    Pressure 3 80
    Timer Fixed setting
    Suitable for electronic control
    Max. air volume at 100 Pa 79 m³/h
    Air volume at pressure 3 22 m³/h
    Degree of protection (IP) IP44
    Air volume, unloaded 75 m³/h
    Depth 147 mm
    Suitable for frequency control
    Height 158 mm
    Electrical connection Cable
    Pressure 2 40
    Housing material Plastic
    Power consumption 21 W
