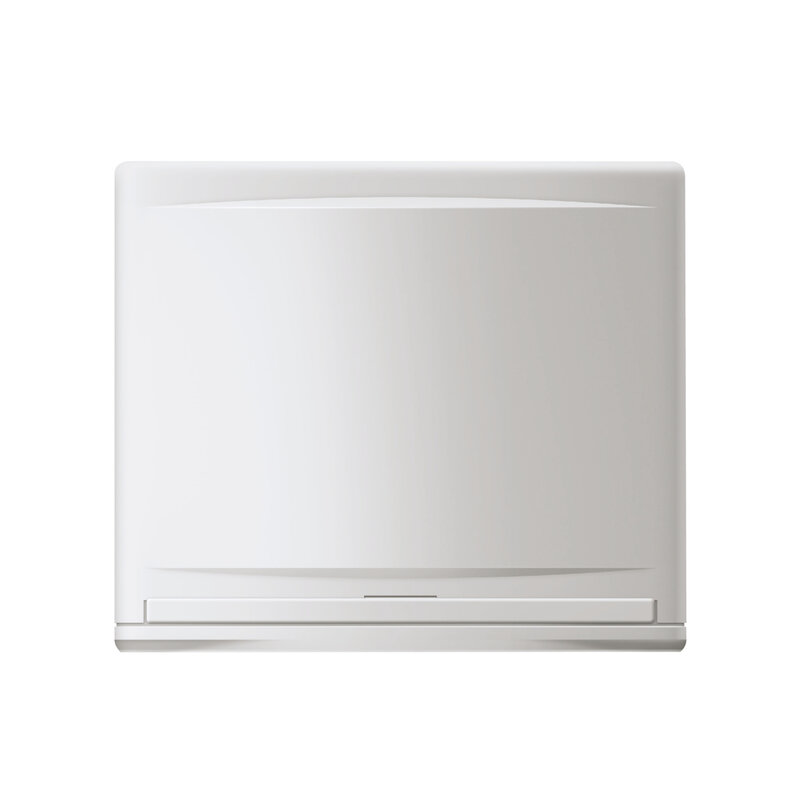

Cut-Out Select SF90 Comfortable indoor ventilation Front view
Article no. SF90B

SF90 100mm Fan, with Pullcord

    Data Table

    LabelValue
    Catalogue number SF90B
    GTIN 5030216358751
    Production model SF90B
    Height 158 mm
    Width 186.5 mm
    Colour White
    Suitable for electronic control
    Air volume at pressure 3 22 m³/h
    Operation Pull cord
    Pressure 3 80
    With non-return valve
    With thermal overload protection
    Louver None
    Connection voltage 230 V
    Impeller diameter 90 mm
    Hygrostat None
    Pressure 2 40
    Timer None
    Suitable for transformer control
    Max. air volume at 100 Pa 79 m³/h
    Air volume at pressure 2 54 m³/h
    Degree of protection (IP) IP44
    Air volume, unloaded 75 m³/h
    Depth 147 mm
    Suitable for frequency control
    Electrical connection Cable
    Housing material Plastic
    Power consumption 21 W
