Article no. 527007980

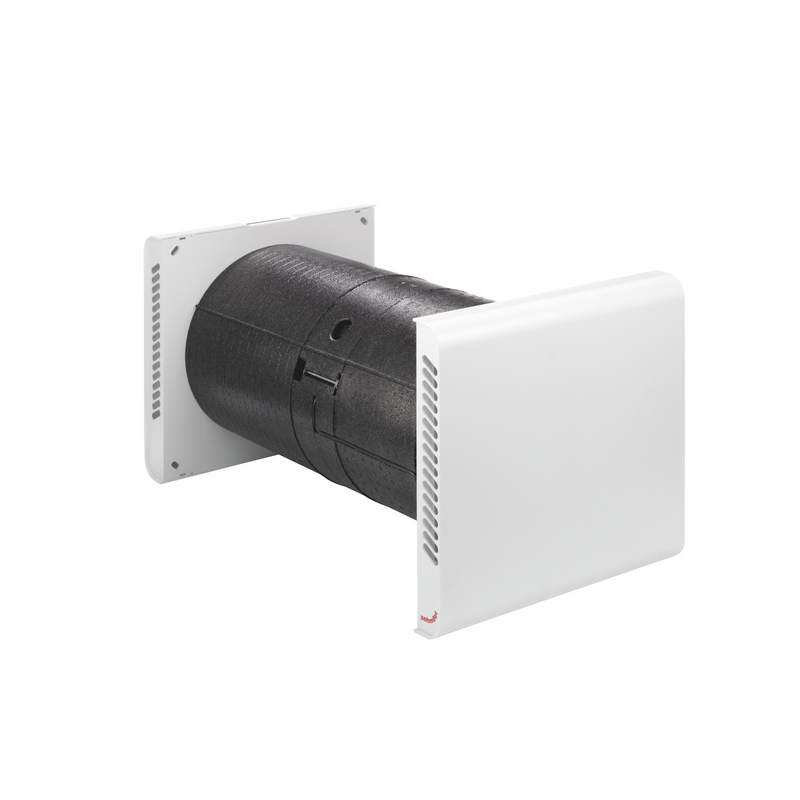

Zehnder ComfoSpot 50, with plastic external wall panel and humidity / CO2 sensor board

    Data Table

    LabelValue
    Catalogue number 527007980
    GTIN 8717573045797
    Production model COMFOSPOT 50 PREMIUM CO2
    Air flow rate 50 m³/h
    Supply voltage 230 V
    Frequency 50 Hz
    Noise/Sound Level 41
    Energy class I A
    Energy class II B
    Weight 7 kg
    Height 380 mm
    Residential connection, underside
    Roof connection, top
    Power consumption at max. air volume at 100 Pa 15 kW
    Suitable for (extra) carbon dioxide (CO2) sensor
    Exhaust filter according to ISO 16890-1:2016 ISO Coarse
    Material heat exchanger Plastic
    Voltage 230 V
    Supply filter according to ISO 16890-1:2016 ISO Coarse
    Left/right orientation reversible
    Nominal duct diameter 315-340 mm
    Energy efficiency class (1253/2014/EU) A
    Type of motor Electronically commutated (EC)
    With thermal overload protection
    Suitable for wall mounting
    With constant pressure control
    Residential connection, right side
    With constant volume flow control
    With digital display
    Type of frost protection Other
    Suitable for extra VOC sensor
    Connections residential side Other
    Supporting protocol for Modbus
    Connections outdoor air side Other
    Housing material Plastic
    With bypass
    Housing material quality Expanded polypropylene (EPP)
    Electrical connection Terminals
    With heating element
    Suitable for central heating boiler connection
    With wired control unit
    Roof connection, side
    Suitable for (extra) humidity (RH) sensor
    With internal humidity (RH) sensor
    With internal carbon dioxide (CO2) sensor
    Degree of protection (IP) IP12
    Residential connection, left side
    Suitable for zone controller
    Residential connection, top
    With zone controller
    Suitable for wireless remote control
    Suitable for wired control unit
    Width 376 mm
    Depth 705 mm
    With volatile organic compound (VOC) sensor
    Suitable for floor mounting
    Efficiency exhaust filter according to ISO 16890-1:2016 70 %
    Thermal efficiency at 70 % air volume at 50 Pa 75 %
    Frequency 50 Hz
    Number of phases 1
    Efficiency supply filter according to ISO 16890-1:2016 70 %
    Heat recovery by Cross-counter-flow unit
    Suitable for ceiling mounting
