Article no. 527007210

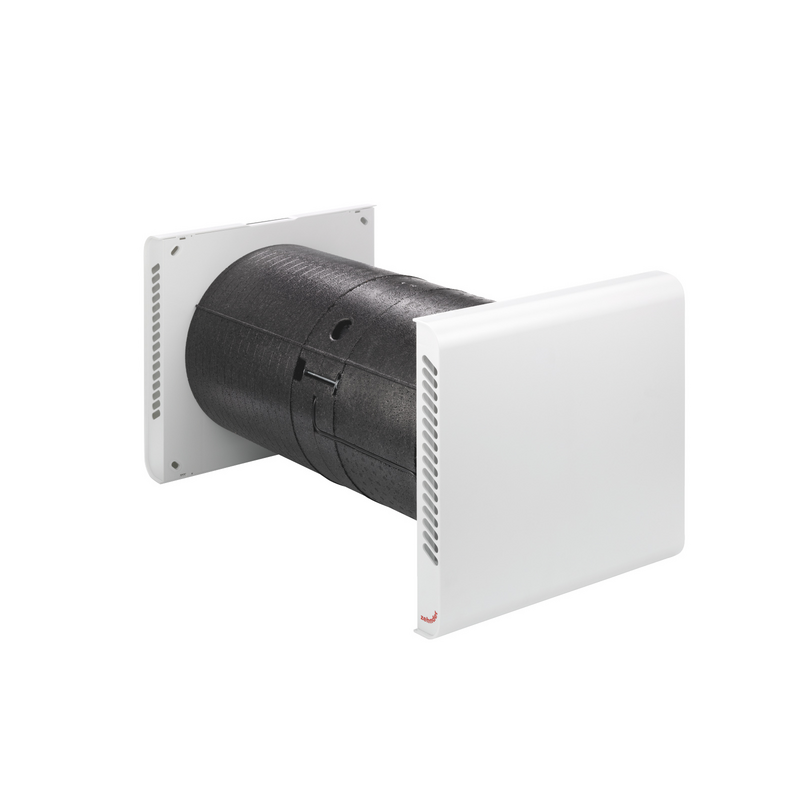

Zehnder ComfoSpot 50, with plastic external wall panel

    Data Table

    LabelValue
    Catalogue number 527007210
    GTIN 8717573045780
    Production model COMFOSPOT 50 PREMIUM
    Air flow rate 50 m³/h
    Supply voltage 230 V
    Frequency 50 Hz
    Noise/Sound Level 41
    Energy class I A
    Energy class II B
    With digital display
    Suitable for extra VOC sensor
    Residential connection, right side
    Type of motor Electronically commutated (EC)
    Power consumption at max. air volume at 100 Pa 15 kW
    Suitable for (extra) carbon dioxide (CO2) sensor
    Exhaust filter according to ISO 16890-1:2016 ISO Coarse
    Material heat exchanger Plastic
    Voltage 230 V
    Supply filter according to ISO 16890-1:2016 ISO Coarse
    Left/right orientation reversible
    Supporting protocol for Modbus
    Nominal duct diameter 315-340 mm
    Housing material Plastic
    Energy efficiency class (1253/2014/EU) B
    With thermal overload protection
    Roof connection, top
    Suitable for wall mounting
    With constant pressure control
    Residential connection, underside
    With constant volume flow control
    Type of frost protection Other
    Weight 7 kg
    Connections residential side Other
    Height 380 mm
    Connections outdoor air side Other
    With bypass
    Housing material quality Expanded polypropylene (EPP)
    With heating element
    Electrical connection Terminals
    With wired control unit
    Suitable for central heating boiler connection
    Suitable for (extra) humidity (RH) sensor
    Roof connection, side
    With internal humidity (RH) sensor
    Degree of protection (IP) IP12
    With internal carbon dioxide (CO2) sensor
    Suitable for zone controller
    Residential connection, left side
    With zone controller
    Residential connection, top
    Suitable for wired control unit
    Suitable for wireless remote control
    Width 376 mm
    Depth 705 mm
    Suitable for floor mounting
    With volatile organic compound (VOC) sensor
    Thermal efficiency at 70 % air volume at 50 Pa 75 %
    Efficiency exhaust filter according to ISO 16890-1:2016 70 %
    Frequency 50 Hz
    Efficiency supply filter according to ISO 16890-1:2016 70 %
    Number of phases 1
    Heat recovery by Cross-counter-flow unit
    Suitable for ceiling mounting
