ComfoAir Q600, comfoairq600, ST, CAQ600ST, CAST
Article no. 471502021

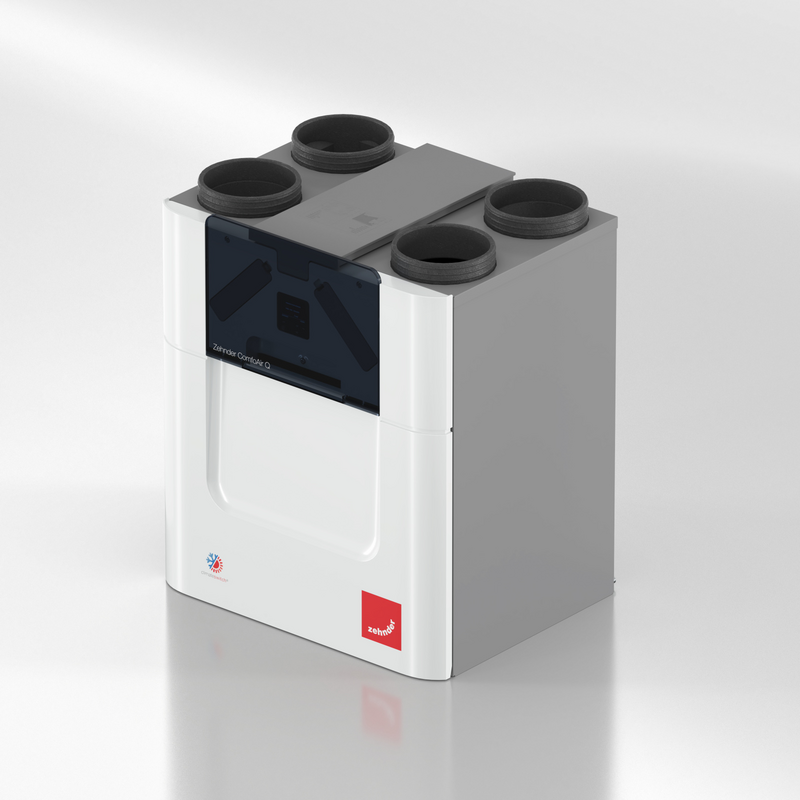

Zehnder ComfoAir Q450 with Pre-Heater, Left Handed

    Declaration

    ModelArticle no.Declaration of performance
    CAQ450-L-PH-STT-GB - Zehnder ComfoAir Q450 with Pre-Heater, Left Handed471502021 1603044Q45010.pdf(48 KB)

    ControlEnergy classEnergy label
    Energy Label – Central demand control GB-EU-label_CAQ450_471502021_A+.pdf(142 KB)
    Energy Label – Manual control GB-label_CAQ450_471502021_A.pdf(91 KB)
    Energy Label – Local demand control GB-EU-label_CAQ450_471502021_A+.pdf(142 KB)
    Energy Label – Clock control GB-label_CAQ450_471502021_A.pdf(91 KB)

    Data Table

    LabelValue
    Catalogue number 471502021
    GTIN 8717573874410
    Production model COMFOAIR Q450 GB L PH ST
    Air flow rate 450 m³/h
    Amperage 9.83 A
    Supply voltage 230 V
    Frequency 50 Hz
    Noise/Sound Level 45
    Energy class I A
    Energy class II A+
    With volatile organic compound (VOC) sensor
    Housing material Steel
    Material heat exchanger Other
    Housing material quality Other
    Efficiency exhaust filter according to ISO 16890-1:2016 65 %
    Supporting protocol for Modbus
    Efficiency supply filter according to ISO 16890-1:2016 55 %
    With bypass
    Material housing Steel coated
    Type of speed control Other
    Max. air volume at 100 Pa 450 m³/h
    Suitable for wall mounting
    Nominal duct diameter 180-200 mm
    With thermal overload protection
    Type of motor Electronically commutated (EC)
    With wired control unit
    With internal carbon dioxide (CO2) sensor
    Suitable for floor mounting
    Suitable for (extra) carbon dioxide (CO2) sensor
    Width 725 mm
    Residential connection, top
    Width 725 mm
    Type of motor Electronically commutated (EC)
    Power consumption at max. air volume at 100 Pa 0.143 kW
    Type of motor Electronically commutated (EC)
    Degree of protection (IP) IP40
    Connections residential side Insert-/duct end
    Thermal efficiency at 70 % air volume at 50 Pa 93 %
    Suitable for central heating boiler connection
    Width 725 mm
    Thermal efficiency at 70 % air volume at 50 Pa 93 %
    Frequency 50 Hz
    Depth 570 mm
    Max. air volume at 200 Pa 450 m³/h
    Frequency 50 Hz
    Roof connection, side
    Max. air volume at 150 Pa 450 m³/h
    Suitable for ceiling mounting
    Residential connection, left side
    Left/right orientation reversible
    Residential connection, underside
    Number of phases 22
    Residential connection, right side
    Heat recovery by Cross-counter-flow unit
    Suitable for wireless remote control
    Housing material quality Other
    Max. air volume at 50 Pa 315 m³/h
    Cos phi according to EPN standard 0.48
    With internal carbon dioxide (CO2) sensor
    With zone controller
    Thermal efficiency according to EPN standard 93 %
    With volatile organic compound (VOC) sensor
    Power input according to EPN standard 0.115 kW
    Fuse size of the device 16 A
    With constant volume flow control
    With bypass
    Power electric heating element 0-1740 W
    Suitable for wall mounting
    Nominal duct diameter 180-200 mm
    With thermal overload protection
    Weight 52 kg/m²
    Suitable for floor mounting
    Depth 570 mm
    Suitable for central heating boiler connection
    Efficiency supply filter according to ISO 16890-1:2016 55 %
    Max. air volume at 100 Pa 450 m³/h
    Suitable for (extra) carbon dioxide (CO2) sensor
    Suitable for wireless remote control
    Roof connection, top
    Residential connection, left side
    Roof connection, side
    Residential connection, underside
    Residential connection, top
    Residential connection, right side
    With digital display
    Max. air volume at 150 Pa 450 m³/h
    Weight 52 kg/m²
    Max. air volume at 200 Pa 450 m³/h
    Height 850 mm
    Depth 570 mm
    With digital display
    Supply filter according to ISO 16890-1:2016 ISO ePM1
    Roof connection, top
    Height 850 mm
    Operation by app
    Voltage 230 V
    Heat recovery by Cross-counter-flow unit
    Exhaust filter according to ISO 16890-1:2016 ISO Coarse
    Voltage 230 V
    Weight 52 kg/m²
    Suitable for ceiling mounting
    With internal humidity (RH) sensor
    Left/right orientation reversible
    Suitable for (extra) humidity (RH) sensor
    Power consumption at max. air volume at 100 Pa 0.143 kW
    Frequency 50 Hz
    Energy efficiency class (1253/2014/EU) A+
    With constant pressure control
    Electrical connection Connecting cord with plug with protective contact
    With constant volume flow control
    Housing material Steel
    Type of frost protection Heating element
    Suitable for extra VOC sensor
    Connections residential side Insert-/duct end
    Energy efficiency class (1253/2014/EU) A+
    Connections outdoor air side Insert-/duct end
    Max. air volume at 50 Pa 315 m³/h
    Efficiency exhaust filter according to ISO 16890-1:2016 65 %
    Electrical connection Connecting cord with plug with protective contact
    Nominal duct diameter 180-200 mm
    Power electric heating element 0-1740 W
    With heating element
    Electrical connection Connecting cord with plug with protective contact
    Exhaust filter according to ISO 16890-1:2016 ISO Coarse
    Energy efficiency class A+
    With wired control unit
    Suitable for wired control unit
    Supply filter according to ISO 16890-1:2016 ISO ePM1
    Supporting protocol for Modbus
    Suitable for (extra) humidity (RH) sensor
    Suitable for extra VOC sensor
    With internal humidity (RH) sensor
    Suitable for zone controller
    Degree of protection (IP) IP40
    With heating element
    Fuse size of the device 16 A
    Connections outdoor air side Insert-/duct end
    Suitable for zone controller
    Type of frost protection Heating element
    With zone controller
    With constant pressure control
    Suitable for wired control unit
    Voltage 230 V
    Height 850 mm
    Number of phases 1
