| Catalogue number |
471234260
|
| GTIN |
8717573040938
|
| Production model |

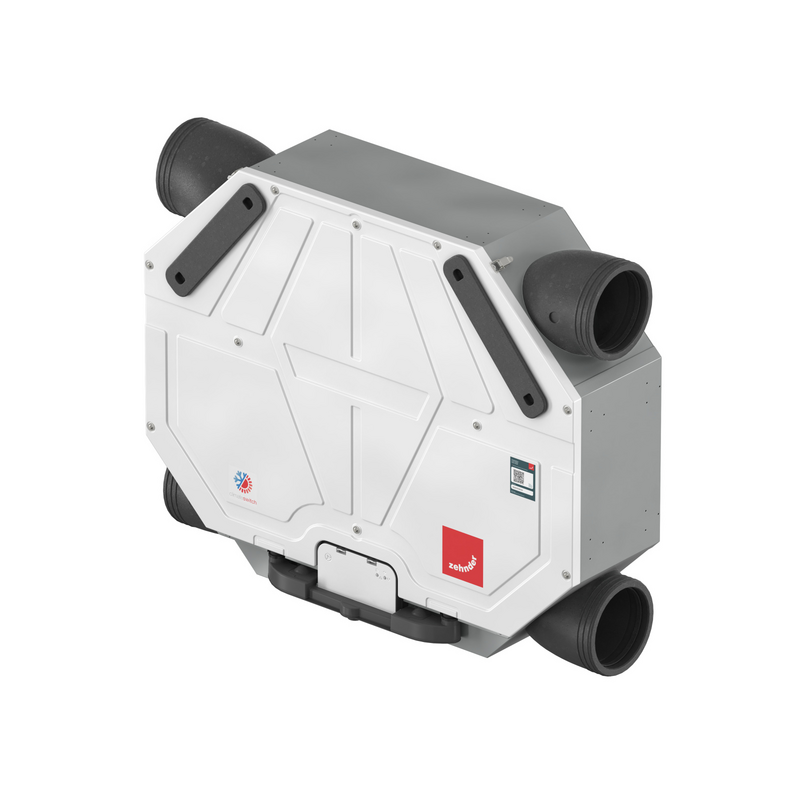

COMFOAIR FLEX 350 HRV PRH UK
|
| Air flow rate |
350 m³/h
|
| Amperage |
8 A
|
| Supply voltage |
230 V
|
| Frequency |
50 Hz
|
| Noise/Sound Level |
48
|
| Energy class I |
A+
|
| Energy class II |
A
|
| Suitable for extra VOC sensor | |
| Suitable for wired control unit | |
| Residential connection, left side | |
| Width |
1070
mm
|
| Efficiency exhaust filter according to ISO 16890-1:2016 |
55
%
|
| Depth |
870
mm
|
| Energy efficiency class |
A+
|
| Type of frost protection |
Heating element
|
| With constant pressure control | |
| Suitable for (extra) humidity (RH) sensor | |
| Material heat exchanger |
Other
|
| Housing material quality |
Expanded polypropylene (EPP)
|
| Roof connection, top | |
| Electrical connection |
Connecting cord with plug with protective contact
|
| Max. air volume at 50 Pa |
200
m³/h
|
| Suitable for ceiling mounting | |
| Fuse size of the device |
12.5
A
|
| Left/right orientation reversible | |
| Max. air volume at 150 Pa |
250
m³/h
|
| Supply filter according to ISO 16890-1:2016 |
ISO Coarse
|
| Cos phi according to EPN standard |
0.43
|
| Voltage |
230
V
|
| Exhaust filter according to ISO 16890-1:2016 |
ISO Coarse
|
| Suitable for wall mounting | |
| Material heat exchanger |
Other
|
| Exhaust filter according to ISO 16890-1:2016 |
ISO Coarse
|
| Nominal duct diameter |
160-160
mm
|
| Weight |
38
kg
|
| Energy efficiency class (1253/2014/EU) |
A+
|
| Efficiency supply filter according to ISO 16890-1:2016 |
55
%
|
| With thermal overload protection | |
| Suitable for wireless remote control | |
| Suitable for wall mounting | |
| Residential connection, top | |
| Max. air volume at 100 Pa |
350
m³/h
|
| Suitable for ceiling mounting | |
| With constant volume flow control | |
| Number of phases |
1
|
| Type of frost protection |
Heating element
|
| Housing material |
Steel
|
| Connections residential side |
Insert end
|
| Energy efficiency class according to 1253/2014/EU |
A+
|
| Connections outdoor air side |
Insert end
|
| Type of motor |
Electronically commutated (EC)
|
| With bypass | |
| Supporting protocol for Modbus | |
| Housing material quality |
Expanded polypropylene (EPP)
|
| Connections outdoor air side |
Insert end
|
| With heating element | |
| Max. air volume at 100 Pa |
350
m³/h
|
| With wired control unit | |
| Max. air volume at 200 Pa |
350
m³/h
|
| Suitable for (extra) humidity (RH) sensor | |
| Thermal efficiency at 70 % air volume at 50 Pa |
90
%
|
| With internal humidity (RH) sensor | |
| Power consumption at max. air volume at 100 Pa |
0.193
kW
|
| Degree of protection (IP) |
IP20
|
| Power input according to EPN standard |
0.193
kW
|
| Fuse size of the device |
12.5
A
|
| With internal humidity (RH) sensor | |
| With zone controller | |
| Nominal duct diameter |
160-160
mm
|
| Suitable for wired control unit | |
| Frequency |
50
Hz
|
| Suitable for floor mounting | |
| Nominal duct diameter |
160-160
mm
|
| Max. air volume at 50 Pa |
200
m³/h
|
| Supply filter according to ISO 16890-1:2016 |
ISO Coarse
|
| Efficiency supply filter according to ISO 16890-1:2016 |
55
%
|
| Height |
327
mm
|
| Suitable for (extra) carbon dioxide (CO2) sensor | |
| Suitable for floor mounting | |
| Electrical connection |
Connecting cord with plug with protective contact
|
| Width |
1068
mm
|
| Type of motor |
Electronically commutated (EC)
|
| Suitable for (extra) carbon dioxide (CO2) sensor | |
| Suitable for central heating boiler connection | |
| Frequency |
50
Hz
|
| Roof connection, top | |
| With digital display | |
| Roof connection, side | |
| Residential connection, underside | |
| With internal carbon dioxide (CO2) sensor | |
| Residential connection, right side | |
| Max. air volume at 200 Pa |
350
m³/h
|
| Roof connection, side | |
| Max. air volume at 150 Pa |
250
m³/h
|
| Voltage |
230
V
|
| Residential connection, left side | |
| Left/right orientation reversible | |
| Residential connection, underside | |
| Type of motor |
Electronically commutated (EC)
|
| Residential connection, top | |
| Heat recovery by |
Cross-counter-flow unit
|
| Residential connection, right side | |
| With volatile organic compound (VOC) sensor | |
| Suitable for wireless remote control | |
| With thermal overload protection | |
| Width |
1070
mm
|
| Suitable for central heating boiler connection | |
| With digital display | |
| Electrical connection |
Connecting cable with plug with protective contact
|
| Depth |
870
mm
|
| With zone controller | |
| Weight |
38
kg
|
| With wired control unit | |
| With volatile organic compound (VOC) sensor | |
| Degree of protection (IP) |
IP20
|
| Suitable for extra VOC sensor | |
| With heating element | |
| Efficiency exhaust filter according to ISO 16890-1:2016 |
55
%
|
| With constant volume flow control | |
| Height |
327
mm
|
| Connections residential side |
Insert end
|
| Supporting protocol for Modbus | |
| Voltage |
230
V
|
| Frequency |
50
Hz
|
| With internal carbon dioxide (CO2) sensor | |
| Number of phases |
1
|
| Suitable for zone controller | |
| Housing material |
Steel
|
| Material housing |
Steel coated
|
| Heat recovery by |
Cross-counter-flow unit
|
| Thermal efficiency at 70 % air volume at 50 Pa |
90
%
|
| Depth |
870
mm
|
| Operation by app | |
| Height |
327
mm
|
| Power consumption at max. air volume at 100 Pa |
0.193
kW
|
| With bypass | |
| Thermal efficiency according to EPN standard |
90
%
|
| Weight |
38
kg
|
| With constant pressure control | |
