| Catalogue number |
527008780
|
| GTIN |
8717573045735
|
| Production model |

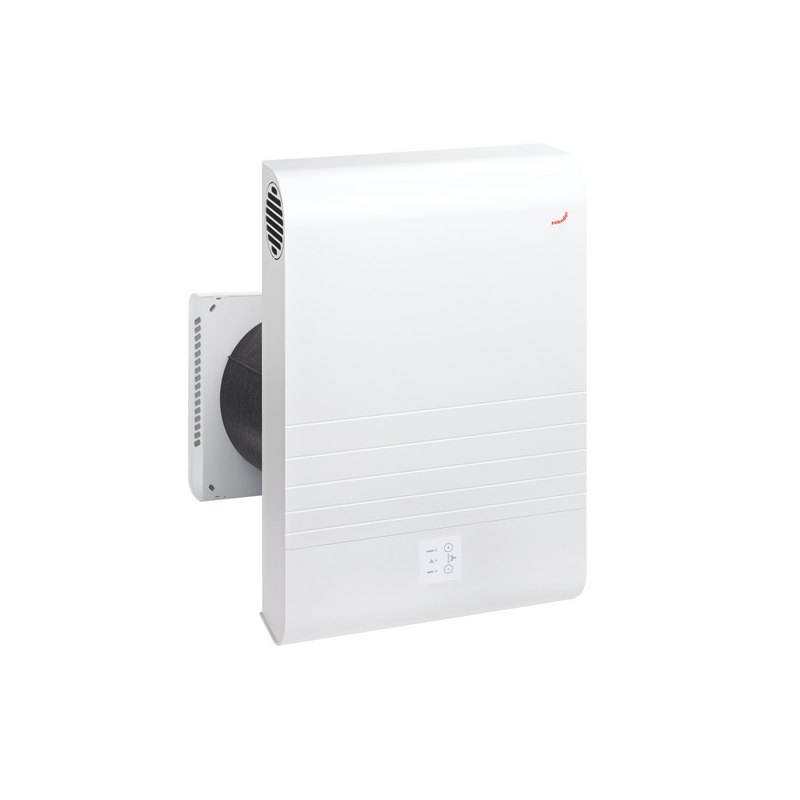

COMFOAIR 70 PREMIUM RH
|
| Air flow rate |
60 m³/h
|
| Supply voltage |
230 V
|
| Frequency |
50 Hz
|
| Noise/Sound Level |
47
|
| Energy class I |
A
|
| Energy class II |
B
|
| Housing material |
Plastic
|
| Degree of protection (IP) |
IP20
|
| Residential connection, right side | |
| Depth |
145 mm
|
| Max. air volume at 250 Pa |
0 m³/h
|
| Max. air volume at 300 Pa |
0 m³/h
|
| Suitable for central heating boiler connection | |
| Suitable for wired control unit | |
| Thermal efficiency at 70 % air volume at 50 Pa |
90 %
|
| Power electric heating element |
0-0.017 kW
|
| Max. air volume at 200 Pa |
17.5 m³/h
|
| Residential connection, underside | |
| Width |
660 mm
|
| Height |
440 mm
|
| Suitable for ceiling mounting | |
| With zone controller | |
| Left/right orientation reversible | |
| Suitable for floor mounting | |
| Supply filter according to ISO 16890-1:2016 |
ISO ePM1
|
| Type of motor |
DC
|
| Voltage |
230 V
|
| Roof connection, top | |
| Exhaust filter according to ISO 16890-1:2016 |
ISO Coarse
|
| Roof connection, side | |
| Material heat exchanger |
Plastic
|
| With internal carbon dioxide (CO2) sensor | |
| Nominal duct diameter |
250 - 270 mm
|
| Max. air volume at 150 Pa |
37 m³/h
|
| Energy efficiency class according to 1253/2014/EU |
A
|
| Residential connection, left side | |
| With thermal overload protection | |
| Residential connection, top | |
| Suitable for wall mounting | |
| Suitable for wireless remote control | |
| Max. air volume at 100 Pa |
60 m³/h
|
| With digital display | |
| With bypass | |
| Weight |
14 kg
|
| Housing material quality |
Other
|
| Frequency |
50 Hz
|
| With wired control unit | |
| Heat recovery by |
Cross-counter-flow unit
|
