Article no. 471233405

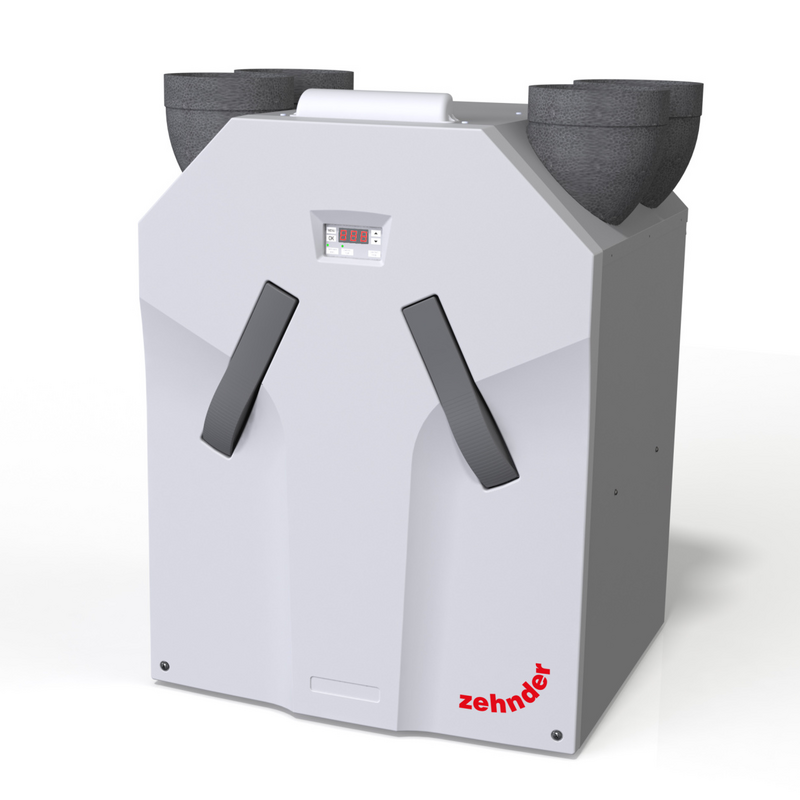

Zehnder ComfoAir 350, Right Handed

    Declaration

    ModelArticle no.Declaration of performance
    CA350-BS-R-SD-GB-MC5 - Zehnder ComfoAir 350, Right Handed471233405 1511044350000.pdf(48 KB)

    ControlEnergy classEnergy label
    Energy Label – Central demand control GB-EU-label_CA350_471233405_A.pdf(141 KB)
    Energy Label – Manual control GB-EU-label_CA350_471233405_A.pdf(141 KB)
    Energy Label – Local demand control GB-EU-label_CA350_471233405_A+.pdf(142 KB)
    Energy Label – Clock control GB-EU-label_CA350_471233405_A.pdf(141 KB)

    Data Table

    LabelValue
    Catalogue number 471233405
    GTIN 5030216110250
    Production model COMFOAIR 350 GB R
    Air flow rate 400 m³/h
    Amperage 1.77 A
    Supply voltage 230 V
    Frequency 50 Hz
    Noise/Sound Level 55
    Energy class I A
    Energy class II A+
    Electrical connection Cable
    Efficiency supply filter according to ISO 16890-1:2016 65 %
    Number of phases 1
    Max. air volume at 50 Pa 350 m³/h
    Suitable for (extra) humidity (RH) sensor
    Housing material quality Expanded polypropylene (EPP)
    Suitable for wired control unit
    Type of speed control Other
    Max. air volume at 100 Pa 409 m³/h
    Nominal duct diameter 150-160 mm
    Suitable for wall mounting
    With thermal overload protection
    Nominal duct diameter 150-160 mm
    Height 864 mm
    Suitable for zone controller
    With bypass
    Max. air volume at 300 Pa 300 m³/h
    Material housing Steel coated
    Housing material quality Expanded polypropylene (EPP)
    Suitable for ceiling mounting
    Supporting protocol for Modbus
    Suitable for floor mounting
    Supply filter according to ISO 16890-1:2016 ISO Coarse
    Frequency 50 Hz
    Energy efficiency class according to 1253/2014/EU A+
    With wired control unit
    Width 710 mm
    Type of frost protection Other
    Degree of protection (IP) IP44
    Power consumption at max. air volume at 100 Pa 0.243 kW
    Depth 268 mm
    Suitable for (extra) carbon dioxide (CO2) sensor
    Type of motor Electronically commutated (EC)
    Energy efficiency class A+
    Suitable for central heating boiler connection
    Voltage 230 V
    Roof connection, top
    With heating element
    Roof connection, side
    Weight 31.58 kg
    Frequency 50 Hz
    Width 710 mm
    With volatile organic compound (VOC) sensor
    Max. air volume at 250 Pa 342 m³/h
    Electrical connection Cable
    Max. air volume at 200 Pa 364 m³/h
    With zone controller
    With volatile organic compound (VOC) sensor
    Max. air volume at 150 Pa 387 m³/h
    Connections outdoor air side Insert-/duct end
    Residential connection, left side
    With constant pressure control
    Residential connection, underside
    Efficiency exhaust filter according to ISO 16890-1:2016 65 %
    Residential connection, top
    Thermal efficiency at 70 % air volume at 50 Pa 90 %
    Residential connection, right side
    Housing material Steel
    Suitable for wireless remote control
    Heat recovery by Thermal wheel
    Degree of protection (IP) IP44
    Width 710 mm
    With zone controller
    Cos phi according to EPN standard 0.42
    Efficiency supply filter according to ISO 16890-1:2016 65 %
    With digital display
    Voltage 230 V
    Depth 585 mm
    Left/right orientation reversible
    Height 850 mm
    Electrical connection Cable
    With internal carbon dioxide (CO2) sensor
    Thermal efficiency according to EPN standard 96.4 %
    Max. air volume at 300 Pa 300 m³/h
    Power input according to EPN standard 0.086 kW
    Number of phases 1
    With internal humidity (RH) sensor
    With bypass
    Nominal duct diameter 150-160 mm
    Suitable for wall mounting
    Exhaust filter according to ISO 16890-1:2016 ISO Coarse
    With thermal overload protection
    Height 864 mm
    Suitable for floor mounting
    Depth 268 mm
    Suitable for central heating boiler connection
    Suitable for (extra) carbon dioxide (CO2) sensor
    Max. air volume at 100 Pa 409 m³/h
    Weight 31.58 kg
    Suitable for wireless remote control
    Suitable for ceiling mounting
    With digital display
    Left/right orientation reversible
    Residential connection, left side
    Energy efficiency class (1253/2014/EU) A+
    Residential connection, underside
    Suitable for extra VOC sensor
    Residential connection, top
    Max. air volume at 50 Pa 350 m³/h
    Residential connection, right side
    Type of motor Electronically commutated (EC)
    Roof connection, top
    Type of motor Electronically commutated (EC)
    Roof connection, side
    Suitable for wired control unit
    Max. air volume at 150 Pa 387 m³/h
    Supporting protocol for Modbus
    Max. air volume at 250 Pa 342 m³/h
    Suitable for extra VOC sensor
    Max. air volume at 200 Pa 364 m³/h
    With heating element
    Supply filter according to ISO 16890-1:2016 ISO Coarse
    With constant volume flow control
    Exhaust filter according to ISO 16890-1:2016 ISO Coarse
    Connections residential side Insert-/duct end
    Weight 31.58 kg
    Voltage 230 V
    Frequency 50 Hz
    With internal carbon dioxide (CO2) sensor
    With constant pressure control
    Material heat exchanger Plastic
    With constant volume flow control
    Fuse size of the device 1.77 A
    Type of frost protection Other
    Thermal efficiency at 70 % air volume at 50 Pa 90 %
    Connections residential side Insert-/duct end
    Efficiency exhaust filter according to ISO 16890-1:2016 65 %
    Connections outdoor air side Insert-/duct end
    Heat recovery by Thermal wheel
    With wired control unit
    Material heat exchanger Plastic
    Suitable for (extra) humidity (RH) sensor
    Housing material Steel
    With internal humidity (RH) sensor
    Power consumption at max. air volume at 100 Pa 0.243 kW
    Suitable for zone controller
    Fuse size of the device 1.77 A
