Article no. 471233400

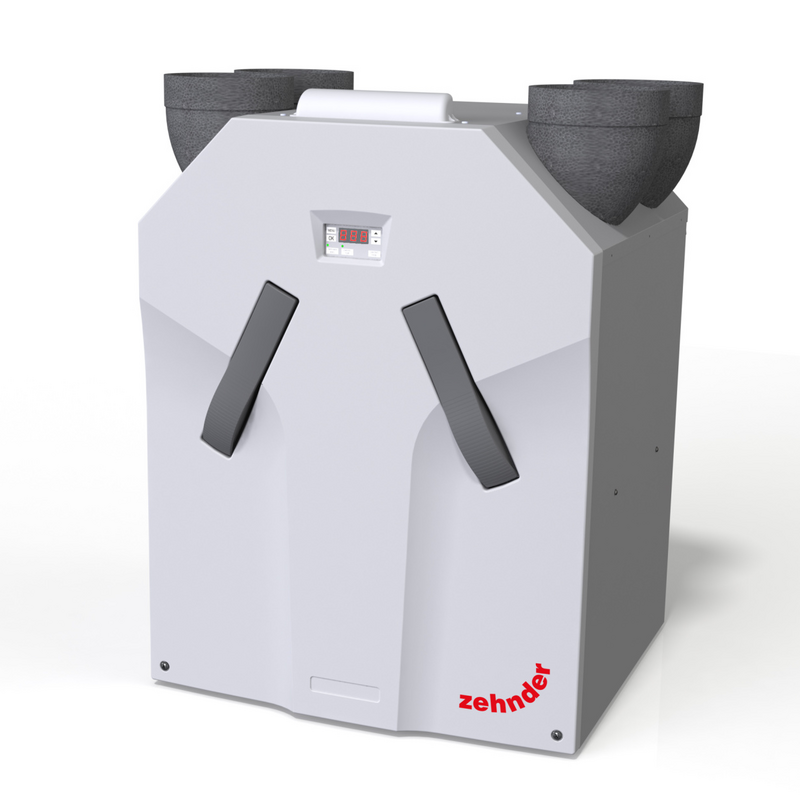

Zehnder ComfoAir 350, Left Handed

    Declaration

    Modellkennung LLArtikel-Nr. LLLeistungserklärung LL
    CA350-BS-L-SD-GB-MC5 - Zehnder ComfoAir 350, Left Handed471233400 1511044350000.pdf(48 KB)

    Steuerung LLEnergieeffizienzklasse LLEnergieeffizienz-Label LL
    Energy Label – Central demand control GB-label_CA350_471233400_A.pdf(91 KB)
    Energy Label – Manual control GB-label_CA350_471233400_A.pdf(91 KB)
    Energy Label – Local demand control GB-EU-label_CA350_471233400_A+.pdf(142 KB)
    Energy Label – Clock control GB-label_CA350_471233400_A.pdf(91 KB)

    Data Table

    LabelValue
    Catalogue number 471233400
    GTIN 5030216110267
    Production model COMFOAIR 350 GB L
    Air flow rate 400 m³/h
    Amperage 1.77 A
    Supply voltage 230 V
    Frequency 50 Hz
    Noise/Sound Level 55
    Energy class I A
    Energy class II A+
    Electrical connection Cable
    Supply filter according to ISO 16890-1:2016 ISO Coarse
    Max. air volume at 300 Pa 300 m³/h
    Efficiency exhaust filter according to ISO 16890-1:2016 65 %
    With wired control unit
    Voltage 230 V
    Type of speed control Other
    Degree of protection (IP) IP44
    Nominal duct diameter 150-160 mm
    Suitable for wall mounting
    With thermal overload protection
    Nominal duct diameter 150-160 mm
    Height 864 mm
    Suitable for ceiling mounting
    Max. air volume at 100 Pa 409 m³/h
    Power consumption at max. air volume at 100 Pa 0.243 kW
    With bypass
    Voltage 230 V
    Housing material Steel coated
    With zone controller
    Electrical connection Cable
    With heating element
    Suitable for floor mounting
    Power consumption at max. air volume at 100 Pa 0.243 kW
    With internal humidity (RH) sensor
    Suitable for (extra) carbon dioxide (CO2) sensor
    Housing material Plastic
    Width 710 mm
    With zone controller
    With constant volume flow control
    Electrical connection Cable
    With internal humidity (RH) sensor
    Efficiency supply filter according to ISO 16890-1:2016 65 %
    Left/right orientation reversible
    With internal carbon dioxide (CO2) sensor
    Suitable for central heating boiler connection
    Number of phases 1
    Roof connection, top
    Thermal efficiency at 70 % air volume at 50 Pa 90 %
    Roof connection, side
    Housing material Steel
    Energy efficiency class according to 1253/2014/EU A+
    With volatile organic compound (VOC) sensor
    Efficiency exhaust filter according to ISO 16890-1:2016 65 %
    Max. air volume at 250 Pa 342 m³/h
    Weight 31.58 kg
    Max. air volume at 200 Pa 364 m³/h
    Housing material quality Expanded polypropylene (EPP)
    Number of phases 1
    Max. air volume at 150 Pa 387 m³/h
    Suitable for extra VOC sensor
    Residential connection, left side
    Electrical connection Cable
    Residential connection, underside
    With wired control unit
    Residential connection, top
    With heating element
    Residential connection, right side
    Connections residential side Insert-/duct end
    Suitable for wireless remote control
    With internal carbon dioxide (CO2) sensor
    Depth 268 mm
    Width 710 mm
    Suitable for (extra) humidity (RH) sensor
    Cos phi according to EPN standard 0.53
    Suitable for zone controller
    With digital display
    Suitable for wired control unit
    Depth 585 mm
    Suitable for (extra) carbon dioxide (CO2) sensor
    Height 850 mm
    Suitable for ceiling mounting
    Type of motor Electronically commutated (EC)
    Thermal efficiency according to EPN standard 96.4 %
    Max. air volume at 50 Pa 350 m³/h
    Power input according to EPN standard 0.0384 kW
    Energy efficiency class A+
    Supporting protocol for Modbus
    With bypass
    Voltage 230 V
    Suitable for wall mounting
    Degree of protection (IP) IP44
    With thermal overload protection
    Weight 39 kg
    Suitable for floor mounting
    Frequency 50 Hz
    Suitable for central heating boiler connection
    Heat recovery by Cross-counter-flow unit
    Max. air volume at 100 Pa 409 m³/h
    Material heat exchanger Plastic
    Suitable for wireless remote control
    Housing material quality Expanded polypropylene (EPP)
    With digital display
    Type of motor Electronically commutated (EC)
    Residential connection, left side
    Suitable for extra VOC sensor
    Residential connection, underside
    Suitable for (extra) humidity (RH) sensor
    Residential connection, top
    Exhaust filter according to ISO 16890-1:2016 ISO Coarse
    Residential connection, right side
    Material heat exchanger Plastic
    Roof connection, top
    Efficiency supply filter according to ISO 16890-1:2016 65 %
    Roof connection, side
    Thermal efficiency at 70 % air volume at 50 Pa 90 %
    Max. air volume at 150 Pa 387 m³/h
    Frequency 50 Hz
    Max. air volume at 250 Pa 342 m³/h
    Left/right orientation reversible
    Max. air volume at 200 Pa 364 m³/h
    Heat recovery by Cross-counter-flow unit
    Width 710 mm
    With volatile organic compound (VOC) sensor
    Nominal duct diameter 150-160 mm
    Energy efficiency class according to 1253/2014/EU A+
    Height 850 mm
    Max. air volume at 50 Pa 350 m³/h
    Depth 585 mm
    Type of motor Electronically commutated (EC)
    Supply filter according to ISO 16890-1:2016 ISO Coarse
    Suitable for wired control unit
    Exhaust filter according to ISO 16890-1:2016 ISO Coarse
    Supporting protocol for Modbus
    Weight 31.58 kg
    Suitable for zone controller
    Frequency 50 Hz
    Connections outdoor air side Insert-/duct end
    With constant pressure control
    Type of frost protection Other
    With constant volume flow control
    With constant pressure control
    Type of frost protection Other
    Max. air volume at 300 Pa 300 m³/h
    Connections residential side Insert-/duct end
    Nominal duct diameter 150-160 mm
    Connections outdoor air side Insert-/duct end
    Voltage 230 V
