Article no. 471226015

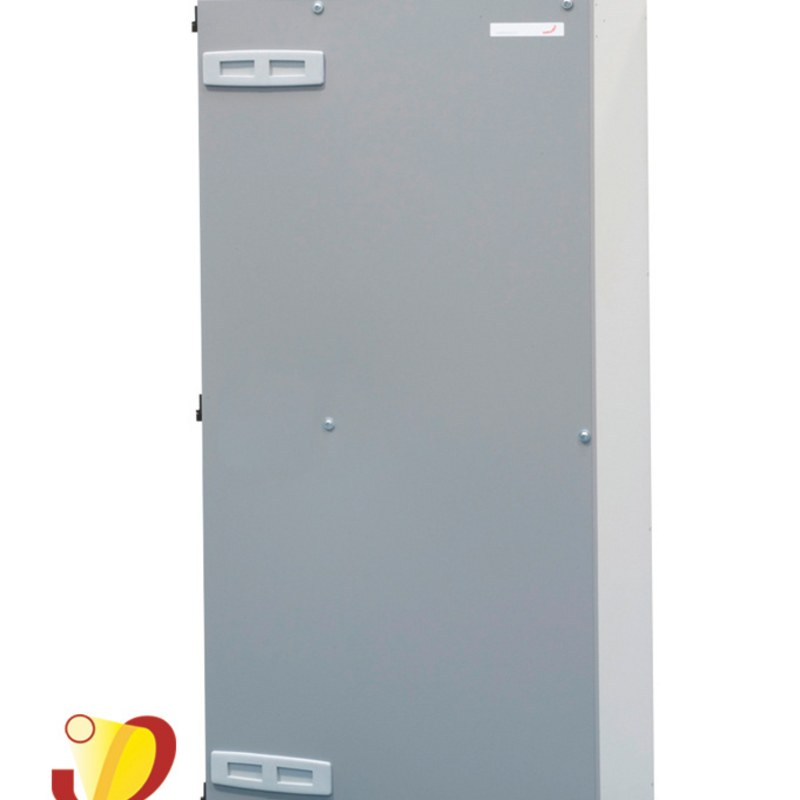

Zehnder ComfoAir 200, Right Handed

    Get in touch

    Declaration

    ModelArticle no.Declaration of performance
    CA200-BS-R-SD-GB-MC5 - Zehnder ComfoAir 200, Right Handed471226015 1511044200000.pdf(47 KB)

    ControlEnergy classEnergy label
    Energy Label – Central demand control EU-Label_CA200_471226015_A.pdf(97 KB)
    Energy Label – Manual control EU-Label_CA200_471226015_A.pdf(97 KB)
    Energy Label – Local demand control GB-EU-Label_CA200_471226015_A+.pdf(142 KB)
    Energy Label – Clock control EU-Label_CA200_471226015_A.pdf(97 KB)

    Data Table

    LabelValue
    Catalogue number471226015
    GTIN5030216110199
    Production modelCOMFOAIR 200 GB R
    Air flow rate230 m³/h
    Amperage1.1 A
    Supply voltage230 V
    Frequency50 Hz
    Noise/Sound Level40
    Energy class IA
    Energy class IIA+
    Degree of protection (IP)IP44
    Power consumption at max. air volume at 100 Pa0.143 kW
    With thermal overload protection
    Connections outdoor air sideInsert-/duct end
    With internal humidity (RH) sensor
    Suitable for wireless remote control
    Weight32.86 kg/m²
    Suitable for ceiling mounting
    Exhaust filter according to ISO 16890-1:2016ISO Coarse
    Nominal duct diameter125-160 mm
    Height1108 cm
    Supply filter according to ISO 16890-1:2016ISO Coarse
    Depth321 cm
    With thermal overload protection
    Supporting protocol for Modbus
    Ceiling mounting
    With heating element
    Type of motorElectronically commutated (EC)
    Exhaust filter according to ISO 16890-1:2016ISO Coarse
    Electrical connectionConnecting cord with plug with protective contact
    Residential connection, right side
    Nominal duct diameter125-160 mm
    Suitable for wired control unit
    Suitable for wall mounting
    Max. air volume at 250 Pa160 m³/h
    Frequency50 MHz
    Frequency50 MHz
    Type of speed controlOther
    Type of motorElectronically commutated (EC)
    Max. air volume at 100 Pa230 m³/h
    Connections residential sideInsert-/duct end
    Connections outdoor air sideInsert-/duct end
    With constant pressure control
    With bypass
    With digital display
    Material housingSteel coated
    Suitable for wall mounting
    With wired control unit
    Suitable for floor mounting
    Suitable for (extra) humidity (RH) sensor
    Residential connection, underside
    With internal humidity (RH) sensor
    Roof connection, side
    Suitable for zone controller
    Max. air volume at 50 Pa225 m³/h
    With zone controller
    Supporting protocol for Modbus
    Suitable for wired control unit
    Max. air volume at 100 Pa230 m³/h
    Voltage230 V
    Efficiency supply filter according to ISO 16890-1:201665 %
    Suitable for floor mounting
    Heat recovery byCross-counter-flow unit
    Housing material qualityOther
    With volatile organic compound (VOC) sensor
    Max. air volume at 50 Pa225 m³/h
    Height1108 cm
    Thermal efficiency according to EPN standard93.3 %
    Width535 cm
    Power input according to EPN standard0.0384 kW
    Suitable for (extra) carbon dioxide (CO2) sensor
    Number of phases1
    Left/right orientation reversible
    With constant volume flow control
    With internal carbon dioxide (CO2) sensor
    With bypass
    Suitable for (extra) humidity (RH) sensor
    Direct-current motor
    Efficiency exhaust filter according to ISO 16890-1:201665 %
    Supply filter according to ISO 16890-1:2016ISO Coarse
    Suitable for central heating boiler connection
    Suitable for (extra) carbon dioxide (CO2) sensor
    Roof connection, top
    Residential connection, left side
    Roof connection, side
    Residential connection, top
    Roof connection, top
    Number of phases1
    Suitable for central heating boiler connection
    Max. air volume at 250 Pa160 m³/h
    With zone controller
    Max. air volume at 200 Pa185 m³/h
    With wired control unit
    Suitable for zone controller
    Max. air volume at 150 Pa210 m³/h
    Connections residential sideInsert-/duct end
    Energy efficiency classA+
    Max. air volume at 150 Pa210 m³/h
    Residential connection, left side
    Max. air volume at 200 Pa185 m³/h
    Residential connection, underside
    Type of frost protectionOther
    Residential connection, top
    Thermal efficiency at 70 % air volume at 50 Pa93.3 %
    Residential connection, right side
    Weight32.86 kg/m²
    Suitable for wireless remote control
    Housing materialSteel
    Material heat exchangerOther
    Width535 cm
    Energy efficiency class (1253/2014/EU)A+
    Cos phi according to EPN standard0.53
    Electrical connectionConnecting cord with plug with protective contact
    Depth321 cm
    Max. air volume at 300 Pa135 m³/h
    Efficiency exhaust filter according to ISO 16890-1:201665 %
    Suitable for extra VOC sensor
    Voltage230 V
