HR155 WM
Article no. CA155WMEP-GB

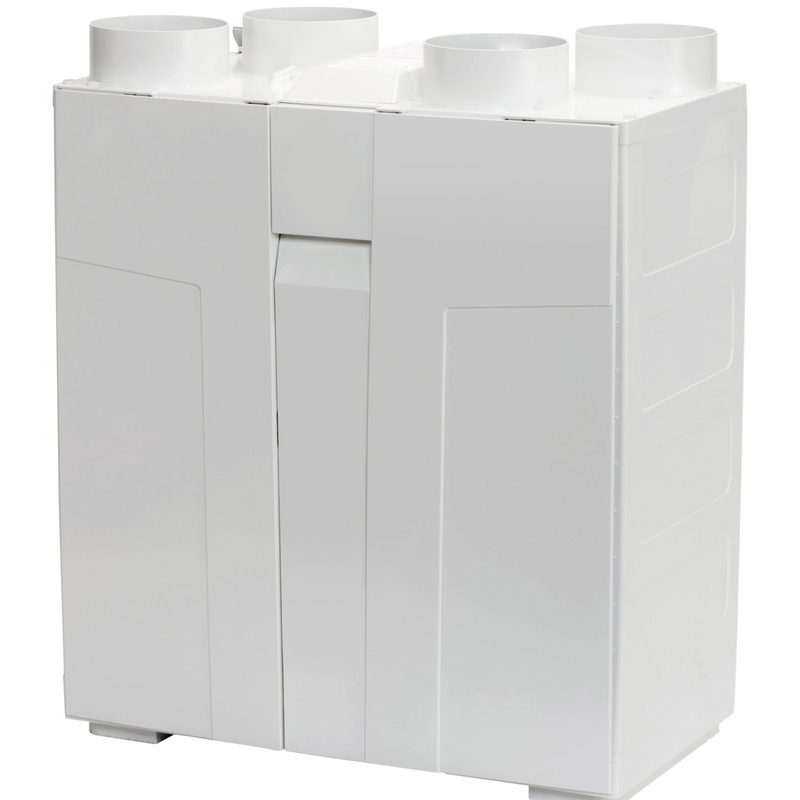

Zehnder ComfoAir 155 WMe for POD wall / cupboard mounting with SMART technology

    Declaration

    ModelArticle no.Declaration of performance
    ComfoAir-155WMeP-125-SMHT-W-Z1-GB - Zehnder ComfoAir 155 WMe for POD wall / cupboard mounting with SMART technologyCA155WMEP-GB 2307GBCA155W010.pdf(122 KB)

    ControlEnergy classEnergy label

    Data Table

    LabelValue
    Catalogue number CA155WMEP-GB
    GTIN 5030216396753
    Production model CA155WMEP-GB
    With wired control unit
    Suitable for wireless remote control
    Supporting protocol for Modbus
    With internal carbon dioxide (CO2) sensor
    Residential connection, left side
    Suitable for floor mounting
    Suitable for (extra) carbon dioxide (CO2) sensor
    Voltage 230 V
    With internal humidity (RH) sensor
    Suitable for ceiling mounting
    With zone controller
    Left/right orientation reversible
    Efficiency supply filter according to ISO 16890-1:2016 0.45 %
    Depth 298 mm
    Roof connection, top
    Supply filter according to ISO 16890-1:2016 ISO Coarse
    Max. air volume at 150 Pa 230 m³/h
    Height 644 mm
    Residential connection, top
    Exhaust filter according to ISO 16890-1:2016 ISO Coarse
    Efficiency exhaust filter according to ISO 16890-1:2016 0.45 %
    Weight 18 kg
    With thermal overload protection
    Suitable for (extra) humidity (RH) sensor
    Type of motor Electronically commutated (EC)
    Suitable for zone controller
    Electrical connection Cable
    Suitable for wired control unit
    Suitable for wall mounting
    Max. air volume at 50 Pa 234 m³/h
    Frequency 50 Hz
    Width 546 mm
    Max. air volume at 100 Pa 250 m³/h
    Suitable for central heating boiler connection
    With constant pressure control
    Roof connection, side
    With constant volume flow control
    Max. air volume at 200 Pa 200 m³/h
    Type of frost protection Other
    Energy efficiency class A
    Connections residential side Duct end
    Residential connection, underside
    Connections outdoor air side Duct end
    Residential connection, right side
    With bypass
    With digital display
    Material housing Plastic
    Thermal efficiency according to EPN standard 0.93 %
    With heating element
    Number of phases 1
