Article no. 471502107

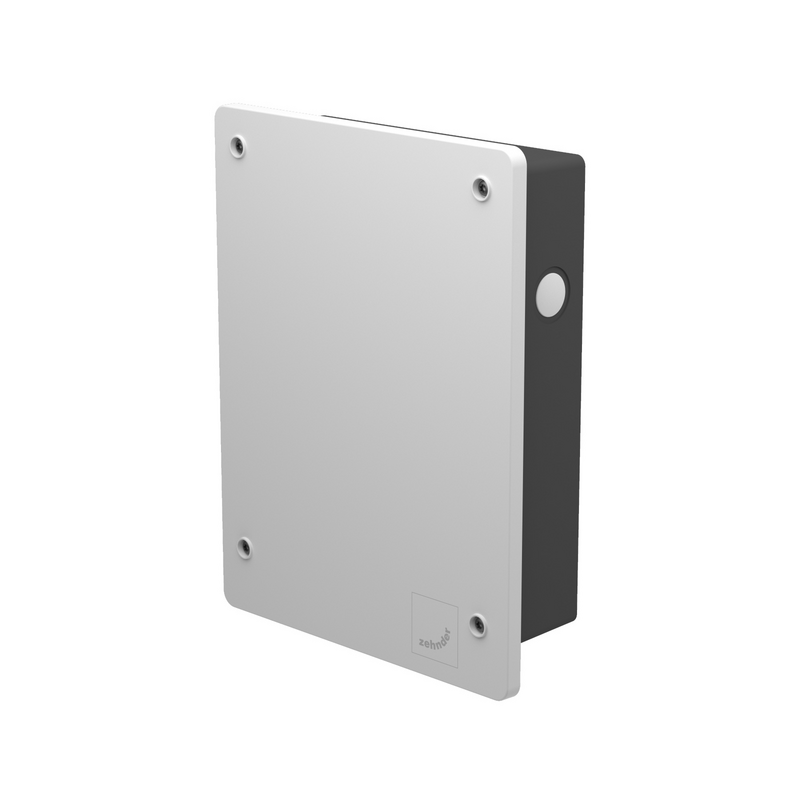

Option Box V2 with additional connectivity for Zehnder ComfoAir Q350/450/600

    Data Table

    LabelValue
    Catalogue number 471502107
    GTIN 8717573048330
    Production model OPTION BOX V2 COMFOAIR Q GB
    Amperage 10 A
    Supply voltage 230 V
    Frequency 50 Hz
    Type of output voltage AC/DC
    Analogue output, current
    Type of voltage (input voltage) AC/DC
    Digital inputs configurable
    Supporting protocol for PROFINET CBA
    Output current at digital output 0.0375 A
    Number of analogue outputs 1
    Number of analogue inputs 4
    Height 60 mm
    Permitted voltage at input 10-10 V
    Analogue output signal configurable
    Depth 254 mm
    Analogue output, voltage
    Supporting protocol for INTERBUS-Safety
    Supporting protocol for LON
    Supporting protocol for DeviceNet Safety
    Number of digital outputs 2
    Supporting protocol for Modbus
    Voltage type (supply voltage) AC
    Analogue outputs configurable
    Number of digital inputs 2
    Performance level according to EN ISO 13849-1 None
    Type of electric connection Screw connection
    Output current at digital output 0.0375 A
    Type of digital output Other
    Type of electric connection Screw connection
    Input current at signal 1 37.5 mA
    Number of HW-interfaces wireless 0
    With optical interface
    Number of HW-interfaces industrial Ethernet 0
    Supporting protocol for EtherNet/IP
    Number of HW-interfaces RS-232 0
    Supporting protocol for PROFIsafe
    Number of HW-interfaces RS-422 0
    Supporting protocol for INTERBUS
    Number of HW-interfaces RS-485 0
    Suitable for rail mounting
    Number of HW-interfaces serial TTY 0
    Supporting protocol for ASI
    Supply voltage AC 50 Hz 230-230 V
    Analogue inputs configurable
    Number of HW-interfaces USB 0
    Supporting protocol for other bus systems
    Supporting protocol for SERCOS
    Explosion safety category for gas None
    Number of HW-interfaces parallel 0
    Number of HW-interfaces other 0
    Supply voltage AC 50 Hz 230-230 V
    Degree of protection (IP) IP40
    Type of digital output Other
    Supply voltage DC 12-12 V
    Digital outputs configurable
    Suitable for safety functions
    Width 195 mm
    Number of interfaces PROFINET 0
    Permitted voltage at input 0-10 V
    Output voltage at digital output 230-230 V
    Short-circuit protection, digital outputs available
    Supporting protocol for AS-Interface Safety at Work
    Supporting protocol for SafetyBUS p
    Width 195 mm
    Supporting protocol for Foundation Fieldbus
    Depth 254 mm
    Supporting protocol for PROFINET IO
    Height 60 mm
    Type of voltage (input voltage) DC
    Supporting protocol for CAN
    Analogue input, current
    Supporting protocol for KNX
    Front built-in possible
    Supporting protocol for Data-Highway
    Rack-assembly possible
    Supporting protocol for DeviceNet
    Supply voltage AC 50 Hz 230-230 V
    Supporting protocol for TCP/IP
    Supply voltage DC 12-12 V
    Supporting protocol for PROFIBUS
    Analogue input signal configurable
    Output voltage at digital output 12-12 V
    Type of output voltage AC
    Degree of protection (IP) IP40
    Supporting protocol for SUCONET
    Input current at signal 1 37.5 mA
    Voltage type of supply voltage AC
    Analogue input, voltage
    IO link master
    Analogue input, resistor
    Explosion safety category for dust None
    Analogue input, resistor temperature
    Analogue input, thermocouple
    Output voltage at digital output 230-230 V
    Wall mounting/direct mounting
    Permitted voltage at input 10-10 V
    Output current at digital output 0.0375 A
    Supply voltage DC 12-12 V
