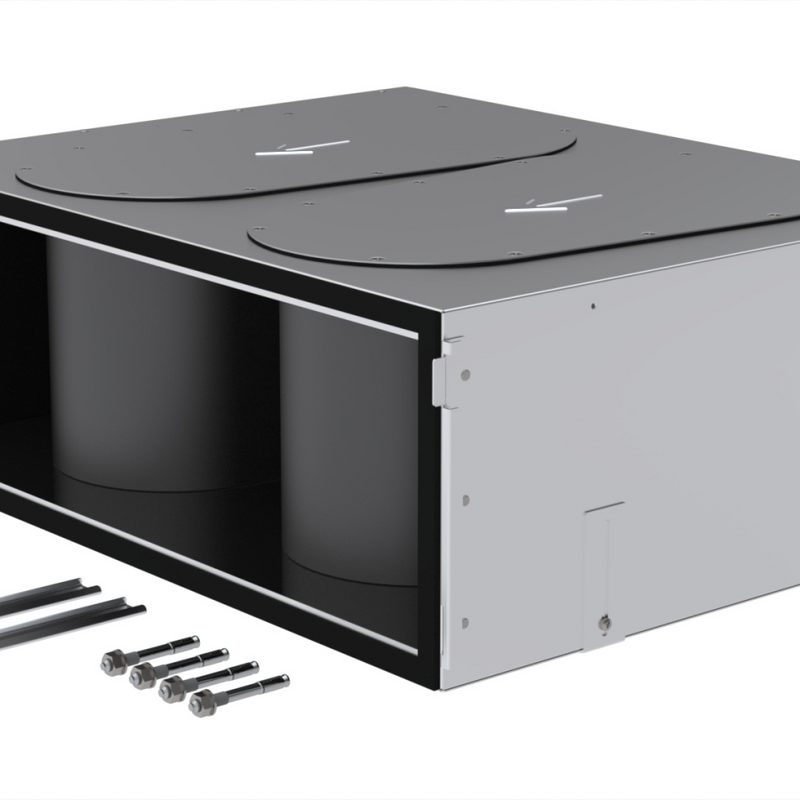

Zehnder ComfoWell attenuator, CW-S 625

Data Table

Label	Value
Catalogue number	990323505
GTIN	7630015273361
Surface protection	Sendzimir galvanised
Height	241 mm
Width	236 mm
Connection 2	Other
Nominal duct width	625 mm
Damping 1000 Hz	12 dB
With inspection opening and cover
Damping 4000 Hz	14.6 dB
Damping 2000 Hz	18.6 dB
Connection 1	Other
Damping 125 Hz	8.9 dB
Damping 250 Hz	13.7 dB
Air extraction
Damping 500 Hz	18.7 dB
Bottom connection
Expansion link finish	Other
Nominal duct diameter, main duct	Other
With edge links
Nominal duct height	230 mm
Material	Sendzimir-galvanised steel
Length	500 mm
With flow approach cap
Type of housing	Part with main air duct
Resonance plate	None
Material	Steel
Connection main duct	Other
Max. medium temperature (continuous)	80 °C
Material quality	Other
Damping 63 Hz	3 dB
Air supply
Max. air volume	660 m³/h
Damping 8000 Hz	12.9 dB
Length	641 mm
Embeddable in concrete
