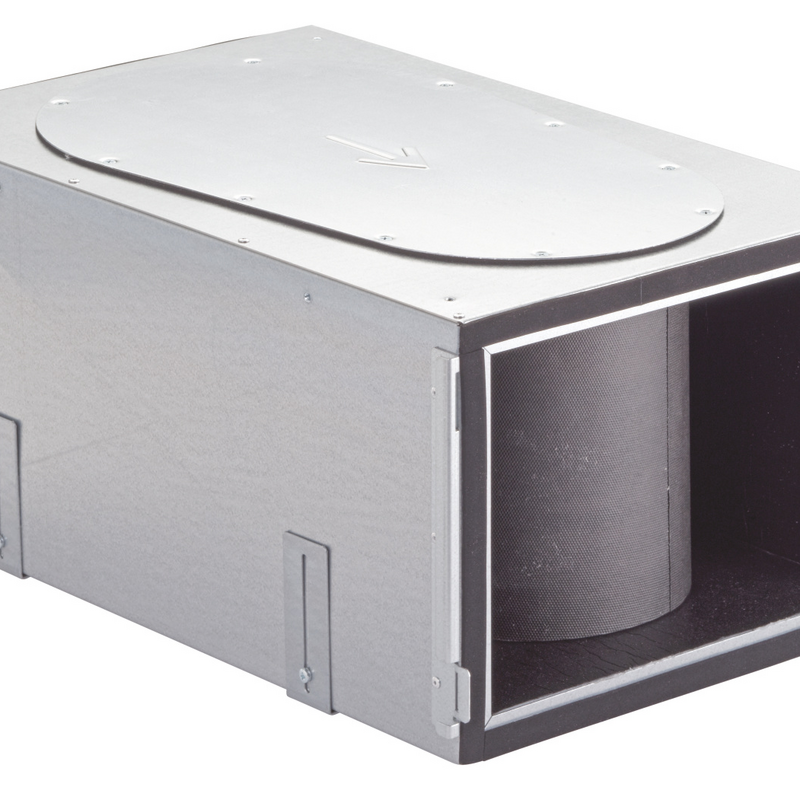

ComfoWell 320, silencer CW-S 320
Article no. 990323501

Zehnder ComfoWell attenuator, CW-S 320

    Get in touch

    Data Table

    LabelValue
    Catalogue number990323501
    GTIN7640138031076
    Air supply
    Length500 cm
    Nominal duct diameter, main ductOther
    Nominal duct height230 mm
    Height241 cm
    Bottom connection
    Damping 2000 Hz23 dB
    Damping 1000 Hz4.6 dB
    Connection 1Other
    Damping 4000 Hz17.4 dB
    Damping 125 Hz5.6 dB
    Damping 250 Hz9.2 dB
    Connection 2Other
    Width236 cm
    Damping 500 Hz6.5 dB
    Surface protectionSendzimir galvanized
    Expansion link finishOther
    Air extraction
    With edge links
    With inspection opening and cover
    MaterialSendzimir-galvanised steel
    Connection, main ductOther
    With flow approach cap
    Nominal duct width320 mm
    Resonance plateNone
    Bottom connection
    With inspection opening and cover
    Air extraction
    Type of housingPart with main air duct
    Damping 63 Hz4.6 dB
    MaterialSteel
    Max. medium temperature (continuous)80 °C
    Connection, main ductOther
    Material qualityOther
    Damping 8000 Hz23.8 dB
    Air supply
    Nominal duct diameter, main ductOther
    Max. air volume330 m³/h
    Embeddable in concrete
    Length336 cm
    Embeddable in concrete
