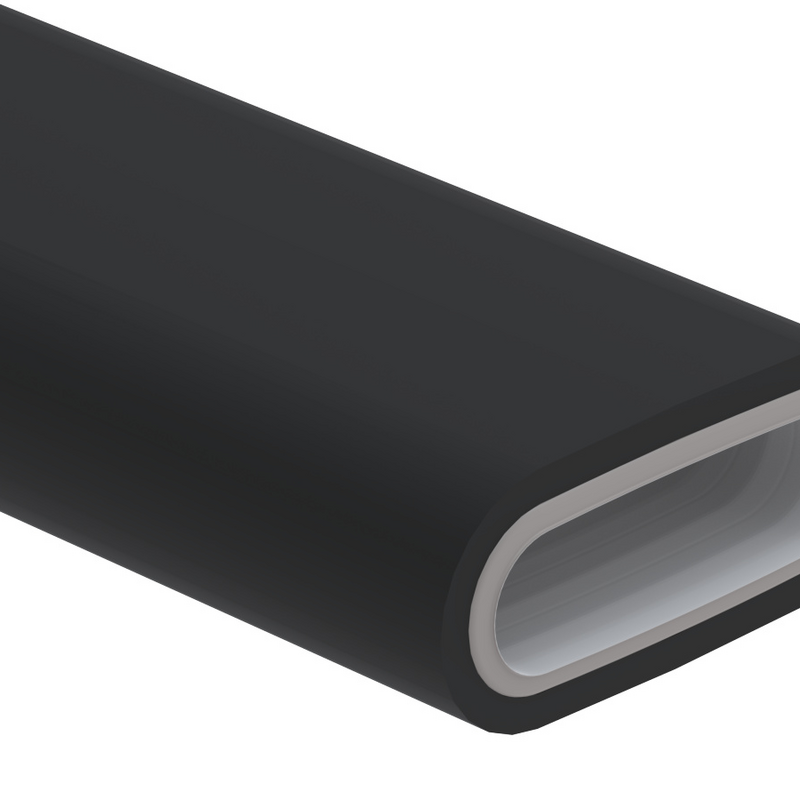

ComfoTube Therm Flat 51 ventilation tube, 51x138 mm, 10 m, black, insulated
Article no. 990328032

Zehnder ComfoTube Therm insulated Flat 51, 138 x 51mm, 10m roll

    Get in touch

    Data Table

    LabelValue
    Catalogue number990328032
    GTIN7613367026090
    Outside colourBlack
    Outer surface protectionUntreated
    Perforated inner wall
    Max. medium temperature (continuous)60 °C
    Material quality ductPolyethylene (PE)
    Material ductPlastic
    Bending strengthPliable
    Material insulationElastomer (PES)
    Outside colourGrey
    Anti-bacterial model
    Wall thickness duct0.5 mm
    Material quality ductPolyethylene (PE)
    Insulation thickness9 mm
    Length10000 cm
    Antistatic version
    Connection 2Other
    Nominal duct width138 mm
    Connection 1Other
    Material ductPlastic
    Bending strengthPliable
    Equivalent duct diameter71.7 mm
    Heat resistance Rd0.27 (m².K)/W
    With push-on profile
    Insulation thickness9 mm
    Material ductPlastic
    Perforated inner wall
    Antistatic version
    Outside colourBlack
    Insulation thickness9 mm
    With push-on clamp
    Connection 1Other
    With push-on profile
    Production methodOther
    Nominal duct height51 mm
    Max. medium temperature (continuous)60 °C
    Length10000 cm
    ModelExternally insulated duct
    Equivalent duct diameter71.7 mm
    Inner surface protectionUntreated
    Outer surface protectionUntreated
    Production methodOther
    Wall thickness duct0.5 mm
    ModelExternally insulated duct
    Material insulationElastomer (PES)
    Surface protection internalUntreated
    With push-on clamp
    Outer surface protectionUntreated
    Inner surface protectionUntreated
    Embeddable in concrete
    Max. medium temperature (continuous)60 °C
    Nominal duct height51 mm
    Bending strengthPliable
    Nominal duct width138 mm
    Heat resistance Rd0.27 (m².K)/W
    Connection 2Other
    Length10000 cm
    Material insulationOther
    Embeddable in concrete
    Material ductPlastic
