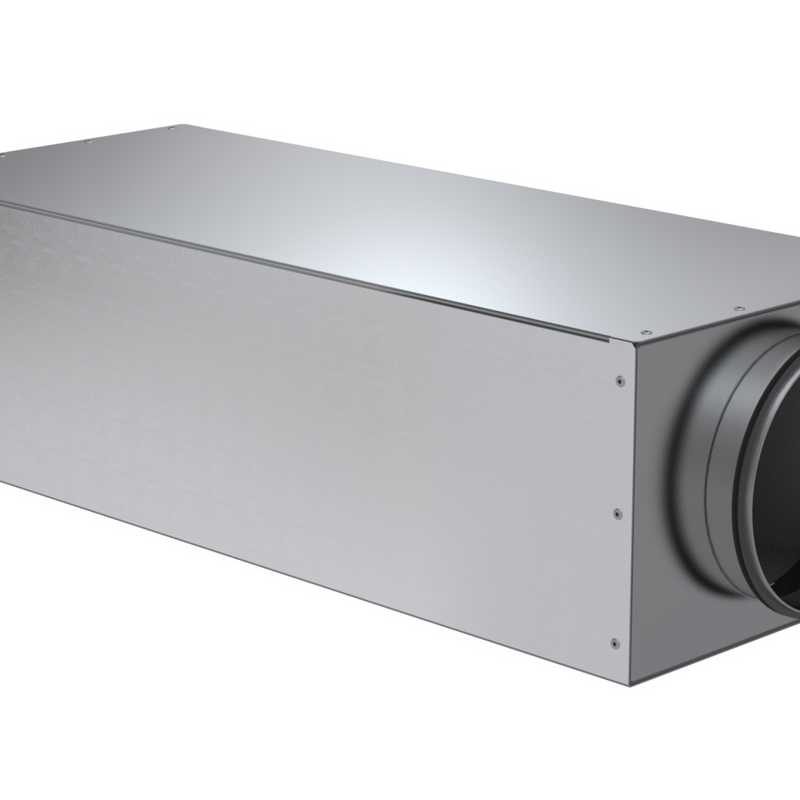

Attenuator, CSI, ø 180mm centric, length 700mm

Data Table

Label	Value
Catalogue number	990318242
GTIN	7630015248840
Material outer pipe	Sendzimir-galvanised steel
Damping 2000 Hz	21.4 dB
Max. medium temperature (continuous)	60 °C
With protection cloth
Working length	700 mm
With core/cone
Insulation thickness	20 mm
Damping 500 Hz	19.3 dB
Damping 250 Hz	17.7 dB
Damping 125 Hz	9.8 dB
Damping 4000 Hz	30.3 dB
Connection 2	Insert end
Flexible
Max. medium temperature (continuous)	60 °C
Connection 2	Insert end
Material outer pipe	Sendzimir-galvanised steel
Damping 250 Hz	17.7 dB
Vapour inhibition layer
Damping 125 Hz	9.8 dB
Connection 1	Insert end
Damping 63 Hz	8.6 dB
Damping 4000 Hz	30.3 dB
Damping 8000 Hz	25.7 dB
Damping 2000 Hz	21.4 dB
With pre-mounted seal
Damping 1000 Hz	23.5 dB
Connection 1	Insert end
Damping 500 Hz	19.3 dB
Nominal duct diameter	180 mm
Insulation thickness	20 mm
Damping 8000 Hz	25.7 dB
Working length	700 mm
Damping 63 Hz	8.6 dB
Vapour inhibition layer
Material insulating material	Other
Insulating material	Other
Flexible
With protection cloth
With core/cone
Nominal duct diameter	180 mm
With pre-mounted seal
Damping 1000 Hz	23.5 dB
