Article no. 990318245

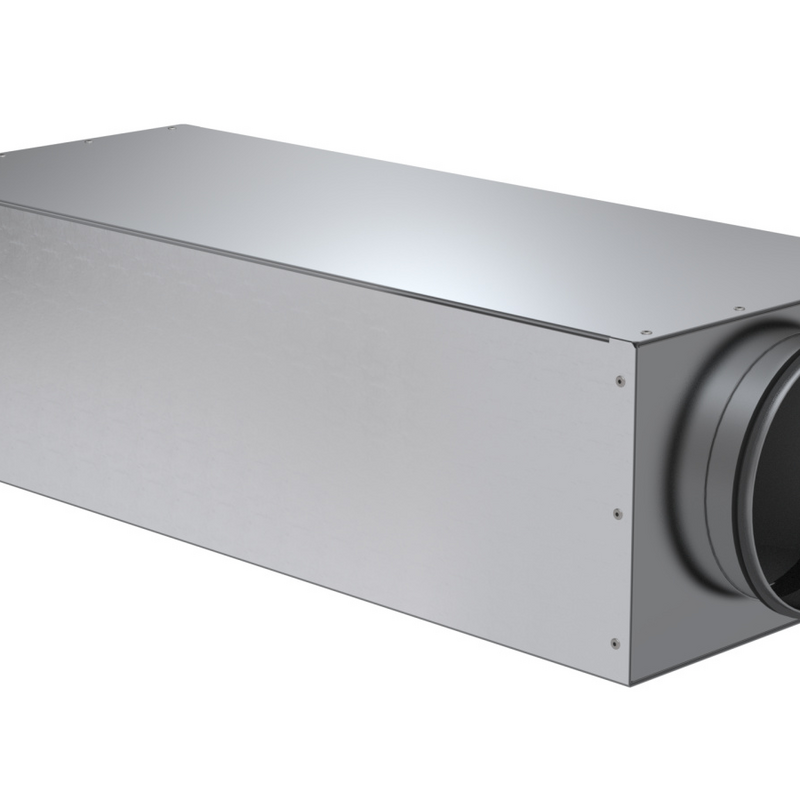

Attenuator, CSI, ø 160mm, length 700mm

    Get in touch

    Data Table

    LabelValue
    Catalogue number 990318245
    GTIN 7630015248109
    Production model COMFOSILENCE 350 16/16
    Damping 63 Hz 4.3 dB
    Damping 8000 Hz 18.2 dB
    With protection cloth
    Damping 2000 Hz 18.8 dB
    With core/cone
    Working length 700 mm
    Insulation thickness 20 mm
    Damping 500 Hz 13.7 dB
    Damping 250 Hz 13.3 dB
    Damping 125 Hz 9.5 dB
    Damping 4000 Hz 29.7 dB
    Connection 2 Insert end
    Flexible
    Connection 2 Insert end
    Max. medium temperature (continuous) 60 °C
    Damping 250 Hz 13.3 dB
    Material outer pipe Sendzimir-galvanised steel
    Damping 125 Hz 9.5 dB
    Vapour inhibition layer
    Connection 1 Insert end
    Max. medium temperature (continuous) 60 °C
    Damping 4000 Hz 29.7 dB
    Damping 2000 Hz 18.8 dB
    Material outer pipe Sendzimir-galvanised steel
    Damping 1000 Hz 22.1 dB
    With pre-mounted seal
    Damping 500 Hz 13.7 dB
    Connection 1 Insert end
    Insulation thickness 20 mm
    Nominal duct diameter 160 mm
    Working length 700 mm
    Damping 8000 Hz 18.2 dB
    Vapour inhibition layer
    Damping 63 Hz 4.3 dB
    Insulating material Other
    Material insulating material Other
    With protection cloth
    Flexible
    Nominal duct diameter 160 mm
    With core/cone
    With pre-mounted seal
    Damping 1000 Hz 22.1 dB
