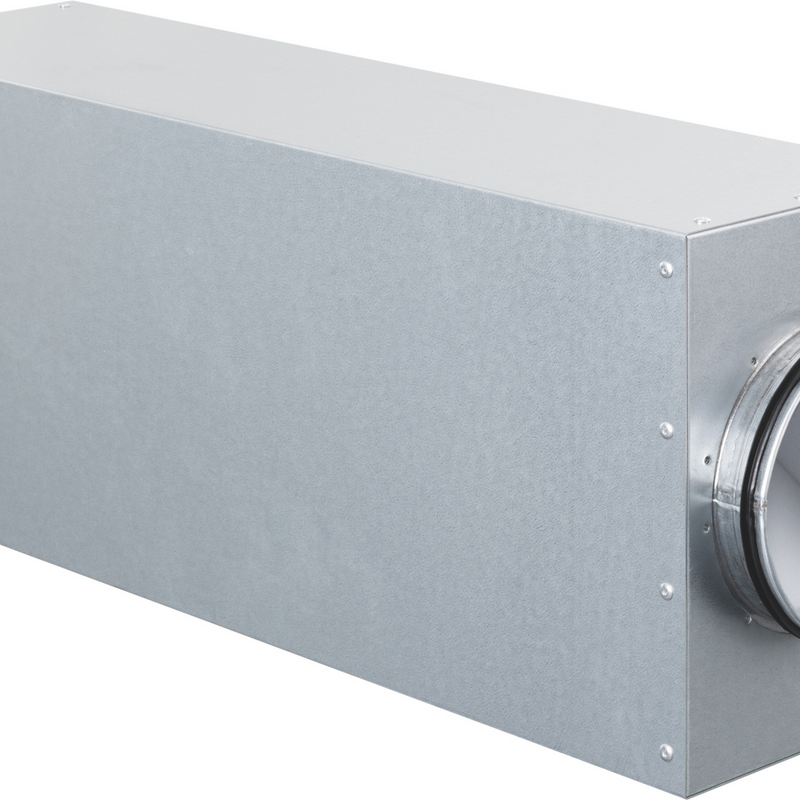

Attenuator, CSI, ø 125mm, length 700mm

Data Table

Label	Value
Catalogue number	990318243
GTIN	7630015248123
With pre-mounted seal
Damping 63 Hz	7.4 dB
Damping 8000 Hz	26.3 dB
With protection cloth
Damping 8000 Hz	26.3 dB
Material insulating material	Other
Working length	700 mm
Insulation thickness	20 mm
Damping 500 Hz	23.6 dB
Damping 250 Hz	14.9 dB
Damping 125 Hz	9.3 dB
Damping 4000 Hz	30.5 dB
Connection 1	Insert end
Flexible
Nominal duct diameter	125 mm
Connection 2	Insert end
Damping 63 Hz	7.4 dB
Damping 250 Hz	14.9 dB
Damping 2000 Hz	24.1 dB
Damping 125 Hz	9.3 dB
Nominal duct diameter	125 mm
Connection 1	Insert end
Max. medium temperature (continuous)	60 °C
Damping 4000 Hz	30.5 dB
Damping 2000 Hz	24.1 dB
Material outer pipe	Sendzimir-galvanised steel
Damping 1000 Hz	29.8 dB
Connection 2	Insert end
Damping 500 Hz	23.6 dB
Insulation thickness	20 mm
With core/cone
Working length	700 mm
Max. medium temperature (continuous)	60 °C
Vapour inhibition layer
Insulating material	Other
Material outer pipe	Sendzimir-galvanised steel
Damping 1000 Hz	29.8 dB
