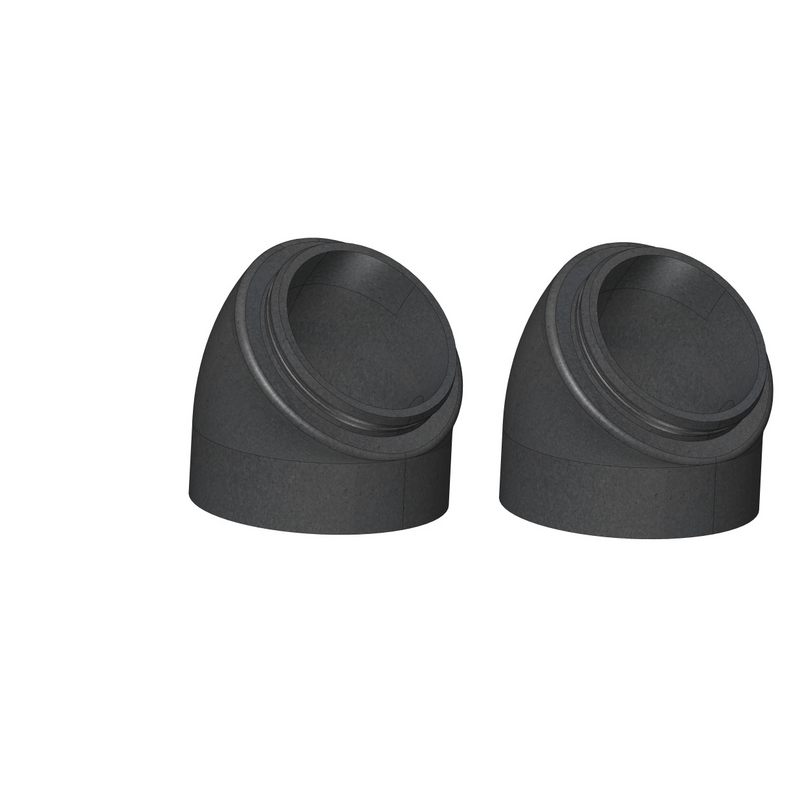

ComfoPipe Plus bend DN160 set, connector for ComfoAir Q 350/450 SLN, black, EPP, 2 pc
Article no. 990328704

Zehnder ComfoPipe Plus ø 160mm, 45° bend adaptor for Zehnder ComfoAir Flex 250/350, 2 Pieces.

    Get in touch

    Data Table

    LabelValue
    Catalogue number990328704
    GTIN7640138036446
    Working length connection 2122 mm
    With push-on clamp
    Bend radius (number x D)1.5
    Insert length60 mm
    Bend angle45 °
    Bend radius (number x D)1.5
    Connection 1Other
    Material insulationExpanded polypropylene (EPP)
    Outside colourBlack
    Anti-bacterial model
    Wall thickness duct43 mm
    Material quality ductPolypropylene (PP)
    Air tightness class according to EN 1751C
    Surface protection internalUntreated
    Antistatic version
    Embeddable in concrete
    Connection 2Other
    Connection 2Other
    Connection 1Other
    Production methodOther
    Insulation thickness43 mm
    Inner surface protectionUntreated
    Bend angle45 °
    Material quality ductPolypropylene (PP)
    Air tightness class according to EN 1751C
    Antistatic version
    Perforated inner wall
    Insulation thickness43 mm
    Outside colourBlack
    Bend modelSmooth bend
    With push-on clamp
    Outer surface protectionUntreated
    With push-on profile
    Insert length60 mm
    Working length connection 183 mm
    With pre-mounted seal
    Nominal duct diameter160 mm
    Material insulationExpanded polypropylene (EPP)
    Working length connection 2122 mm
    Nominal duct diameter160 mm
    ModelHard foam duct (full insulation)
    Material ductPlastic
    Bend modelSmooth bend
    Wall thickness duct43 mm
    Outer surface protectionUntreated
    With push-on profile
    Production methodOther
    Perforated inner wall
    ModelHard foam duct (full insulation)
    With pre-mounted seal
    Working length connection 183 mm
    Embeddable in concrete
    Material ductPlastic
