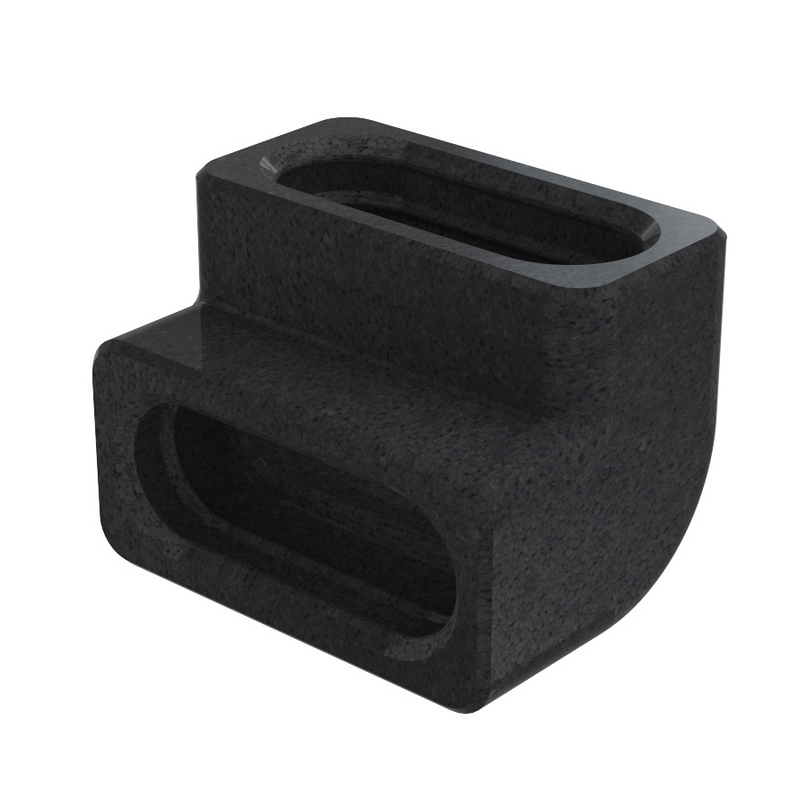

ComfoFit Therm bend Flat 51 vertical, for ComfoTube Therm Flat 51, 90°, black, EPP, including seals
Article no. 990430850

Zehnder ComfoFit Therm insulated Flat 51, vertical 90° bend

    Get in touch

    Data Table

    LabelValue
    Catalogue number 990430850
    GTIN 7613367025475
    With pre-mounted seal
    Connection 1 Slide sleeve
    Insert length 40 mm
    Material duct Plastic
    Antistatic version
    Material quality duct Polypropylene (PP)
    With push-on clamp
    Heat resistance Rd 0.51 (m².K)/W
    Insulation thickness 20 mm
    Material insulation Expanded polypropylene (EPP)
    Antistatic version
    Anti-bacterial model
    Wall thickness duct 20 mm
    Equivalent duct diameter 71.7 mm
    Air tightness class according to EN 1751 D
    Bend angle 90 °
    Perforated inner wall
    Material insulation Expanded polypropylene (EPP)
    Outside colour Black
    Inner surface protection Untreated
    With push-on clamp
    Bend angle 90 °
    With push-on profile
    Heat resistance Rd 0.51 (m².K)/W
    Working length connection 1 83 mm
    Outside colour Black
    Working length connection 2 83 mm
    Working length connection 2 83 mm
    Insulation thickness 20 mm
    Nominal duct width 127 mm
    Bend model Smooth bend
    Working length connection 1 83 mm
    Outer surface protection Untreated
    Material quality duct Polypropylene (PP)
    Production method Seamless
    With push-on profile
    Model Hard foam duct (full insulation)
    Outer surface protection Untreated
    Embeddable in concrete
    Bend model Smooth bend
    Change of direction Vertical
    Perforated inner wall
    Nominal duct height 52 mm
    Model Hard foam duct (full insulation)
    Insert length 50 mm
    Change of direction Vertical
    Nominal duct width 140 mm
    Connection 2 Slide sleeve
    With pre-mounted seal
    Air tightness class according to EN 1751 D
    Connection 2 Insert end
    Nominal duct height 35 mm
    Connection 1 Insert end
    Nominal duct width 127 mm
    Working length connection 1 83 mm
    Equivalent duct diameter 75.83 mm
    Production method Seamless
    Inner surface protection Untreated
    Embeddable in concrete
    Insert length 40 mm
    Bend angle 90 °
    Nominal duct height 35 mm
    Equivalent duct diameter 71.7 mm
    Working length connection 2 83 mm
    Wall thickness duct 20 mm
    Insulation thickness 20 mm
    Material duct Plastic
