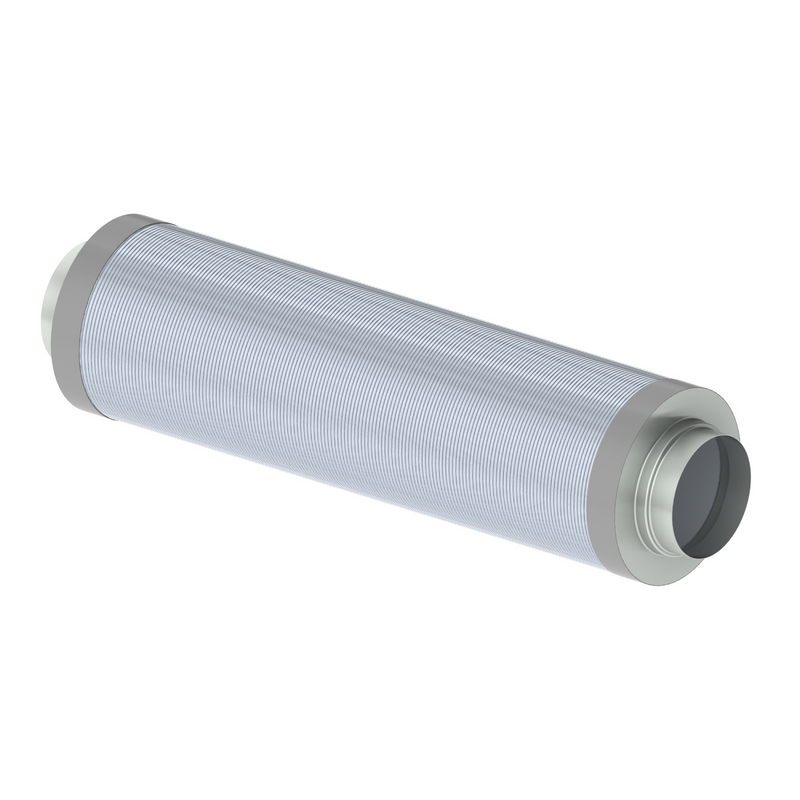

ComfoSilence flexible attenuator DN180, length 1000 mm, flexible
Article no. 990318034

Attenuator, Flexible, ø 180mm, length 1000mm

    Get in touch

    Data Table

    LabelValue
    Catalogue number990318034
    GTIN7640129219896
    With pre-mounted seal
    Material outer pipeAluminium
    Outer diameter280 mm
    Damping 2000 Hz28 dB
    Nominal duct diameter180 mm
    Max. medium temperature (continuous)200 °C
    Flexible
    Damping 500 Hz19 dB
    Working length1000 mm
    Damping 250 Hz10 dB
    Damping 125 Hz4 dB
    Damping 4000 Hz18 dB
    Connection 1Insert end
    Connection 2Insert end
    Damping 250 Hz10 dB
    With core/cone
    Damping 125 Hz4 dB
    Material insulating materialGlass wool
    Connection 1Insert end
    Max. medium temperature (continuous)200 °C
    Damping 4000 Hz18 dB
    Damping 8000 Hz17 dB
    Damping 2000 Hz28 dB
    Material inner pipeAluminium
    Damping 1000 Hz36 dB
    Free passage100 m²
    Damping 500 Hz19 dB
    Connection 2Insert end
    Working length1000 mm
    Material inner pipeAluminium
    Vapour inhibition layer
    Free passage100 m²
    Insulating materialGlass wool
    Inner diameter180 mm
    With protection cloth
    Damping 8000 Hz17 dB
    Nominal duct diameter180 mm
    Material outer pipeAluminium
    Damping 1000 Hz36 dB
