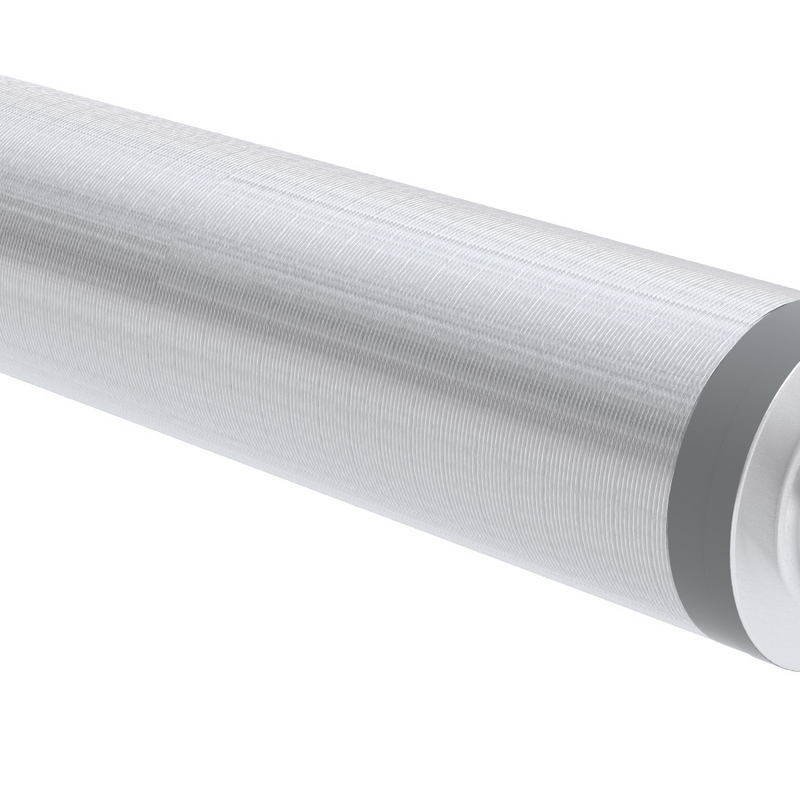

ComfoSilence flexible attenuator DN125, length 1000 mm, flexible
Article no. 990318031

Attenuator, Flexible, ø 125mm, length 1000mm

    Data Table

    LabelValue
    Catalogue number 990318031
    GTIN 7640129219865
    Damping 8000 Hz 28 dB
    Material inner pipe Aluminium
    With protection cloth
    Damping 2000 Hz 45 dB
    Inner diameter 125 mm
    Working length 1000 mm
    Material inner pipe Aluminium
    Insulation thickness 50 mm
    Damping 500 Hz 24 dB
    Damping 250 Hz 13 dB
    Damping 125 Hz 7 dB
    Damping 4000 Hz 29 dB
    Free passage 100 %
    Connection 2 Insert end
    Flexible
    Free passage 100 %
    Connection 2 Insert end
    Damping 8000 Hz 28 dB
    Damping 250 Hz 13 dB
    Material outer pipe Aluminium
    Damping 125 Hz 7 dB
    Vapour inhibition layer
    Connection 1 Insert end
    Damping 4000 Hz 29 dB
    Material outer pipe Aluminium
    Damping 2000 Hz 45 dB
    Outer diameter 225 mm
    Damping 1000 Hz 41 dB
    With pre-mounted seal
    Damping 500 Hz 24 dB
    Connection 1 Insert end
    Insulation thickness 50 mm
    Working length 1000 mm
    Nominal duct diameter 125 mm
    Vapour inhibition layer
    With core/cone
    Insulating material Glass wool
    Max. medium temperature (continuous) 200 °C
    With protection cloth
    Material insulating material Glass wool
    Nominal duct diameter 125 mm
    Flexible
    With core/cone
    Max. medium temperature (continuous) 200 °C
    With pre-mounted seal
    Damping 1000 Hz 41 dB
