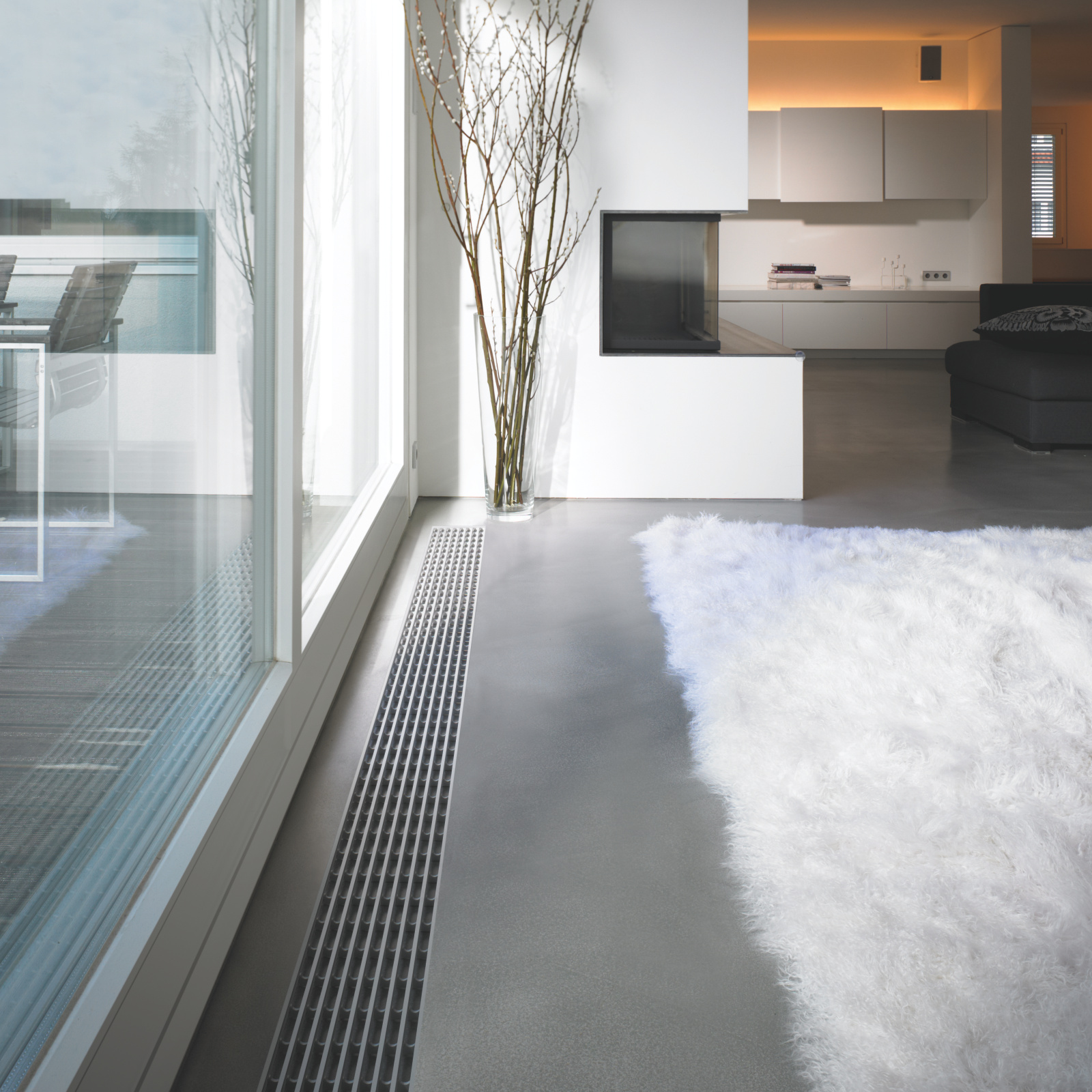

Rendering Zehnder Terraline Decorative radiator Top view

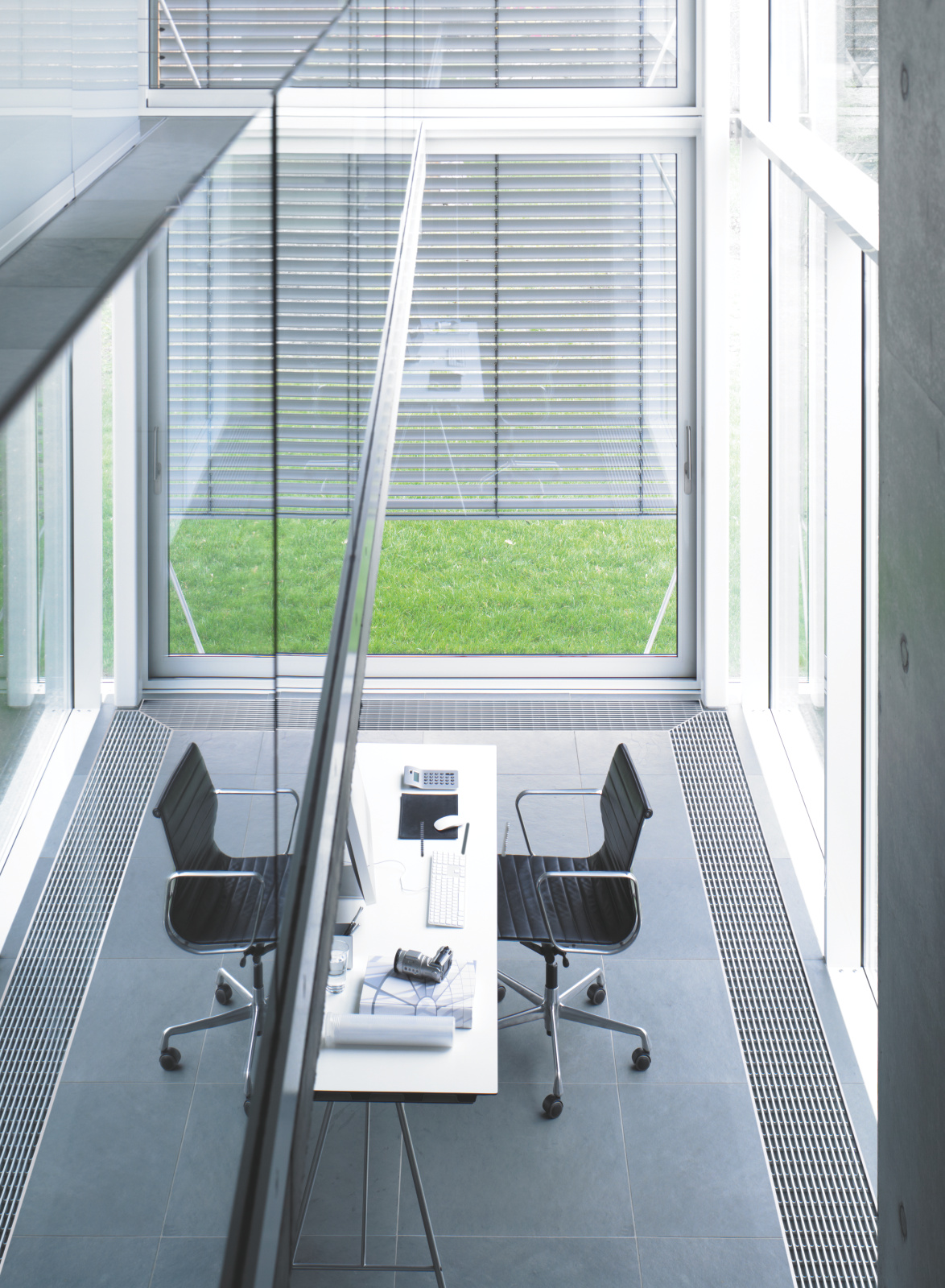

Rendering Zehnder Terraline Decorative radiator Top view

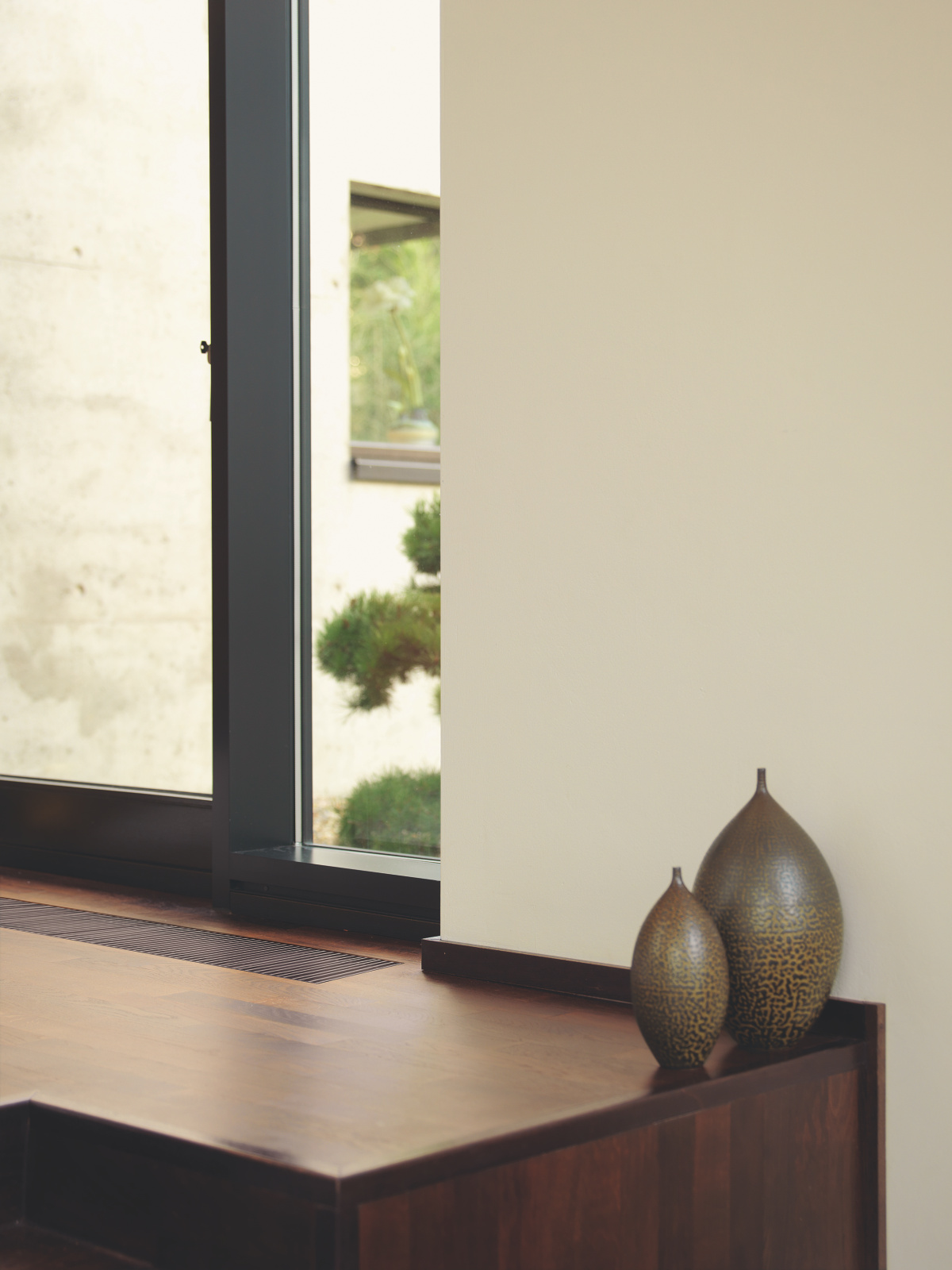

Rendering Zehnder Terraline Decorative radiator
Trench Heaters

Zehnder
Terraline

Hydronic operation
    Get in touch

    The Zehnder Terraline trench heater offers an elegant alternative wherever free-standing radiators should be avoided for reasons of aesthetics or underfloor heating is not possible. All that is visible is the frame, complete with integrated decorative grille. Zehnder Terraline utilises the rising warm air to create pleasant, natural warmth. The trench heater is ideal for use where there are large areas of full height glazing.

    Show more

    Benefits

    • Aluminium and copper construction enable short response times for fast heating of rooms

    • Invisible heating power, built in to the floor

    • Built-in floor construction makes it ideal for use in front of large windows

    • Silent operation makes it suitable for different areas of application

    • Wide range of models supports versatile use

    • Hidden connection technology in the floor

    • High thermal output means rooms are heated up rapidly

    • High thermal output means that even large rooms are heated up rapidly

    • Combines with Zehnder Comfosystems for comfortable indoor ventilation

    • Powerful heat exchanger is compatible with heat pump and/or low temperature systems

    • Special solutions support a wide range of application, such as curved or angled options, or versions with cut-outs

    • The grille can be walked on and ensures the necessary stability

    • With several designs available, the decorative grille and frame make it possible to create an individual look

    • High level of thermal output also for old buildings with a high heat load

    • An alternative in old buildings where radiators should be avoided or underfloor heating is not possible

    Show more

    Technical data

    Connection to hot water central heating system

    All models
    Technical specifications for length 1000 mm
    Model H T Heat output
    75/65/20 °C 70/55/24 °C 55/45/20 °C 55/45/24 °C
    mm mm W W W W
    UN-09-17 90 170 143 98 67.8 55
    UN-09-21 90 215 199 137 95.3 78
    UN-09-25 90 255 252 176 125 103
    UN-09-34 90 340 300 209 148 122
    UN-09-42 90 420 350 244 173 142
    UN-11-17 110 170 173 118 81.6 66
    UN-11-21 110 215 218 145 98.7 79
    UN-11-25 110 255 295 201 140 114
    UN-11-34 110 340 381 264 186 153
    UN-11-42 110 420 424 294 207 170
    UN-14-17 145 170 177 120 82.6 67
    UN-14-21 145 215 231 156 107 87
    UN-14-25 145 255 338 232 162 132
    UN-14-34 145 340 501 345 241 197
    UN-14-42 145 420 613 425 300 245
    UN-19-17 190 170 200 136 93.9 76
    UN-19-21 190 215 276 185 126 101
    UN-19-25 190 255 328 226 159 130
    UN-19-34 190 340 518 353 244 198
    UN-19-42 190 420 725 495 344 279
    H = height, T = depth
    75/65/20 = Nominal heat output according to EN 442
