model 432-1200, S076, RAL 9016
Radiavektor 014

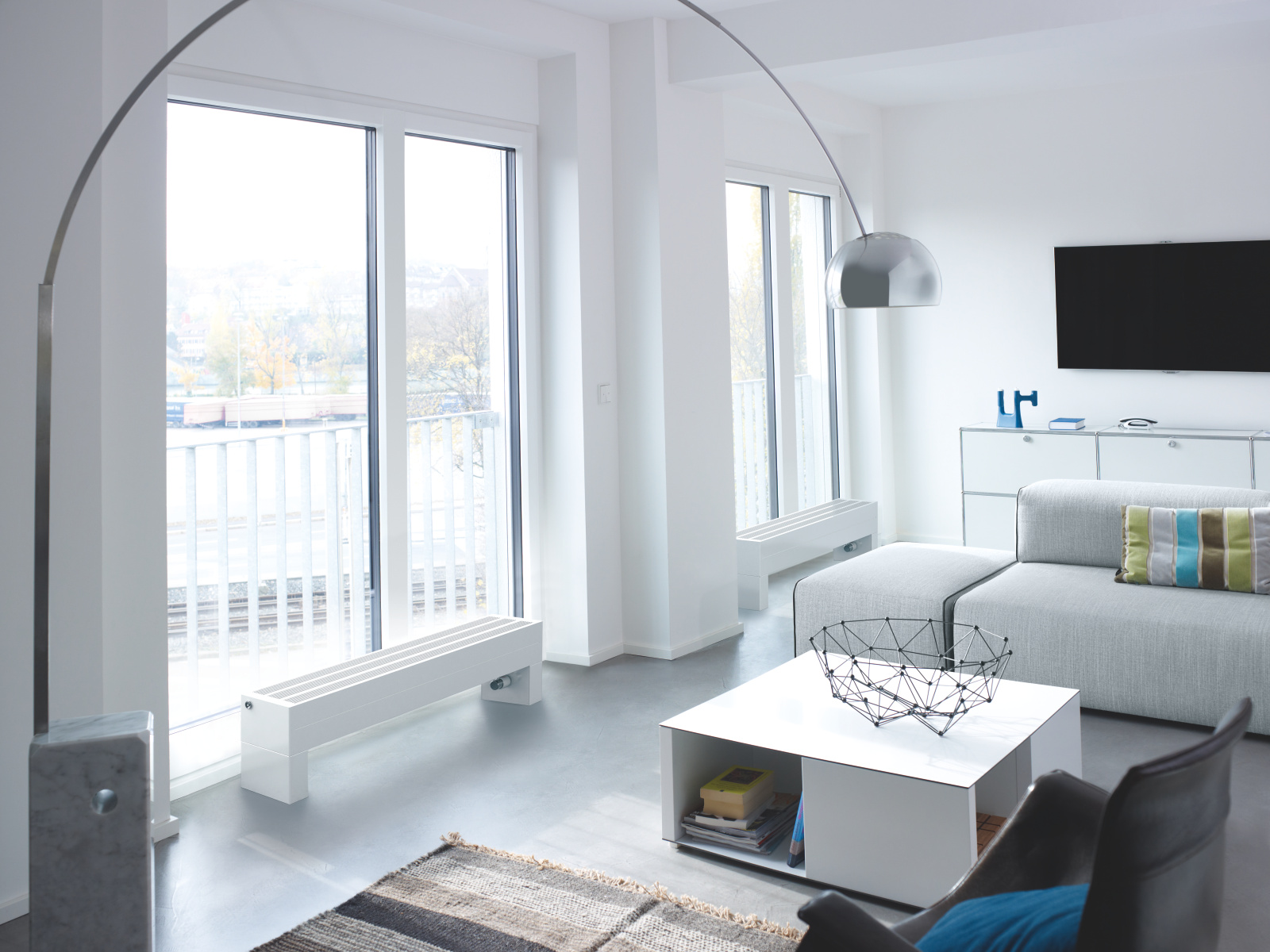

model 322, S076, RAL 9016

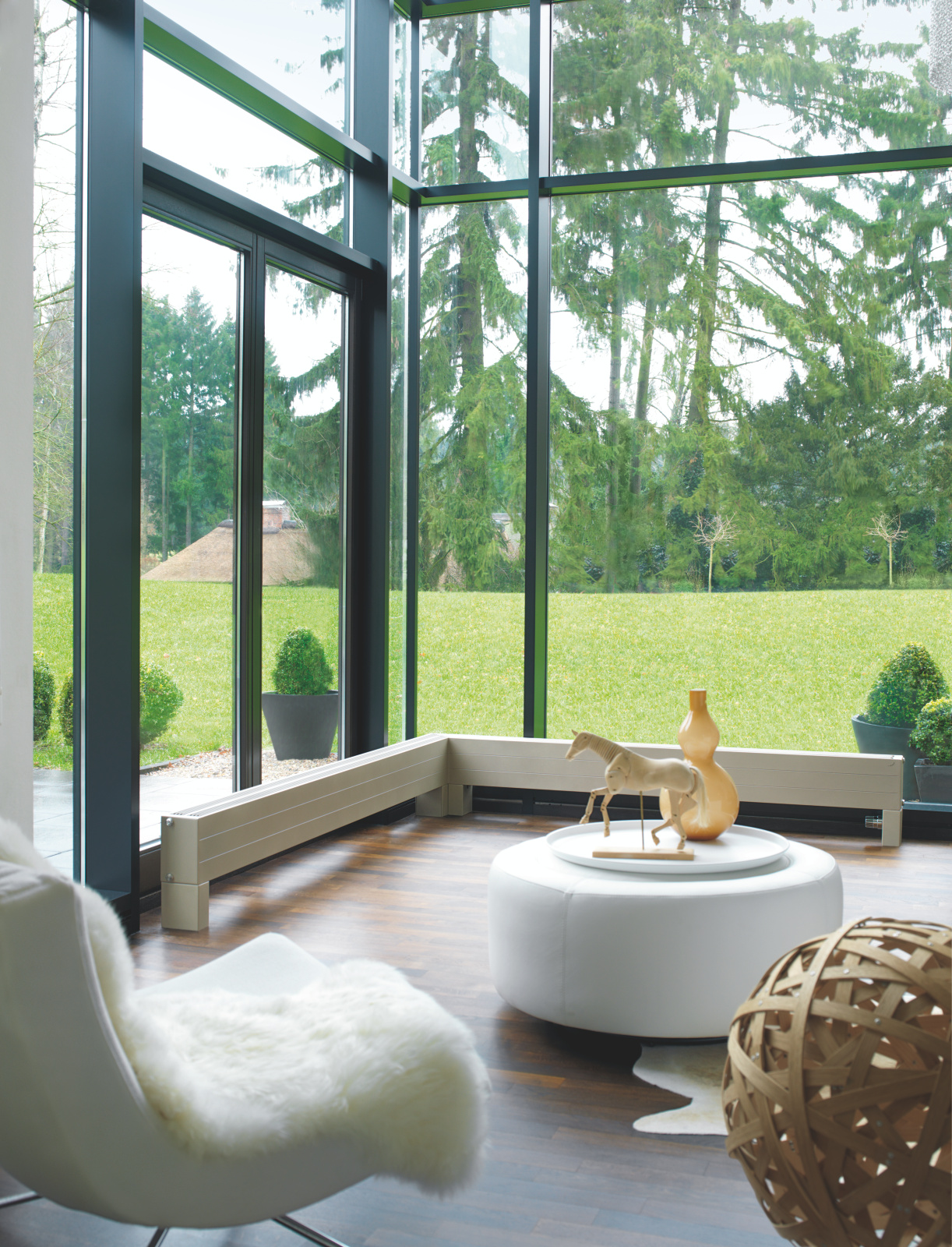

RV, thermostat LH 2, WOF, welded-on feet, 4-pipe version with WVO thermal radiation shield, finished floor mounting, living room, window front, winter garden
Hydronic Radiators

Zehnder
Radiavector

Hydronic operation
    Get in touch

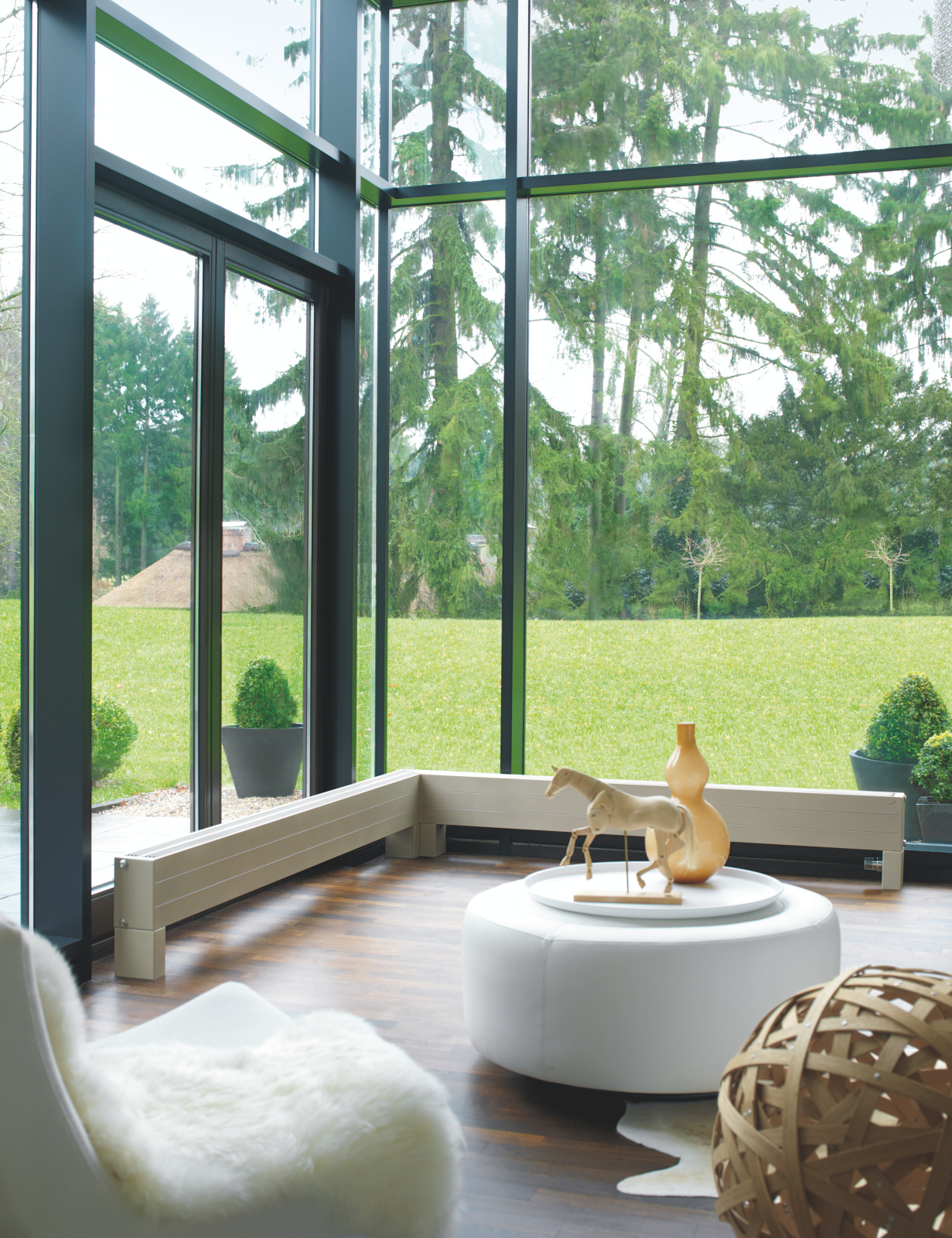

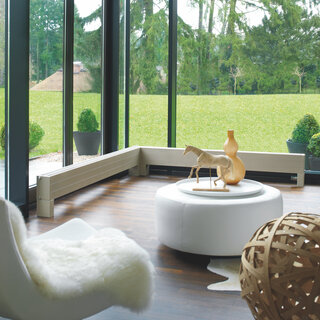

    Compact, powerful and simple. Because of its high heat output, the Zehnder Radiavector convector is ideal in window bays or conservatories. Its low height also makes it an aesthetic choice. Corner and special solutions are readily available. Available in almost any colour and finish from the Zehnder colour chart, plus many other colours besides.

    Show more

    Benefits

    • Closed design due to compact construction

    • Short response time means rooms can be heated up rapidly

    • High thermal output means large rooms are heated up rapidly

    • Special solutions support a wide range of application, such as angled

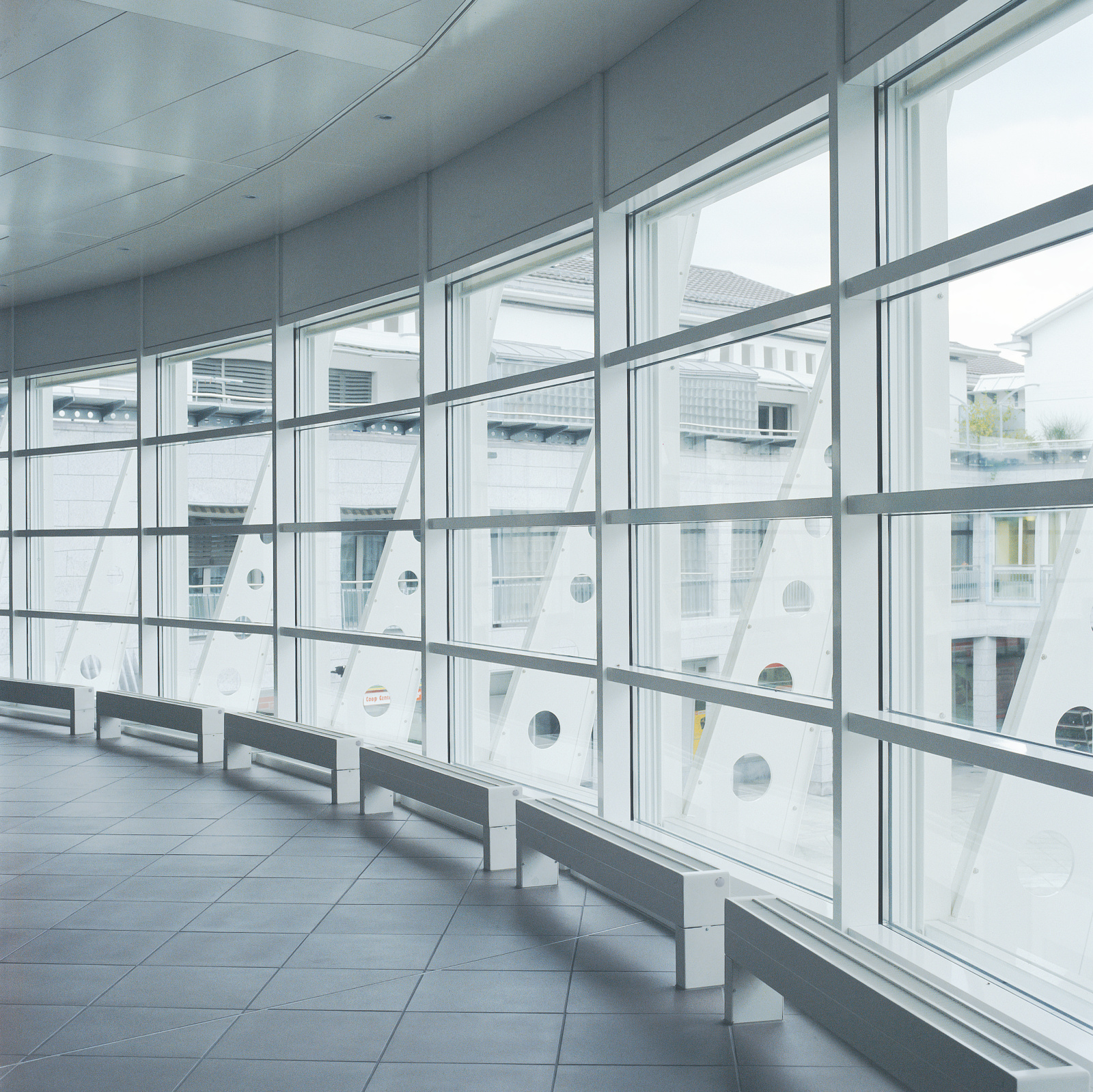

    • Low height, ideal for use in front of glass fronts

    • Welded foot support available on request, for concealed connection from below

    Show more

    Colour System

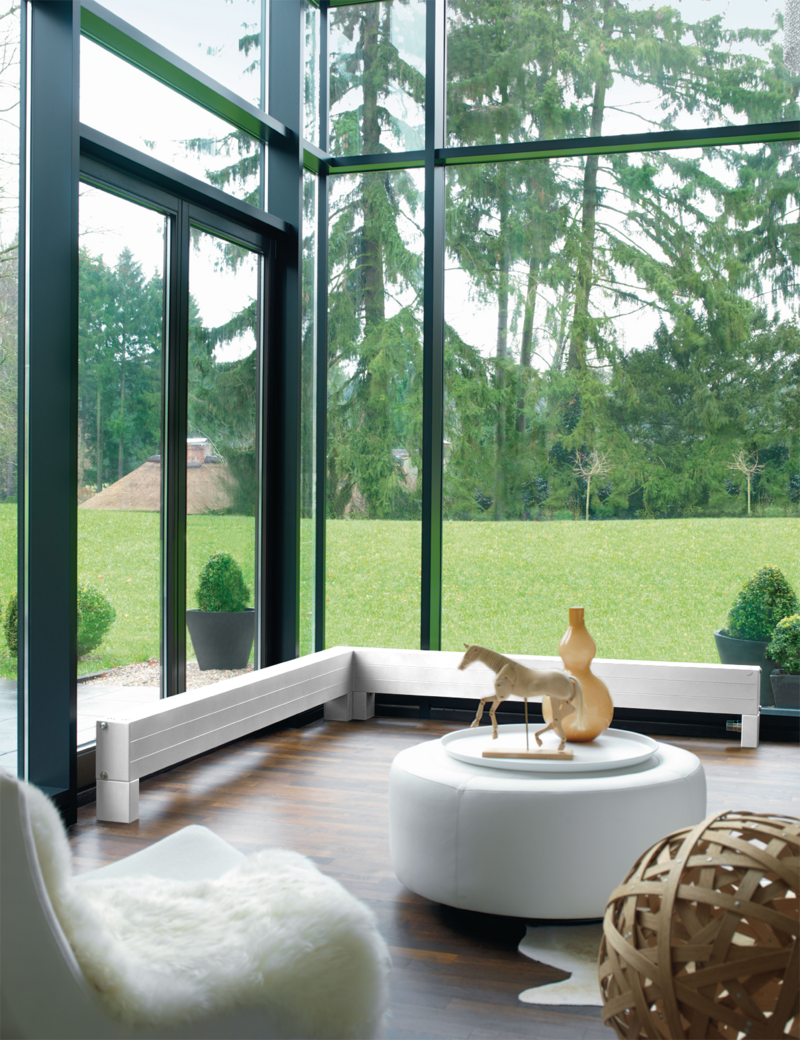

    Zehnder Radiavector - Hydronic operation
    Traffic White (9016* / RAL 9016)
    Standard
    Traffic White (9016* / RAL 9016)
    Warm Colors Core
    White Quartz (0521*)
    Pure White (9010* / RAL 9010)
    Cement Grey (7233 / RAL 7033)
    Edelweiss (0067)
    Cream (9001* / RAL 9001)
    Telegrey 4 (7247 / RAL 7047)
    Beige Quartz (0523*)
    Golden Sand (0258)
    Yellow Grey (7234 / RAL 7034)
    Pearl Beige (1235 / RAL 1035)
    Beach Gold (0272)
    Concrete Grey (0265)
    Beige Grey (0267)
    Bronze (0276)
    Brown Quartz (0529*)
    Dark Brown (0270)
    Grey Aluminium (9007*)
    Anthracite (0346*)
    Umbra Grey (7222 / RAL 7022)
    Volcanic (0336*)
    Warm Colors Trends
    Pastel Green (6219 / RAL 6019)
    Reseda Green (6211 / RAL 6011)
    Olive Green (6203 / RAL 6003)
    Terracotta Faded (0299)
    Terracotta (0292)
    Ruby Red (3003* / RAL 3003)
    Cool Colors Core
    White Matt (0556)
    Light Beige (0253)
    Light Grey (0262)
    White Aluminium (9006*)
    Light Jeans (0264)
    Titane (0335*)
    Inox Look (0332*)
    Telegrey 2 (7246 / RAL 7046)
    Blue Grey (7231 / RAL 7031)
    Anthracite Grey (7016* / RAL 7016)
    Black Quartz (0550*)
    Black Matt (0557)
    Traffic Black (9217 / RAL 9017)
    Jet Black (9005* / RAL 9005)
    Cool Colors Trends
    Pastel Blue (5224 / RAL 5024)
    Pigeon Blue (5214 / RAL 5014)
    Gentian Blue (5210 / RAL 5010)
    Sapphire Blue (5203 / RAL 5003)
    Blue Night (0289)
    Traffic White (9016* / RAL 9016)
    White Quartz (0521*)
    Pure White (9010* / RAL 9010)
    Cement Grey (7233 / RAL 7033)
    Edelweiss (0067)
    Cream (9001* / RAL 9001)
    Telegrey 4 (7247 / RAL 7047)
    Beige Quartz (0523*)
    Golden Sand (0258)
    Yellow Grey (7234 / RAL 7034)
    Pearl Beige (1235 / RAL 1035)
    Beach Gold (0272)
    Concrete Grey (0265)
    Beige Grey (0267)
    Bronze (0276)
    Brown Quartz (0529*)
    Dark Brown (0270)
    Grey Aluminium (9007*)
    Anthracite (0346*)
    Umbra Grey (7222 / RAL 7022)
    Volcanic (0336*)
    Pastel Green (6219 / RAL 6019)
    Reseda Green (6211 / RAL 6011)
    Olive Green (6203 / RAL 6003)
    Terracotta Faded (0299)
    Terracotta (0292)
    Ruby Red (3003* / RAL 3003)
    White Matt (0556)
    Light Beige (0253)
    Light Grey (0262)
    White Aluminium (9006*)
    Light Jeans (0264)
    Titane (0335*)
    Inox Look (0332*)
    Telegrey 2 (7246 / RAL 7046)
    Blue Grey (7231 / RAL 7031)
    Anthracite Grey (7016* / RAL 7016)
    Black Quartz (0550*)
    Black Matt (0557)
    Traffic Black (9217 / RAL 9017)
    Jet Black (9005* / RAL 9005)
    Pastel Blue (5224 / RAL 5024)
    Pigeon Blue (5214 / RAL 5014)
    Gentian Blue (5210 / RAL 5010)
    Sapphire Blue (5203 / RAL 5003)
    Blue Night (0289)
    * These colours / surfaces are glossy, all others matt.
    Despite extreme care in the painting process of our radiators, slight colour deviations are possible, depending on the production series and compared to other colour carriers (ceramic, paper, metal, ...) as well as screen display.
    RAL and NCS are manufacturer's designations.

    Technical data

    Connection to hot water central heating system

    All models
    Technical specifications for length 1000 mm
    Model H T Heat output
    75/65/20 °C 70/55/24 °C 55/45/24 °C 55/45/20 °C
    mm mm Watts Watts Watts Watts
    RV212 140 73 524 373 224 270
    RV213 210 73 683 486 292 352
    RV214 280 73 826 588 353 425
    RV221 70 104 435 309 185 223
    RV222 140 104 693 493 296 357
    RV223 210 104 900 642 386 465
    RV224 280 104 1077 769 464 558
    RV321 70 134 578 412 248 298
    RV322 140 134 903 643 387 466
    RV323 210 134 1176 838 503 606
    H = height, T = depth
    75/65/20 = Nominal heat output according to EN 442
    Models 2-column
    Model H T Heat output
    75/65/20 °C 70/55/24 °C 55/45/24 °C 55/45/20 °C
    mm mm Watts Watts Watts Watts
    ZRV211 70 73 336 – – 173
    ZRV212 140 73 524 373 224 270
    ZRV213 210 73 683 486 292 352
    ZRV214 280 73 826 588 353 425
    ZRV221 70 104 435 309 185 223
    ZRV222 140 104 693 493 296 357
    ZRV223 210 104 900 642 386 465
    ZRV224 280 104 1077 769 464 558
    H = height, T = depth
    75/65/20 = Nominal heat output according to EN 442
    Models 3-column
    Model H T Heat output
    75/65/20 °C 70/55/24 °C 55/45/24 °C 55/45/20 °C
    mm mm Watts Watts Watts Watts
    ZRV321 70 134 578 412 248 298
    ZRV322 140 134 903 643 387 466
    ZRV323 210 134 1176 838 503 606
    ZRV324 280 134 1422 – – 732
    H = height, T = depth
    75/65/20 = Nominal heat output according to EN 442
    Models 4-column
    Model H T Heat output
    75/65/20 °C 70/55/24 °C 55/45/24 °C 55/45/20 °C
    mm mm Watts Watts Watts Watts
    ZRV431 70 195 809 – – 413
    ZRV432 140 195 1263 – – 645
    ZRV433 210 195 1645 – – 840
    ZRV434 280 195 1990 – – 1016
    H = height, T = depth
    75/65/20 = Nominal heat output according to EN 442
    Models 5-column
    Model H T Heat output
    75/65/20 °C 70/55/24 °C 55/45/24 °C 55/45/20 °C
    mm mm Watts Watts Watts Watts
    ZRV541 70 256 1028 – – 525
    ZRV542 140 256 1606 – – 820
    ZRV543 210 256 2092 – – 1069
    ZRV544 280 256 2530 – – 1292
    H = height, T = depth
    75/65/20 = Nominal heat output according to EN 442
    Models 2-column, with thermal radiation shield
    Model H T Heat output
    75/65/20 °C 70/55/24 °C 55/45/24 °C 55/45/20 °C
    mm mm Watts Watts Watts Watts
    ZRV211/1 70 134 435 309 185 223
    ZRV212/1 140 134 693 493 296 357
    ZRV213/1 210 134 900 642 386 465
    ZRV214/1 280 134 1077 769 464 558
    H = height, T = depth
    75/65/20 = Nominal heat output according to EN 442
    Models 3-column, with thermal radiation shield
    Model H T Heat output
    75/65/20 °C 70/55/24 °C 55/45/24 °C 55/45/20 °C
    mm mm Watts Watts Watts Watts
    ZRV321/1 70 195 666 474 284 342
    ZRV322/1 140 195 1060 755 453 546
    ZRV323/1 210 195 1378 983 592 712
    ZRV324/1 280 195 1648 1177 710 854
    H = height, T = depth
    75/65/20 = Nominal heat output according to EN 442
    Models 4-column, with thermal radiation shield
    Model H T Heat output
    75/65/20 °C 70/55/24 °C 55/45/24 °C 55/45/20 °C
    mm mm Watts Watts Watts Watts
    ZRV431/1 70 256 891 634 380 457
    ZRV432/1 140 256 1417 1009 606 730
    ZRV433/1 210 256 1841 1313 790 951
    ZRV434/1 280 256 2202 1573 949 1141
    H = height, T = depth
    75/65/20 = Nominal heat output according to EN 442
    Models 5-column, with thermal radiation shield
    Model H T Heat output
    75/65/20 °C 70/55/24 °C 55/45/24 °C 55/45/20 °C
    mm mm Watts Watts Watts Watts
    ZRV541/1 70 317 1110 789 473 570
    ZRV542/1 140 317 1766 1258 755 909
    ZRV543/1 210 317 2295 1637 985 1185
    ZRV544/1 280 317 2745 1961 1183 1422
    H = height, T = depth
    75/65/20 = Nominal heat output according to EN 442
