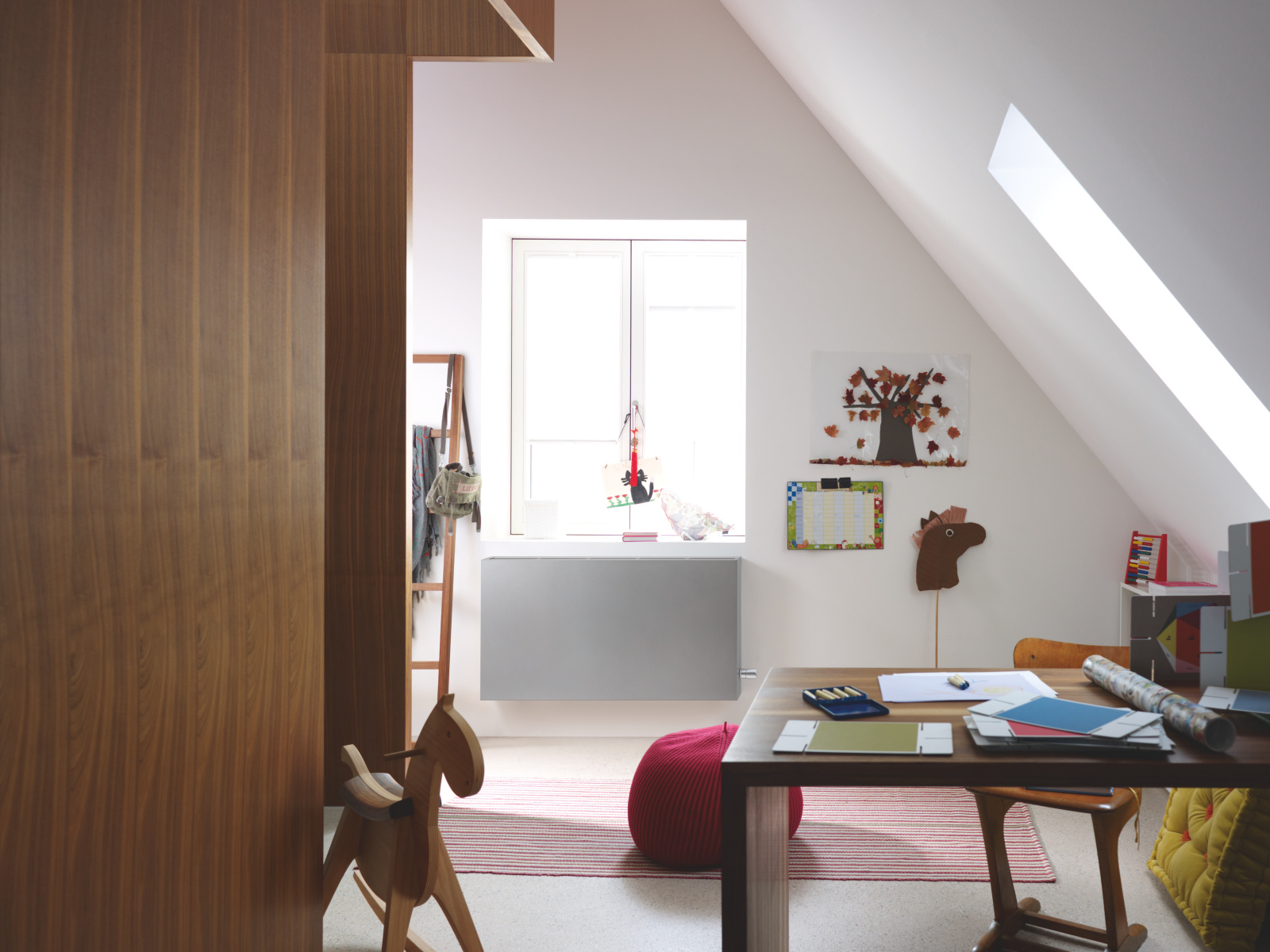

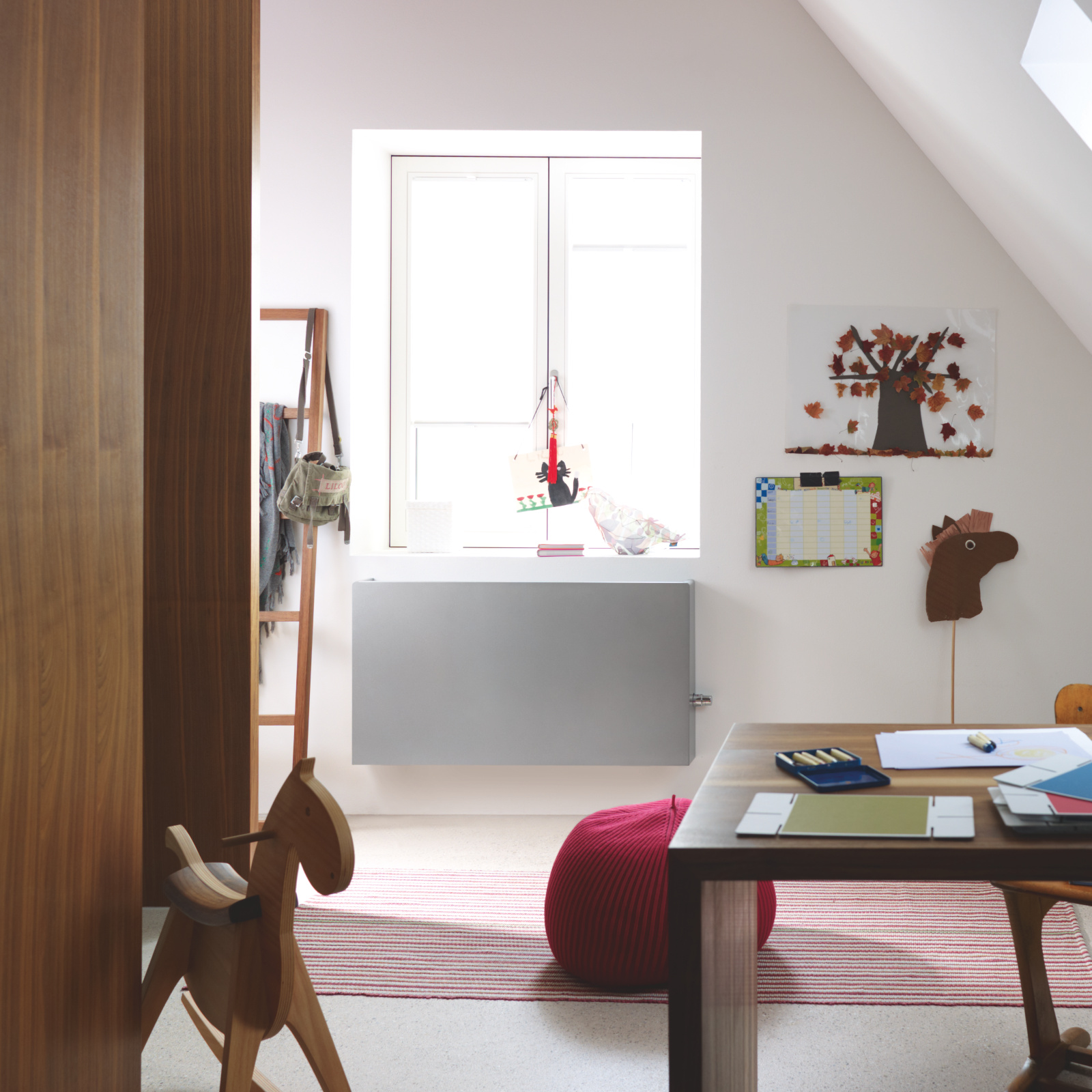

children's room, LWN060-012-1100, 600 x 120 x 1100 mm
Hydronic Radiators

Zehnder
Lateo

Hydronic operation

    The Zehnder Lateo is a natural convector heat emitter, offering a safer alternative compared to standard radiator solutions. Convection heat is emitted via the heat emitter, which is positioned behind the casing, that due to not being heated, delivers a lower touch temperature – an ideal solution for care environments, such as hospitals and nursing homes, and educational settings such as nurseries and primary schools where safety is of prime importance. Zehnder Lateo is delivered with an easy-to-install wall mounting bracket. Standard version RAL 9016, but also available in other RAL colours.

    Benefits

    • Versatile uses, for example at glazed areas or in alcoves
    • Closed design due to compact construction
    • Short response time means rooms can be heated up rapidly
    • High thermal output means large rooms are heated up rapidly
    • Invisible integrated connections
    • The mounting bracket makes it easy to install

    Technical data

    Connection to hot water central heating system

    Model H L T Heat output
    75/65/20 °C 70/55/20 °C 55/45/20 °C
    mm mm mm Watts Watts Watts
    LTN-020-008 200 2800 80 362 286 173
    LTN-020-012 200 2800 120 571 451 272
    LTN-020-018 200 2800 180 966 762 458
    LTN-020-024 200 2800 240 1386 1091 653
    LTN-030-008 300 2800 80 437 347 211
    LTN-030-012 300 2800 120 679 540 330
    LTN-030-018 300 2800 180 1152 916 560
    LTN-030-024 300 2800 240 1602 1270 771
    LTN-040-008 400 2000 80 522 415 254
    LTN-040-012 400 2000 120 774 614 374
    LTN-040-018 400 2000 180 1326 1049 635
    LTN-040-024 400 2000 240 1848 1448 858
    LTN-050-008 500 1600 80 577 459 281
    LTN-050-012 500 1600 120 863 684 416
    LTN-050-018 500 1600 180 1497 1184 717
    LTN-050-024 500 1600 240 2132 1671 991
    LTN-060-008 600 1600 80 625 492 296
    LTN-060-012 600 1600 120 950 760 471
    LTN-060-018 600 1600 180 1669 1333 823
    LTN-060-024 600 1600 240 2457 1947 1183
    H = height, L = length, T = depth
