Hydronic Radiators

Zehnder
Charleston

Hydronic operation

    The original steel tubular radiator is an efficient all-rounder that inspires through form, function and comfort. The element construction gives Zehnder Charleston its timeless appearance and elegance. This steel tubular radiator provides comfortable radiant heat and transforms the living space into an oasis of relaxation. Zehnder Charleston has an extended range of models. Available in almost any colour and finish from the Zehnder colour chart.

    Hydronic Radiators

    Zehnder Charleston - Hydronic operation

    We also offer the following technologies

    Electric operation

    Benefits

    • Multi-purpose thanks to the wide range of different connections, fittings and models

    • Classic, elegant design blends in with any setting

    • Easy cleaning with the lambswool cleaning brush from Zehnder

    • High proportion of radiation ensures comfort

    • Compatible with a heat pump and/or low-temperature systems

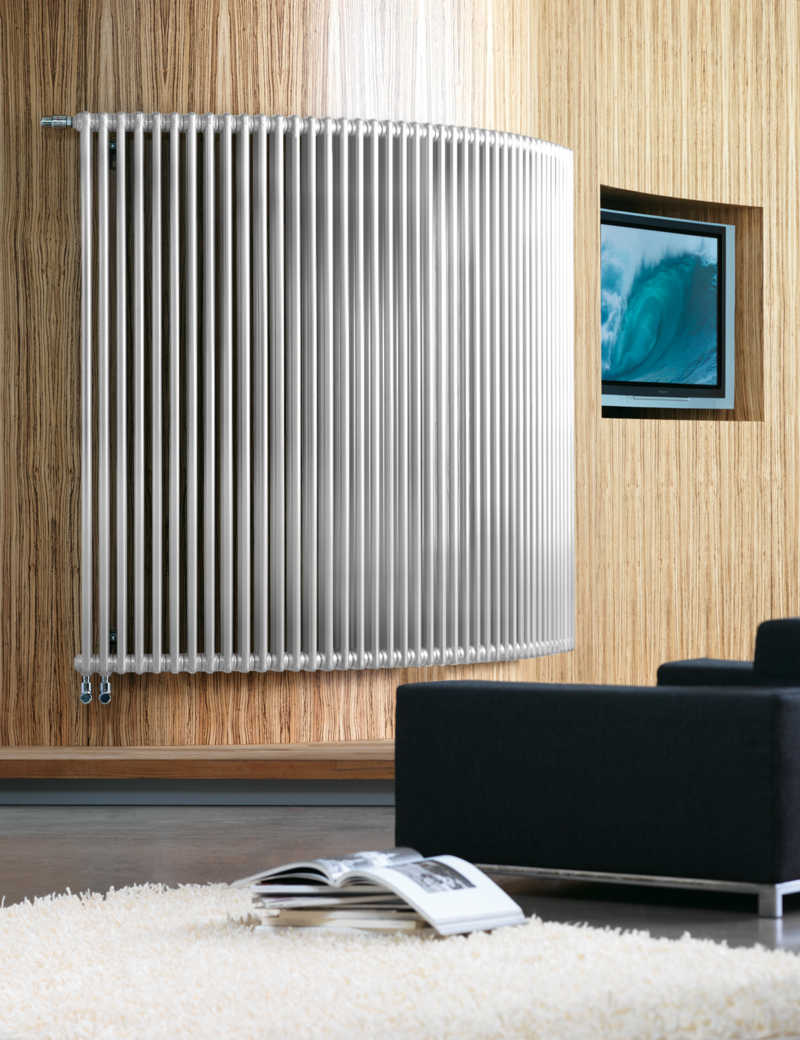

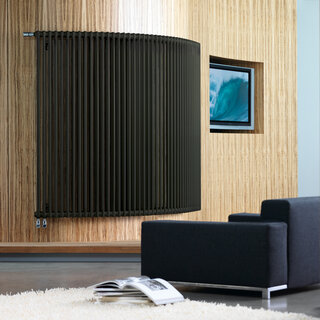

    • Special solutions support a wide range of application, such as curved or angled

    • Easy to clean and perfect for people suffering from allergies thanks to its smooth surface

    • Adaptable to the construction situation thanks to element construction

    • High level of heat capacity also for old buildings with a high heating load

    • Residue-free laser welding technology “LaZer made” guarantees maximum quality, high-end design and reliable operation of the heating system

    Colour System

    Zehnder Charleston - Hydronic operation
    Traffic White (9016* / RAL 9016)
    * These colours / surfaces are glossy, all others matt.
    Despite extreme care in the painting process of our radiators, slight colour deviations are possible, depending on the production series and compared to other colour carriers (ceramic, paper, metal, ...) as well as screen display.
    RAL and NCS are manufacturer's designations.

    Technical data

    Connection to hot water central heating system

    Model 2-column
    Technical data per element
    Model H L T Heat output
    75/65/20 °C 70/55/24 °C 55/45/20 °C 55/45/24 °C
    mm mm mm W W W W
    2026 177 46 62 14.5 10 7.6 6
    2026 260 46 62 21.1 15 11.1 9
    2030 300 46 62 23.6 17 12.5 10
    2035 350 46 62 27.5 20 14.6 12
    2040 400 46 62 31.2 23 16.5 14
    2045 450 46 62 34.9 25 18.5 16
    2050 500 46 62 38.4 28 20.2 17
    2055 550 46 62 41.9 30 22.1 19
    2060 600 46 62 45.3 33 23.9 20
    2075 750 46 62 55 40 29 24
    2090 900 46 62 63.9 46 33.7 28
    2100 1000 46 62 69.5 50 36.7 31
    2110 1100 46 62 74.7 54 39.4 33
    2120 1200 46 62 82.7 60 43.4 36
    2150 1500 46 62 104 74 54 45
    2180 1800 46 62 124 88 63.5 53
    2200 2000 46 62 138 98 70.6 59
    2220 2200 46 62 151 107 77.3 64
    2250 2500 46 62 171 122 88 73
    2280 2800 46 62 189 135 97.2 81
    2300 3000 46 62 201 143 104 86
    H = height, L = length, T = depth
    75/65/20 = Nominal heat output according to EN 442
    H = Nominal height, the exact height varies by a few mm in some models
    Model 3-column
    Technical data per element
    Model H L T Heat output
    75/65/20 °C 70/55/24 °C 55/45/20 °C 55/45/24 °C
    mm mm mm W W W W
    3026 185 46 100 20.1 14 10.5 9
    3026 260 46 100 27.9 20 14.7 12
    3030 300 46 100 32 23 16.9 14
    3035 350 46 100 37 27 19.5 16
    3040 400 46 100 41.9 30 22.1 19
    3045 450 46 100 46.8 34 24.7 21
    3050 500 46 100 51.6 37 27.2 23
    3055 550 46 100 56.3 41 29.5 25
    3060 600 46 100 60.9 44 32 27
    3075 750 46 100 74.3 53 39 33
    3090 900 46 100 87 62 45.4 38
    3100 1000 46 100 95.1 68 49.7 41
    3110 1100 46 100 103 74 53.5 45
    3120 1200 46 100 115 82 59.5 49
    3150 1500 46 100 140 99 71.7 59
    3180 1800 46 100 166 117 84.1 70
    3200 2000 46 100 183 129 92.7 77
    3220 2200 46 100 200 142 102 84
    3250 2500 46 100 225 159 115 95
    3280 2800 46 100 251 179 129 107
    3300 3000 46 100 269 192 139 115
    H = height, L = length, T = depth
    75/65/20 = Nominal heat output according to EN 442
    H = Nominal height, the exact height varies by a few mm in some models
    Model 4-column
    Technical data per element
    Model H L T Heat output
    75/65/20 °C 70/55/24 °C 55/45/20 °C 55/45/24 °C
    mm mm mm W W W W
    4026 200 46 136 28.4 20 14.9 12
    4026 260 46 136 36.5 26 19.2 16
    4030 300 46 136 41.9 30 22.1 19
    4035 350 46 136 48.5 35 25.6 21
    4040 400 46 136 54.9 40 28.8 24
    4045 450 46 136 61.3 44 32.2 27
    4050 500 46 136 67.6 49 35.5 30
    4055 550 46 136 73.7 53 38.7 32
    4060 600 46 136 79.8 57 41.7 35
    4075 750 46 136 97.4 70 50.9 42
    4090 900 46 136 114 82 59.2 49
    4100 1000 46 136 125 89 64.6 54
    4110 1100 46 136 135 96 69.8 58
    4120 1200 46 136 147 105 75.6 63
    4150 1500 46 136 180 128 92.1 76
    4180 1800 46 136 213 151 108 89
    4200 2000 46 136 234 166 119 99
    4220 2200 46 136 256 181 130 108
    4250 2500 46 136 289 205 148 123
    4280 2800 46 136 323 230 166 138
    4300 3000 46 136 345 246 178 147
    H = height, L = length, T = depth
    75/65/20 = Nominal heat output according to EN 442
    H = Nominal height, the exact height varies by a few mm in some models
    Model 5-column
    Technical data per element
    Model H L T Heat output
    75/65/20 °C 70/55/24 °C 55/45/20 °C 55/45/24 °C
    mm mm mm W W W W
    5026 200 46 173 35 25 18.4 15
    5026 260 46 173 45.1 33 23.8 20
    5030 300 46 173 51.7 37 27.3 23
    5035 350 46 173 59.9 43 31.4 26
    5040 400 46 173 67.9 49 35.6 30
    5045 450 46 173 75.8 55 39.8 33
    5050 500 46 173 83.5 60 43.6 36
    5055 550 46 173 91.1 65 47.6 40
    5060 600 46 173 98.6 71 51.5 43
    5075 750 46 173 120 86 62 52
    5090 900 46 173 141 100.3 72.5 60
    5100 1000 46 173 154 110 79.2 66
    5110 1100 46 173 167 119 85.5 71
    5120 1200 46 173 179 127 91.6 76
    5150 1500 46 173 219 155 112 92
    5180 1800 46 173 259 183 132 109
    5200 2000 46 173 285 202 145 120
    5220 2200 46 173 312 221 159 132
    5250 2500 46 173 352 250 180 150
    5280 2800 46 173 392 279 202 168
    5300 3000 46 173 420 299 216 180
    H = height, L = length, T = depth
    75/65/20 = Nominal heat output according to EN 442
    H = Nominal height, the exact height varies by a few mm in some models
    Model 6-column
    Technical data per element
    Model H L T Heat output
    75/65/20 °C 70/55/24 °C 55/45/20 °C 55/45/24 °C
    mm mm mm W W W W
    6026 200 46 210 41.5 30 21.6 33.7
    6026 260 46 210 53.5 38 27.9 43.5
    6030 300 46 210 61.3 44 32.2 49.9
    6035 350 46 210 71 51 37.3 57.8
    6040 400 46 210 80.5 58 42 65.4
    6045 450 46 210 89.8 64 46.9 73
    6050 500 46 210 99 71 51.4 80.4
    6055 550 46 210 108 77 56.1 87.7
    6060 600 46 210 117 84 60.5 94.8
    6075 750 46 210 143 102 73.6 116
    6090 900 46 210 167 119 85.5 135
    6100 1000 46 210 183 130 93.7 148
    6110 1100 46 210 198 140 101 160
    6120 1200 46 210 210 149 107 170
    6150 1500 46 210 256 181 130 207
    6180 1800 46 210 303 214 154 244
    6200 2000 46 210 334 237 170 270
    6220 2200 46 210 365 259 186 295
    6250 2500 46 210 412 292 210 333
    6280 2800 46 210 459 327 236 372
    6300 3000 46 210 491 350 253 398
    H = height, L = length, T = depth
    75/65/20 = Nominal heat output according to EN 442
    H = Nominal height, the exact height varies by a few mm in some models
