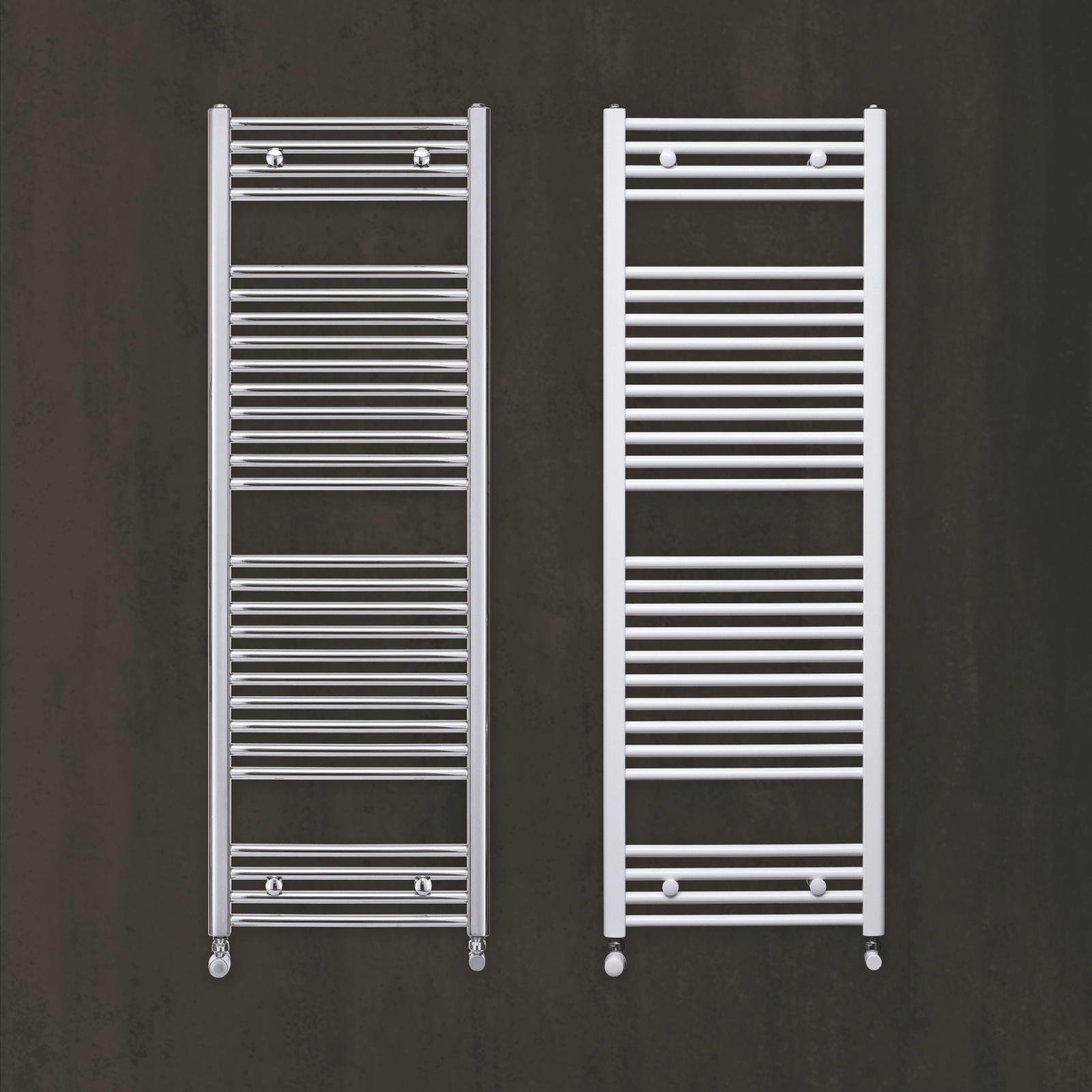

Cut-Out Zehnder Aura Decorative radiator Front view
Hydronic Radiators

Zehnder
Aura

Hydronic operation
    Get in touch

    Large spaces between the tubes and straight lines. Every detail of Zehnder Aura is perfectly designed with modern bathrooms in mind. The decorative radiator for hot water central heating is available in white and with a high-quality chrome finish.

    Show more

    Hydronic Radiators

    Zehnder Aura - Hydronic operation

    We also offer the following technologies

    Electric operation

    Benefits

    • D-profile header tube creates harmonious design

    • Ample spaces between tubes make cleaning easy

    • Generous spaces between the tubes convenient for hanging towels

    • Elegant design in high-quality chrome

    • Small radiator depth ideal for narrow bathrooms

    Show more

    Hydronic operation

    • Flexible installation through right and left connection options

    • Available with Zehnder Vario connection fitting for an unobtrusive and elegantly concealed connection system

    • Flexible installation due to 50mm centre connections

    Technical data

    Connection to hot water central heating system

    Chrome-plated version
    Model H L Heat output
    75/65/20 °C 70/55/24 °C 55/45/24 °C 55/45/20 °C
    mm mm Watts Watts Watts Watts
    Connection from bottom
    PBCN-060-040 607 400 150 104 63 79
    PBCN-080-040 775 400 186 132 80 97
    PBCN-120-040 1217 400 282 192 116 144
    PBCN-150-040 1469 400 340 238 144 180
    PBCN-180-040 1856 400 432 308 185 222
    PBCN-080-050 775 500 230 161 98 119
    PBCN-120-050 1217 500 330 232 140 169
    PBCN-150-050 1469 500 407 284 171 209
    PBCN-180-050 1856 500 513 360 217 262
    PBCN-080-060 775 600 271 189 116 145
    PBCN-120-060 1217 600 390 273 165 201
    PBCN-150-060 1469 600 481 338 204 248
    PBCN-180-060 1856 600 607 425 257 312
    PBCN-180-075 1856 750 745 523 318 387
    PBCN-060-080 607 800 280 197 121 149
    PBCN-060-100 607 1000 345 244 151 184
    H = height, L = length
    75/65/20 = Nominal heat output according to EN 442
    Painted version
    With 2-point connection left and right
    Model H L Heat output
    75/65/20 °C 70/55/24 °C 55/45/24 °C 55/45/20 °C
    mm mm Watts Watts Watts Watts
    PBN-080-040 775 400 287 208 128 153
    PBN-120-040 1217 400 427 310 191 228
    PBN-080-050 775 500 358 260 162 194
    PBN-120-050 1217 500 512 361 223 272
    PBN-150-050 1469 500 631 440 271 335
    PBN-180-050 1856 500 788 561 345 418
    PBN-080-060 775 600 418 298 187 228
    PBN-120-060 1217 600 598 421 260 317
    PBN-150-060 1469 600 740 517 319 392
    PBN-180-060 1856 600 662 667 407 490
    H = height, L = length
    75/65/20 = Nominal heat output according to EN 442
