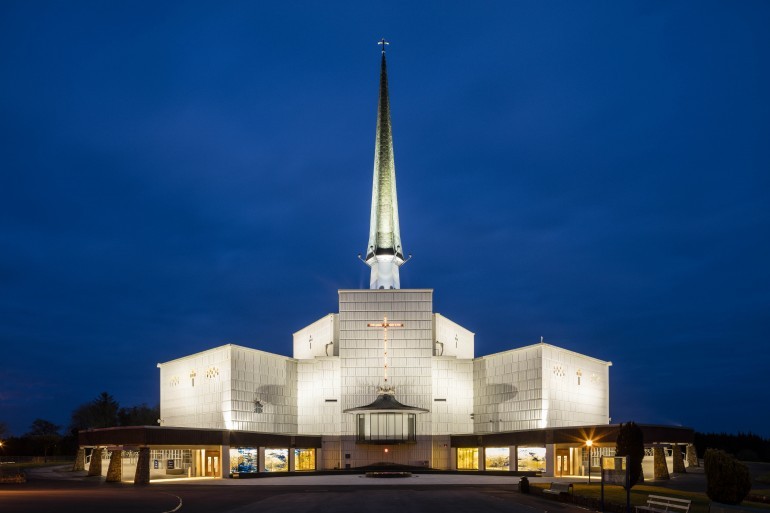

Knock Basilica in County Mayo, Ireland, serves the Roman Catholic Archdiocese of Tuam and forms part of the Knock Shrine grounds incorporating four other churches. M&E Consultants IN2 Engineering were hired in conjunction with A&D Wejchert Architects to design a heating system to control the indoor climate.

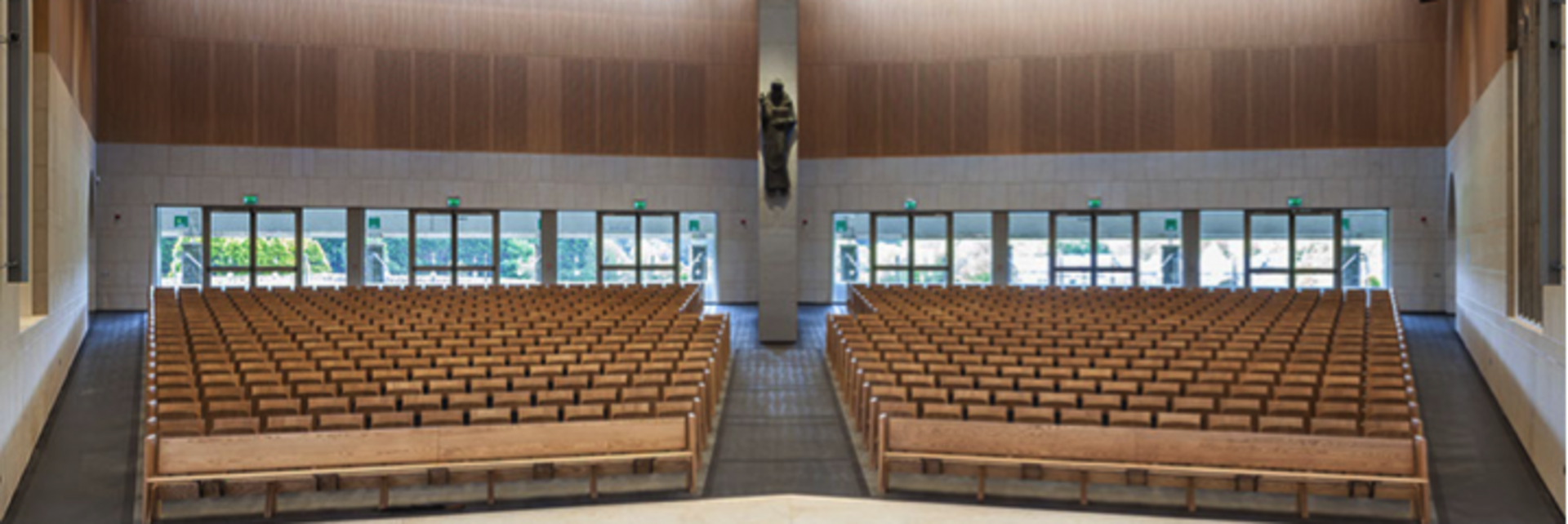

Knock Basilica can accommodate approximately 10,000 people, and is attended both by local parishioners and also a vast number of pilgrims and tourists who travel to the shrine grounds each year. Originally built in 1976, the Basilica features extremely high ceilings and a huge inside space, presenting a challenge in terms of heating the building. Particularly during the winter, cold discomfort issues were often experienced within the chapel areas by the parishioners and visitors.
|A solution was needed to heat the entire space, accommodating ceiling heights of up to 30m
|The design brief showed a number of curved false ceilings which presented its own challenges and complexities
|It was deemed uneconomical to reconfigure the existing air handling units, as the ceilings were so high and as warm air rises, this would result in high lifecycle and maintenance costs
|The existing system meant that air was being distributed ineffectively, making the temperature uncomfortable for occupants
|The Basilica often lay vacant for months and was only used intermittently, so an engineering solution was required which was responsive only when needed

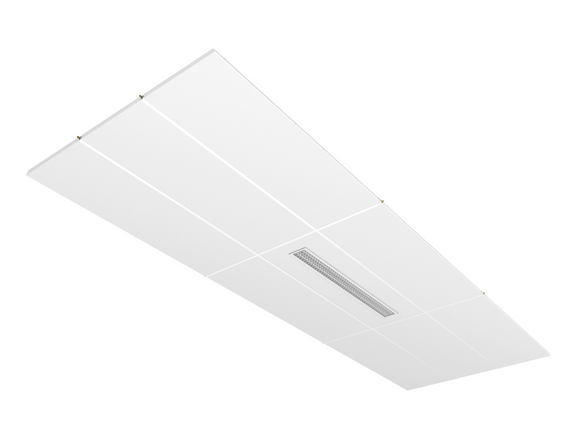

Tasked with finding a cost and energy efficient heating solution that could overcome these challenges, M&E consultants IN2 Engineering approached Versatile, Zehnder’s Irish distribution arm, to implement a Low Pressure Hot Water (LPHW) radiant solution, to be integrated in the ceiling to heat the space. LPHW Radiant panels were the preferred choice for this project as radiant panels do not heat the air, they heat the surfaces or objects they reflect on and in turn, those objects or surfaces act as radiant panels.

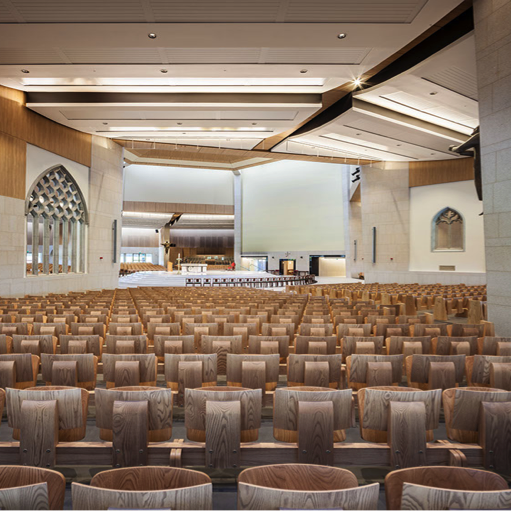

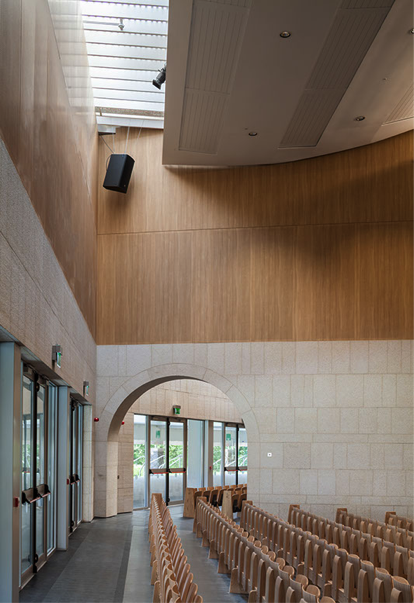

Zehnder and Versatile provided a solution which complemented the Basilica’s unique design, integrating radiant panels into the curved ceiling sails, contributing to the absorption of noise as well as heating the congregation space effectively and rapidly.
Radiant panels provide an effective and efficient way to heat large spaces such as sports halls and industrial units, which benefit from their quick response and highly efficient transfer of heat to the appropriate area. The radiant properties create comfort for the occupiers much more effectively and efficiently than heating large air volumes, via other forms of heating.
