Decorative Radiators

Zehnder
Stellar Spa

Hydronic operation

    Simply elegant. Simply ideal for minimalist bathrooms. Zehnder Stellar Spa combines minimalist design with maximum functionality. Large spaces between the tubes are the perfect space for hanging towels. Available in almost any colour and finish from the Zehnder colour chart.

    Benefits

    • Flexible installation through bracket's variable wall clearance

    • Corrosion-resistant materials also make it suitable for use with open heating systems

    • Generous spaces between the tubes convenient for hanging towels

    Hydronic operation

    • Replaceable flow and return makes installation flexible

    Colour System

    Zehnder Stellar Spa - Hydronic operation
    Traffic White (9016* / RAL 9016)
    * These colours / surfaces are glossy, all others matt.
    Despite extreme care in the painting process of our radiators, slight colour deviations are possible, depending on the production series and compared to other colour carriers (ceramic, paper, metal, ...) as well as screen display.
    RAL and NCS are manufacturer's designations.

    Technical data

    Connection to hot water central heating system

    Painted version
    Model H L Heat output
    75/65/20 °C 70/55/20 °C 55/45/20 °C 55/45/24 °C
    mm mm W W W W
    STGI-060-045 572 450 161 136 97 83
    STGI-060-100 572 1000 272 230 163 141
    STGI-080-030 788 300 171 145 102 89
    STGI-080-045 788 450 243 206 145 126
    STGI-080-050 788 500 240 203 144 124
    STGI-080-060 788 600 379 320 227 196
    STGI-120-030 1220 300 361 305 216 187
    STGI-120-045 1220 450 448 379 268 231
    STGI-120-050 1220 500 517 437 309 267
    STGI-120-060 1220 600 220 186 132 114
    STGI-150-045 1508 450 309 261 185 160
    STGI-150-060 1508 600 434 367 259 224
    STGI-170-045 1724 450 234 198 140 121
    STGI-170-050 1724 500 477 403 285 246

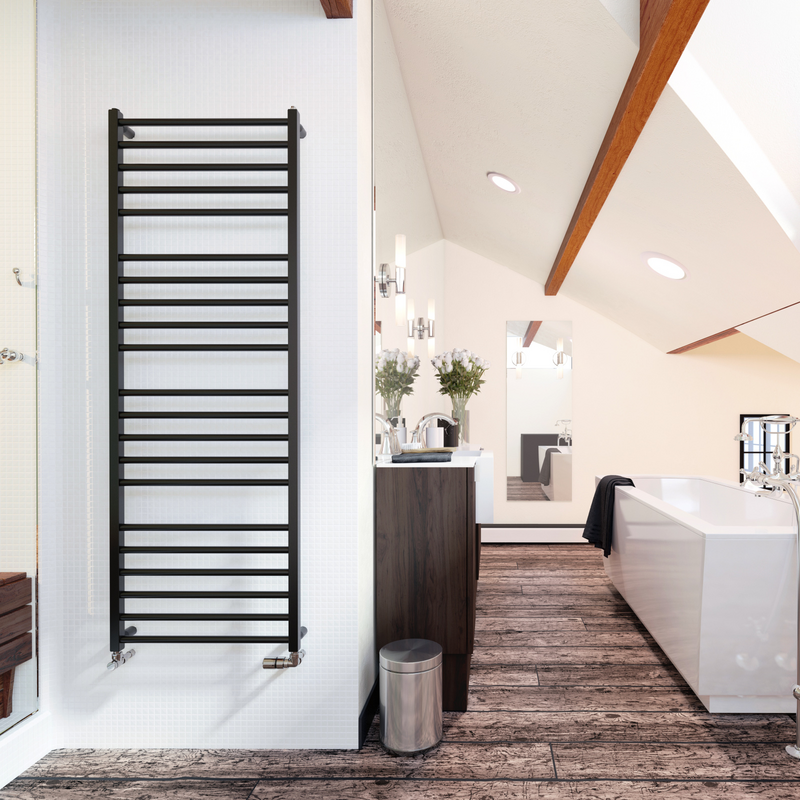

    STGI-170-060 1724 600 512 433 306 264
    H = height, L = length
    75/65/20 = Nominal heat output according to EN 442
    Stainless steel version
    Model H L Heat output
    75/65/20 °C 70/55/20 °C 55/45/20 °C 55/45/24 °C
    mm mm W W W W
    STGI-060-045-CF 572 450 219 185 131 113
    STGI-060-100-CF 572 1000 394 333 235 204
    STGI-080-030-CF 788 300 218 184 131 113
    STGI-080-045-CF 788 450 363 307 217 188
    STGI-080-050-CF 788 500 332 281 199 172
    STGI-080-060-CF 788 600 554 468 331 286
    STGI-120-030-CF 1220 300 556 470 332 287
    STGI-120-045-CF 1220 450 687 580 410 354
    STGI-120-050-CF 1220 500 791 668 472 408
    STGI-120-060-CF 1220 600 294 249 176 152
    STGI-150-045-CF 1508 450 448 379 268 231
    STGI-150-060-CF 1508 600 640 541 382 330
    STGI-170-045-CF 1724 450 353 298 211 182
    STGI-170-050-CF 1724 500 313 265 187 162
    STGI-170-060-CF 1724 600 704 595 420 363
    H = height, L = length
    75/65/20 = Nominal heat output according to EN 442
