Decorative Radiators

Zehnder
Ovida Bow

Hydronic operation

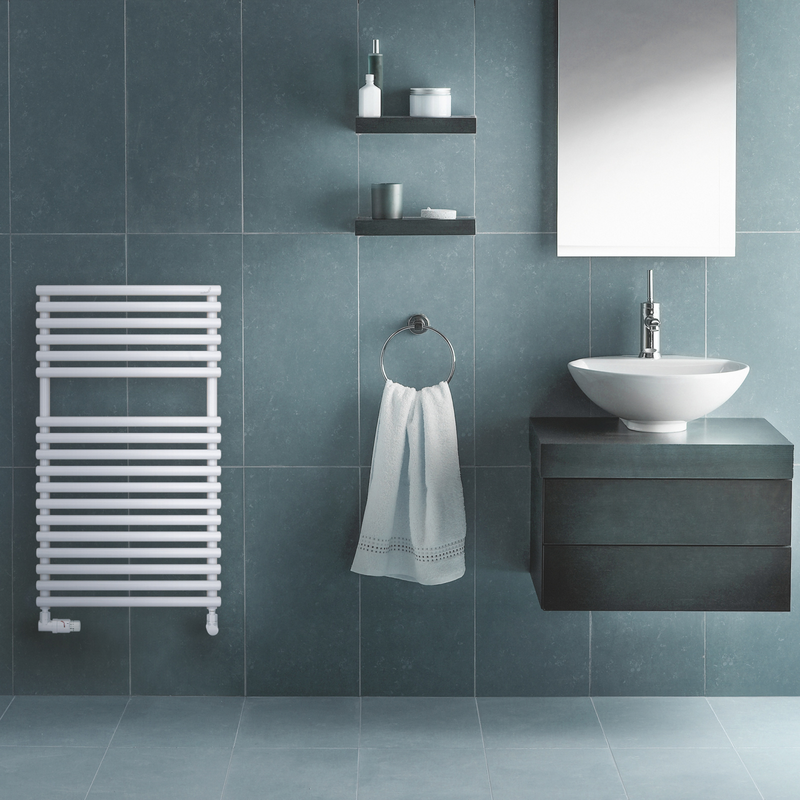

    The horizontal tubes lend Zehnder Ovida Bow a modern, lightweight appearance. Generous wall clearance between the sets of tubes creates space for hanging large, fluffy towels. Available in almost any colour and finish from the Zehnder colour chart.

    Benefits

    • Cross-connected tubes lend relaxed look
    • Ample spaces between the tubes make cleaning easy
    • Generous spaces between the tubes convenient for hanging towels
    • Convenient for hanging towels thanks to attractive curvature of the tubes
    • Brushed stainless steel version ensures resistance to corrosion

    Hydronic operation

    • Flexible installation through right and left connections
    • Flexible installation due to 50 mm centre connections
    • Available with Zehnder Vario fitting for an unobtrusive and elegantly hidden connection system

    Technical data

    Connection to hot water central heating system

    Chrome-plated version
    Model H L Heat output
    75/65/20 °C 70/55/24 °C 55/45/24 °C 55/45/20 °C
    mm mm Watts Watts Watts Watts
    OVBC-080-050 796 497 275 196 118 142
    OVBC-120-050 1196 497 397 284 172 207
    OVBC-150-050 1556 497 527 375 225 271
    OVBC-185-050 1876 497 631 451 273 328
    OVBC-080-060 796 597 323 231 139 167
    OVBC-120-060 1196 597 467 335 203 244
    OVBC-150-060 1556 597 624 444 267 321
    OVBC-185-060 1876 597 742 531 321 386
    OVBC-080-075 796 747 395 282 170 205
    OVBC-120-075 1196 747 571 410 250 299
    H = height, L = length
    75/65/20 = Nominal heat output according to EN 442
    Painted version
    Model H L Heat output
    75/65/20 °C 70/55/24 °C 55/45/24 °C 55/45/20 °C
    mm mm Watts Watts Watts Watts
    OVB-080-050 796 497 418 304 188 224
    OVB-120-050 1196 497 601 436 269 321
    OVB-150-050 1556 497 792 573 353 421
    OVB-185-050 1876 497 940 680 418 499
    OVB-080-060 796 597 492 358 222 265
    OVB-120-060 1196 597 709 515 319 380
    OVB-150-060 1556 597 935 678 419 499
    OVB-185-060 1876 597 1099 797 491 586
    OVB-080-075 796 747 603 440 274 326
    OVB-120-075 1196 747 870 634 395 469
    H = height, L = length
    75/65/20 = Nominal heat output according to EN 442
