Article no. OF100GIP

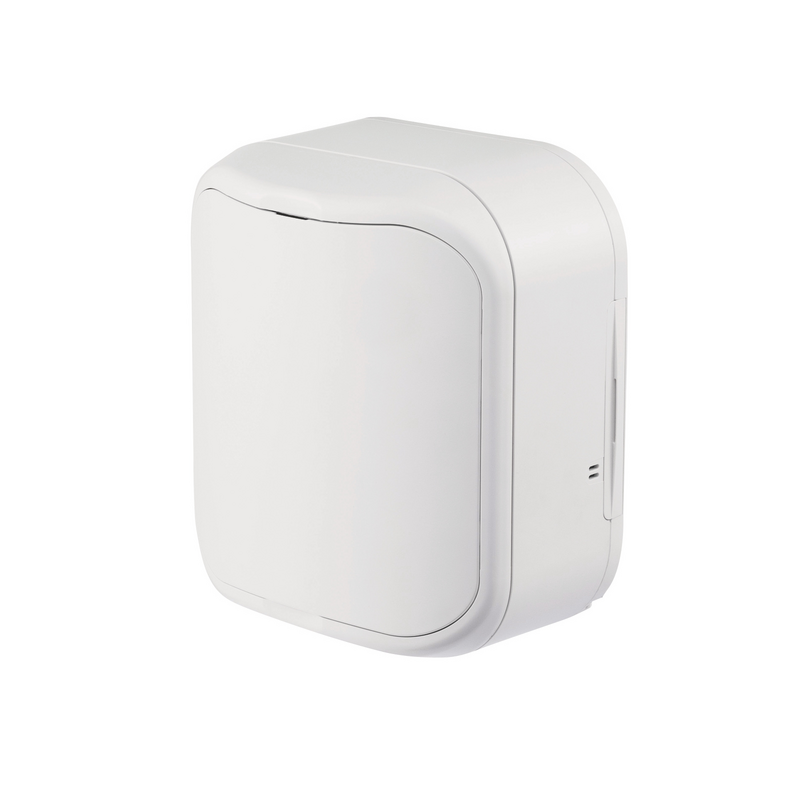

Omnique Low Energy Fan, with SMART Humidistat/Timer & SELV

    Data Table

    LabelValue
    Catalogue number OF100GIP
    GTIN 5030216396876
    Production model OF100GIP
    Suitable for electronic control
    Air volume at pressure 3 54 m³/h
    Air volume, unloaded 222 m³/h
    Max. air temperature 40 °C
    Impeller diameter 99 mm
    With non-return valve
    Width 196 mm
    Height 227 mm
    Louver None
    Connection voltage 230 V
    Depth 152.5 mm
    Max. air volume at 200 Pa 216 m³/h
    With thermal overload protection
    Connection voltage 230 V
    Electrical connection Cable
    Colour White
    Operation Pull cord
    Height 227 mm
    Hygrostat Fixed setting
    Pressure 2 100 Pa
    Air volume, unloaded 222 m³/h
    Connection voltage 230 V
    Timer Fixed setting
    Impeller diameter 99 mm
    Impeller diameter 99 mm
    Air volume at pressure 2 108 m³/h
    Max. air temperature 40 °C
    Max. air temperature 40 °C
    Housing material Plastic
    Operation Pull cord
    Degree of protection (IP) IPX4
    Air volume, unloaded 222 m³/h
    Depth 152.5 mm
    Colour White
    Air volume at pressure 2 108 m³/h
    Width 196 mm
    Pressure 3 150 Pa
    Suitable for frequency control
    Air volume at pressure 3 54 m³/h
    Electrical connection Cable
    Power consumption 1.1 W
    Pressure 2 100 Pa
    Pressure 3 150 Pa
    Degree of protection (IP) IPX4
    Suitable for transformer control
    Housing material Plastic
    Power consumption 1.1 W
