ComfoAir Q600, comfoairq600, ST, CAQ600ST, CAST
Article no. 471502026

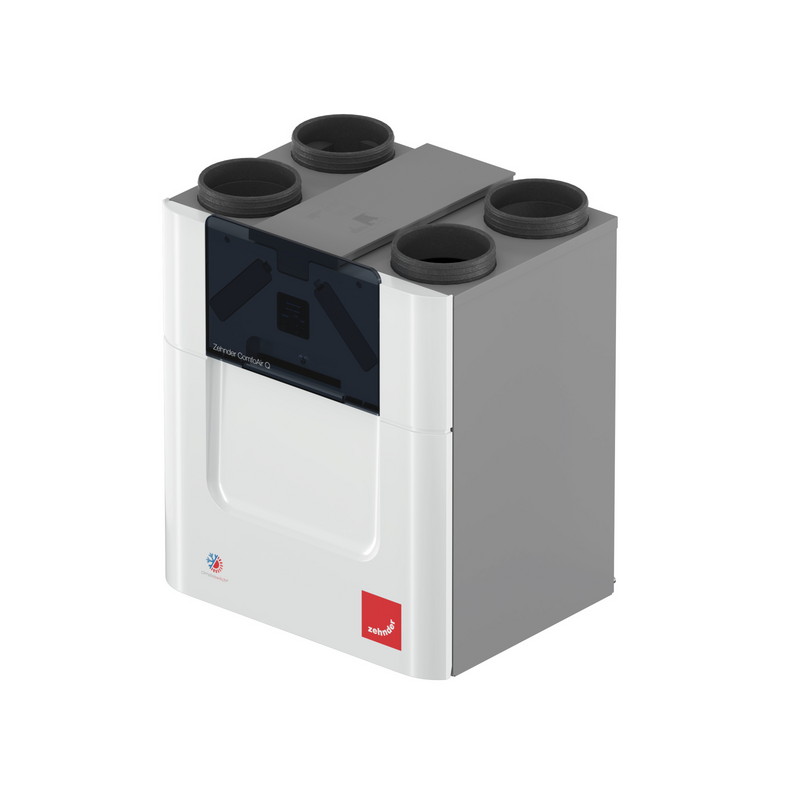

Zehnder ComfoAir Q600 with Enthalpy Exchanger

    Declaration

    ModelArticle no.Declaration of performance
    CAQ600-R-STT-ERV-GB - Zehnder ComfoAir Q600 with Enthalpy Exchanger471502026 1603044Q60110.pdf(48 KB)

    ControlEnergy classEnergy label
    Energy Label – Central demand control EU-label_CAQ600ERV_471502026_A.pdf(95 KB)
    Energy Label – Manual control GB-EU-label_CAQ600ERV_471502026_B.pdf(141 KB)
    Energy Label – Local demand control EU-label_CAQ600ERV_471502026_A.pdf(95 KB)
    Energy Label – Clock control GB-EU-label_CAQ600ERV_471502026_B.pdf(141 KB)

    Data Table

    LabelValue
    Catalogue number 471502026
    GTIN 8717573874465
    Production model COMFOAIR Q600 GB ST ERV
    Air flow rate 600 m³/h
    Amperage 2.7 A
    Supply voltage 230 V
    Frequency 50 Hz
    Noise/Sound Level 51
    Energy class I A
    Energy class II B
    With volatile organic compound (VOC) sensor
    Housing material Steel
    Material heat exchanger Other
    Suitable for wired control unit
    Suitable for (extra) carbon dioxide (CO2) sensor
    Connections outdoor air side Insert-/duct end
    With wired control unit
    Type of speed control Other
    Max. air volume at 100 Pa 600 m³/h
    Nominal duct diameter 180-200 mm
    Suitable for wall mounting
    With thermal overload protection
    Nominal duct diameter 180-200 mm
    Height 850 mm
    Type of motor Electronically commutated (EC)
    With bypass
    Supporting protocol for Modbus
    Material housing Steel coated
    Depth 570 mm
    Degree of protection (IP) IP40
    Efficiency supply filter according to ISO 16890-1:2016 65 %
    Suitable for floor mounting
    Weight 49 kg
    Width 725 mm
    Type of motor Electronically commutated (EC)
    Power consumption at max. air volume at 100 Pa 0.258 kW
    Width 725 mm
    Energy efficiency class A
    Suitable for zone controller
    With constant pressure control
    With heating element
    Suitable for (extra) humidity (RH) sensor
    Suitable for zone controller
    Thermal efficiency at 70 % air volume at 50 Pa 76 %
    Suitable for central heating boiler connection
    Efficiency supply filter according to ISO 16890-1:2016 65 %
    Roof connection, top
    Housing material quality Other
    Roof connection, side
    Frequency 50 Hz
    Suitable for ceiling mounting
    Left/right orientation reversible
    Number of phases 21
    Max. air volume at 200 Pa 600 m³/h
    Heat recovery by Cross-counter-flow unit
    Housing material quality Other
    Max. air volume at 150 Pa 600 m³/h
    Max. air volume at 50 Pa 420 m³/h
    Residential connection, left side
    Electrical connection Connecting cable with plug with protective contact
    Residential connection, underside
    Suitable for wired control unit
    Residential connection, top
    Suitable for extra VOC sensor
    Residential connection, right side
    With heating element
    Suitable for wireless remote control
    Type of frost protection Other
    With internal carbon dioxide (CO2) sensor
    Width 725 mm
    Nominal duct diameter 180-200 mm
    Cos phi according to EPN standard 0.54
    Exhaust filter according to ISO 16890-1:2016 ISO Coarse
    With digital display
    Supply filter according to ISO 16890-1:2016 ISO Coarse
    Depth 570 mm
    With internal humidity (RH) sensor
    Height 850 mm
    Fuse size of the device 16 A
    With zone controller
    Thermal efficiency according to EPN standard 76 %
    Height 850 mm
    Power input according to EPN standard 0.174 kW
    Weight 49 kg/100 m
    Depth 570 mm
    With bypass
    Suitable for (extra) carbon dioxide (CO2) sensor
    Suitable for wall mounting
    Thermal efficiency at 70 % air volume at 50 Pa 76 %
    With thermal overload protection
    Frequency 50 Hz
    Suitable for floor mounting
    Efficiency exhaust filter according to ISO 16890-1:2016 65 %
    Suitable for central heating boiler connection
    Operation by app
    Max. air volume at 100 Pa 600 m³/h
    Heat recovery by Cross-counter-flow unit
    Suitable for wireless remote control
    Voltage 230 V
    With digital display
    Suitable for ceiling mounting
    Residential connection, left side
    Left/right orientation reversible
    Residential connection, underside
    Power consumption at max. air volume at 100 Pa 0.258 kW
    Residential connection, top
    Energy efficiency class (1253/2014/EU) A
    Residential connection, right side
    Electrical connection Connecting cord with plug with protective contact
    Roof connection, top
    Housing material Steel
    Roof connection, side
    Suitable for extra VOC sensor
    Max. air volume at 150 Pa 600 m³/h
    Energy efficiency class according to 1253/2014/EU A
    Max. air volume at 200 Pa 600 m³/h
    Max. air volume at 50 Pa 420 m³/h
    Supply filter according to ISO 16890-1:2016 ISO Coarse
    Electrical connection Connecting cord with plug with protective contact
    Voltage 230 V
    With internal carbon dioxide (CO2) sensor
    Exhaust filter according to ISO 16890-1:2016 ISO Coarse
    Type of motor Electronically commutated (EC)
    Weight 49 kg
    With zone controller
    With internal humidity (RH) sensor
    With wired control unit
    Suitable for (extra) humidity (RH) sensor
    With volatile organic compound (VOC) sensor
    Frequency 50 Hz
    Degree of protection (IP) IP40
    With constant pressure control
    Fuse size of the device 16 A
    With constant volume flow control
    Supporting protocol for Modbus
    Type of frost protection Other
    With constant volume flow control
    Connections residential side Insert-/duct end
    Connections residential side Insert-/duct end
    Connections outdoor air side Insert-/duct end
    Voltage 230 V
    Efficiency exhaust filter according to ISO 16890-1:2016 65 %
    Number of phases 1
