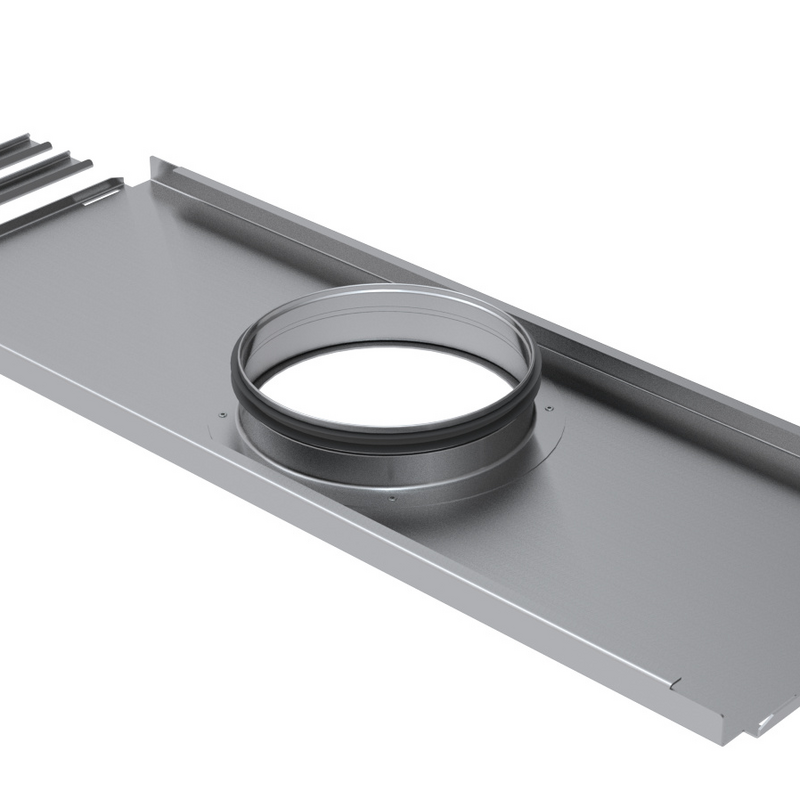

ComfoWell end plate CW625 DN160, 625 mm x 230 mm x 40 mm
Article no. 990323637

Zehnder ComfoWell end plate, CW-P 625, ø 160mm

    Data Table

    LabelValue
    Catalogue number 990323637
    GTIN 7630015273316
    Air supply
    Connection main duct Other
    Connection branches Insert end
    Equivalent duct diameter, branches 160 mm
    Surface protection Sendzimir galvanised
    Air extraction
    Connection, main duct Insert end
    Surface protection Sendzimir galvanized
    Max. air volume 660 m³/h
    Material Steel
    Type of housing Part with branches air duct
    Material quality Other
    Height 44 mm
    Type of housing Part with branches air duct
    Nominal duct diameter, branches 160 mm
    Max. air volume 660 m³/h
    Height 39.3 mm
    Bottom connection
    Width 625 mm
    Shape of branches Round air duct
    Nominal duct diameter, branches 160 mm
    Surface protection Sendzimir galvanized
    Bottom connection
    Connection branches Insert end
    Air extraction
    Equivalent duct diameter, branches 160 mm
    Material Steel
    Nominal duct diameter, main duct Other
    Width 230 mm
    Shape of branches Round air duct
    Material Steel
    Type of housing Part with main air duct
    Connection main duct Other
    Embeddable in concrete
    Material quality Other
    Width 230 mm
    Air supply
    Material quality Other
    Length 641 mm
    Height 39.3 mm
    Nominal duct diameter, main duct Other
    Embeddable in concrete
    Length 230 mm
    Nominal duct diameter, branches 160 mm
    Length 641 mm
