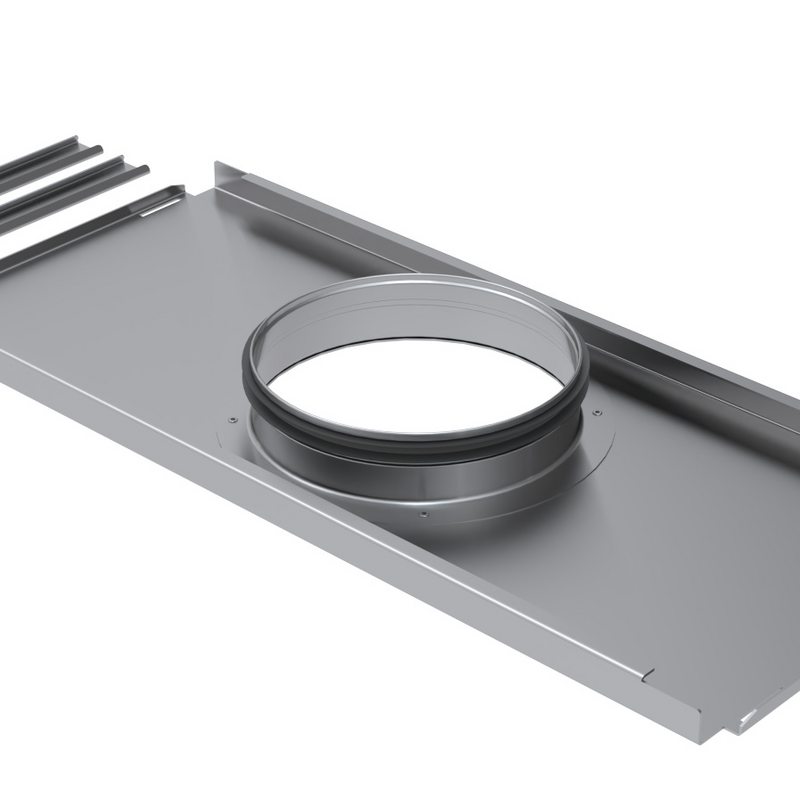

Zehnder ComfoWell end plate, CW-P 520, ø 160mm

Data Table

Label	Value
Catalogue number	990323564
GTIN	7640138031632
Air extraction
Material	Steel
Length	230 mm
Bottom connection
Width	230 mm
Height	39.3 mm
Connection, main duct	Insert end
Type of housing	Part with main air duct
Max. air volume	550 m³/h
Material	Steel
Type of housing	Part with branches air duct
Material quality	Other
Height	44 mm
Surface protection	Sendzimir galvanized
Nominal duct diameter, main duct	Other
Embeddable in concrete
Max. air volume	550 m³/h
Material quality	Other
Width	520 mm
Connection main duct	Other
Nominal duct diameter, branches	160 mm
Surface protection	Sendzimir galvanized
Air supply
Connection branches	Insert end
Nominal duct diameter, branches	160 mm
Length	536 mm
