990322021, CK 300 twin duct bend, BEN-CK300x90-HOR, SAP Code: 18501389, OnFloor (flat oval pipe)
Article no. 990322021

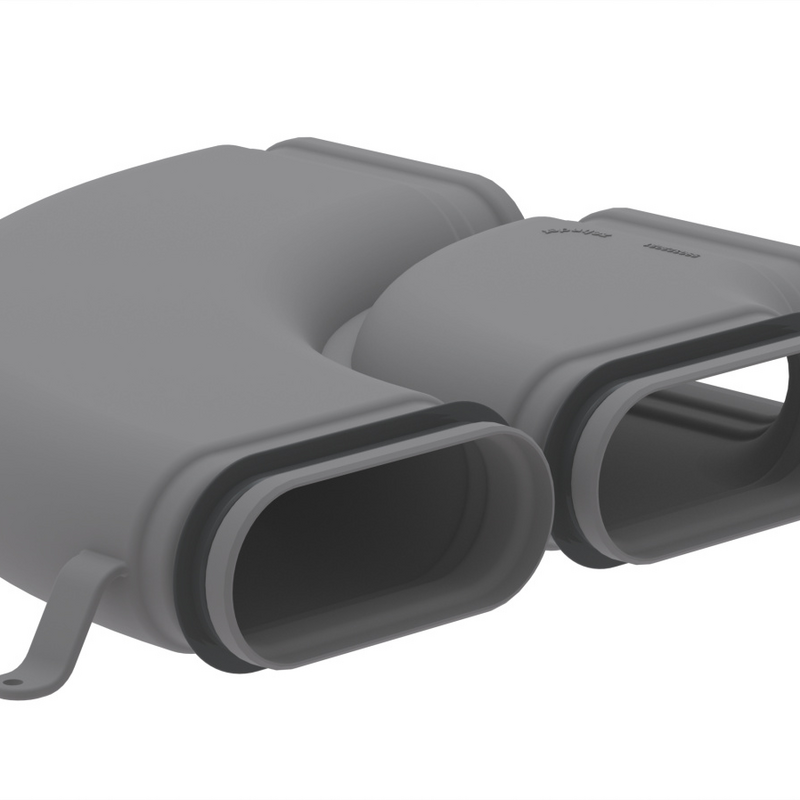

Zehnder CK300 rigid twin duct, horizontal 90° bend

    Get in touch

    Data Table

    LabelValue
    Catalogue number990322021
    GTIN7640129217601
    With pre-mounted seal
    Surface protection internalUntreated
    With push-on profile
    Nominal duct width326 mm
    Connection 2Insert end
    Nominal duct width326 mm
    Outside colourGrey
    Anti-bacterial model
    Wall thickness duct2.5 mm
    Material quality ductPolyethylene (PE)
    Embeddable in concrete
    Connection 1Insert end
    Nominal duct height70 mm
    Change of directionHorizontal
    Connection 2Insert end
    Bend angle90 °
    Nominal duct height70 mm
    Air tightness class according to EN 1751None
    Material ductPlastic
    Equivalent duct diameter160 mm
    Wall thickness duct2.5 mm
    Perforated inner wall
    Perforated inner wall
    Outside colourGrey
    Air tightness class according to EN 1751None
    With push-on clamp
    Outer surface protectionUntreated
    With push-on profile
    Change of directionHorizontal
    Working length connection 1175 mm
    Insert length40 mm
    With pre-mounted seal
    Working length connection 2175 mm
    Connection 1Insert end
    ModelUninsulated duct
    Production methodOther
    Insert length40 mm
    Bend modelSmooth bend
    Equivalent duct diameter160 mm
    Outer surface protectionUntreated
    Inner surface protectionUntreated
    Production methodOther
    Bend angle90 °
    ModelUninsulated duct
    Material quality ductPolyethylene (PE)
    Working length connection 1175 mm
    With push-on clamp
    Working length connection 2175 mm
    Bend angle90 °
    Bend modelSmooth bend
    Embeddable in concrete
    Material ductPlastic
