Decorative Radiators

Zehnder
Vitalo Bar

Hydronic operation

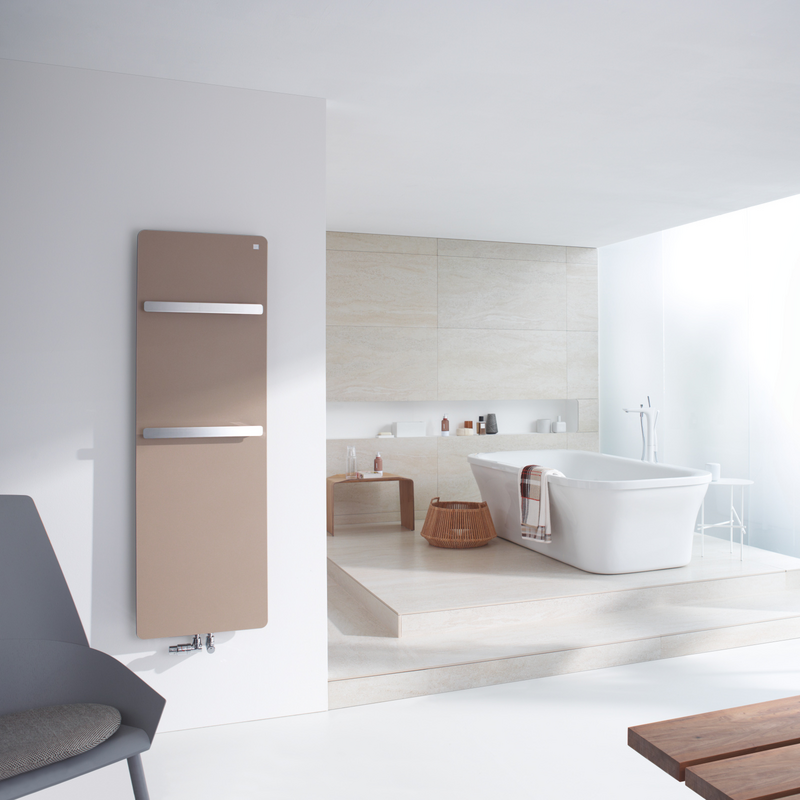

    Rectangle and circle: Geometry can be so beautiful. Beautifully simple and energy-efficient. Zehnder Vitalo Bar proves the point. Top-quality surfaces make a maximum statement in a minimalist setting. Available in almost any colour and finish from the Zehnder colour chart. Also in natural anodised aluminium. One or two towel rails, depending on the height, ensure you have beautifully warm hand and bath towels.

    Decorative Radiators

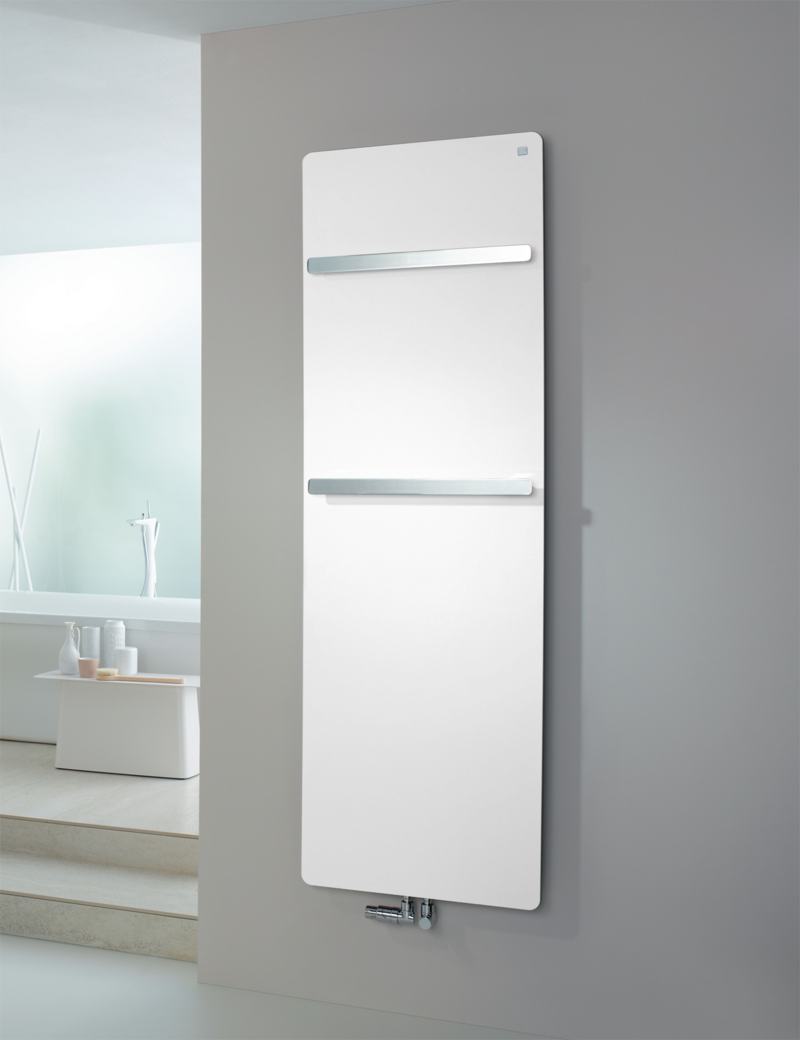

    Zehnder Vitalo Bar - Hydronic operation

    We also offer the following technologies

    Electric operation

    Benefits

    • Innovative technology guarantees efficient heating
    • Extremely flat design creates an aesthetic accent
    • Low total weight facilitates transport and installation
    • Striking shape, distinctive design
    • Chrome towel rail, accessible from one side, makes it very convenient for hanging and sliding towels in from the side
    • Smooth surface makes for easy cleaning
    • High proportion of radiation ensures comfort
    • Short response time means rooms can be heated up rapidly

    Colour System

    Zehnder Vitalo Bar - Hydronic operation
    Traffic White (9016* / RAL 9016)
    * These colours / surfaces are glossy, all others matt.
    Despite extreme care in the painting process of our radiators, slight colour deviations are possible, depending on the production series and compared to other colour carriers (ceramic, paper, metal, ...) as well as screen display.
    RAL and NCS are manufacturer's designations.

    Technical data

    Connection to hot water central heating system

    Painted version
    With chrome-plated towel rail
    Model H L LB Heat output
    75/65/20 °C 70/55/24 °C 55/45/24 °C 55/45/20 °C
    mm mm mm Watts Watts Watts Watts
    Centre connection 50 mm
    VIP-125-040 1250 400 350 465 334 207 248
    VIP-160-040 1570 400 350 546 394 246 294
    VIP-190-040 1890 400 350 673 485 302 360
    VIP-125-050 1250 500 450 555 399 247 295
    VIP-160-050 1570 500 450 676 487 303 362
    VIP-190-050 1890 500 450 834 601 374 446
    VIP-125-060 1250 600 550 641 462 287 343
    VIP-160-060 1570 600 550 806 577 359 429
    VIP-190-060 1890 600 550 994 716 446 532
    H = height, L = length, LB = towel rail length
    75/65/20 = Nominal heat output according to EN 442
