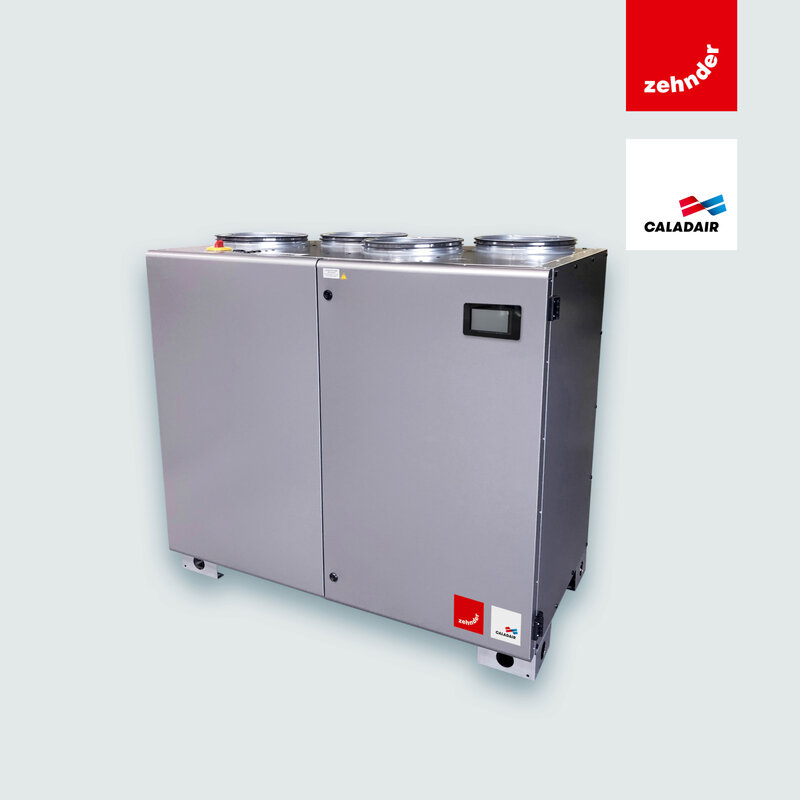

    The compact ventilation solutions in the Zehnder Silvertop product range are equipped with highly efficient heat recovery and are suitable for installation in various properties such as offices, schools, nurseries, shopping centres, apartment buildings, restaurants, etc. Thanks to their top-mounted duct connections, the Zehnder Silvertop ventilation units are also ideal for installation in confined spaces. The pre-installed, pre-configured ventilation unit allows for easy plug-and-play installation, and the control unit mounted on the ventilation unit ensures easy installation, configuration and operation of the unit. The Zehnder Silvertop product range is available in 6 sizes and with 5 different operating modes.

    Show more

    Benefits

    • There are 5 different unit sizes available with volume flows from 100 m³/h to 5,500 m³/h. This means that the optimum unit size can always be selected.
    • Thanks to the arrangement of the duct connections on the top, installation in plant room is feasible without any problems. The Zehnder Silvertop ventilation units can also be easily integrated in hallways, storage rooms, warehouse areas, cloakrooms, etc. due to their small footprint.
    • Different climate comfort options can be configured, such as electric pre-heating coil and/ or optionally electric or water-based post-heating coils. In addition, external heating coils and cooling coils are available. The ventilation unit can therefore be specifically adapted to the requirements of the building project.
    • Aluminium counterflow heat exchangers with high thermal efficiency up to 90 % (EN308) ensure extremely efficient system operation.
    • Direct-driven, backwards-curved fans with very low energy consumption, equipped with EC motors and overheating protection, allow for affordable and safe operation.
    • Optimum air quality thanks to factory-installed high-quality filters (outdoor air ePM1 55 % (F7) / extract air ePM10 50 % (M5)). Second filter stage possible as an option in the outdoor air.
    • A number of interfaces are already factory-fitted as standard, enabling flexible integration into the building management system (Modbus, BACnet and Web).
    • Low-noise operation thanks to double-walled, insulated panels with high-density thermal insulation (mineral wool 50 mm for models 15 to 52). Unit class T2 according to EN1886 and leakage classification L1.
    • Fully certified as the entire Zehnder Silvertop unit series is Eurovent-certified and complies with the ErP2018 requirements.
