Zehnder heating and cooling ceiling systems
A pleasant climate from above.

Heating and Cooling Ceiling Systems

Products

Principles of Radiant Heating

Ceiling sails provide the perfect combination of heating and cooling, whilst offering a aesthertically clean and space saving solution.

Radiant ceiling panels are the ideal heating solution when a uniform, balanced and comfortable temperature is required.

The most important consideration when choosing a heating and cooling system is energy efficiency. Zehnder radiant heating and cooling systems can save more than 40% in energy compared to other systems. And all with a pleasant indoor climate.

The following visuals compare the energy levels of radiant systems and air heating systems.

With Zehnder ZBN radiant panels, you can achieve energy savings of over 40% through efficient heating and cooling of buildings compared with other methods of heating buildings.

Zehnder radiant ceiling panels work on a fundamental natural principle that is identical to the way in which the sun produces warmth.
We spend almost three quarters of our lives indoors: at home, at work, during our leisure time. The indoor climate (temperature and air quality) is itself a big influence on our general wellbeing.

Operating principle

Functional principle heating

Functional principle cooling

Zehnder Nestsystems radiant conditioning

Zehnder Nestsystems radiant conditioning comprise of a network of panels which boast dual heating and cooling functionality, rapid response times, exceptional controllability and superior energy efficiency.

Zehnder ZIP

Zehnder ZIP radiant heating and cooling panels offer dual functionality, ease of use and energy saving capabilities

Applications

An energy-saving heating system is essential for production halls and warehouses. The radiant ceiling panels are just the right heating system for these areas. It is important, particularly in a production hall, to create a comfortable climate for the workers and also to be able to adapt the hall to production requirements at any time. The arrangement of the radiant panels on the ceiling makes it easy to reconfigure the halls later on. Radiant ceiling panels are also ideal for high-bay warehouses. They are installed on the ceiling along the aisles and warm the whole hall evenly.

  • Comfort
  • Energy efficient
  • No dust dispersal
  • No maintenance
  • Acoustic absorption
  • Free up floor and wall space
  • Can be used for all hall heights
  • Easy to install
  • Can also be used in rooms at risk of explosion

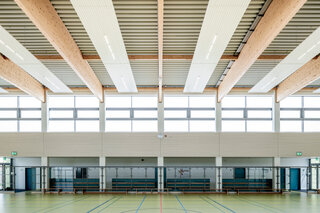

Apart from heating the entire hall evenly, comfort is one of the most important considerations that a sports hall heating system has to fulfil. The radiant ceiling panel is ideally suited to this task. What's more, the radiant panel is extremely energy efficient and can quickly bring the temperature inside the hall to the desired level, thanks to its low storage mass.

  • Comfort
  • Energy efficient
  • No maintenance
  • Acoustic absorption
  • Free up valuable floor and wall space
  • Can be used for all hall heights (up to 30m)
  • Radiant ceiling panels are resistant to ball strike
  • Ball deflector grids for radiant ceiling panels
  • Lighting can be integrated in the radiant panel
  • Suitable for all floor structures
  • Quick reaction time
  • Very hygienic, as no dust dispersal

In order to achieve a comfortable climate, an energy-saving system such as radiant ceiling panels, can be used in showrooms and exhibition rooms. However, this is by no means the only advantage that the radiant panel has to offer. Unlike conventional air heaters, which stir up a lot of dust in the room due to the air eddies they create, the radiant principle of the radiant ceiling panel allows it to work cleanly, without dispersing dust. This considerably reduces the frequency with which rooms and products have to be cleaned.

  • Comfort
  • Energy efficient
  • No maintenance
  • Free up valuable floor and wall space
  • Can be used for all hall heights (up to 30m)
  • Acoustic absorption
  • Extended cleaning intervals
  • Hygienic, as no dust dispersal
  • Lighting can be integrated in the ceiling panels

Employee performance is one of the most important considerations in an office. To keep this as efficient as possible, it is especially important for people to feel good in these spaces. This level of comfort can only be achieved by conditioning the air in the room with a cooling and heating ceiling. The radiant ceiling panel not only works silently, but can also significantly reduce noise, e.g. caused by telephone conversations.

  • Comfort
  • Energy efficient
  • No maintenance
  • Free up valuable floor and wall space
  • Even distribution of temperature
  • Acoustic absorption
  • Extended cleaning intervals
  • Hygienic, as no dust dispersal
  • Integration of lighting, air vents, loudspeakers and smoke alarms possible
  • Various ceiling types can be used, e.g. grid ceiling, plasterboard ceiling or metallic ceiling
  • Various ceiling designs are possible, e.g. individual sails, strips or closed ceilings
  • Silent system

The cooling and heating ceiling creates an even temperature throughout the room and can be felt wherever you are sitting. It is important to create a comfortable indoor climate in order for pupils and teachers to concentrate better. The radiant ceiling panel also offers ideal energy consumption and easy maintenance. Due to the low storage mass, the panels can precisely regulate the room temperature even with continually changing internal loads such as the additional heat given off from computers and people, thereby saving precious energy. Maintenance is also simple, as the ceiling is maintenance-free and protected against damage because of where it is installed.

  • Comfort
  • Energy efficient
  • No maintenance
  • Floor and walls freely usable
  • Even distribution of temperature
  • Acoustic absorption
  • Extended cleaning intervals within the rooms and very hygienic, as no dust swirl
  • Integration of lighting, air vents, loudspeakers, smoke alarms
  • Various ceiling types can be used, e.g. grid ceiling, plasterboard ceiling or metallic ceiling
  • No damage possible

Two aspects have to be taken into consideration in hospitals. Firstly, the comfort of the patients and secondly, the hygiene in the individual rooms. Two claims that are positively influenced by the cooling and heating ceiling. Due to the high radiant component and low air movement in the room, patients perceive the cooling and heating provided by such a system as particularly comfortable. There are no unpleasant draughts and no irritating noises as is normally the case with pure air systems. The radiant principle of the cooling and heating ceiling minimises the movement of air in the room as well as the spread of dust, viruses and bacteria.

  • Comfort
  • Energy efficient
  • No maintenance
  • Free up valuable floor and wall space
  • Even distribution of temperature
  • Acoustic absorption
  • Extended cleaning intervals
  • Very hygienic, as no dust dospersal
  • Integration of lighting, air vents, loudspeakers and smoke alarms possible without problem
  • Various ceiling types can be used, e.g. grid ceiling, plasterboard ceiling or metallic ceiling
  • No damage possible, as system installed on the ceiling
